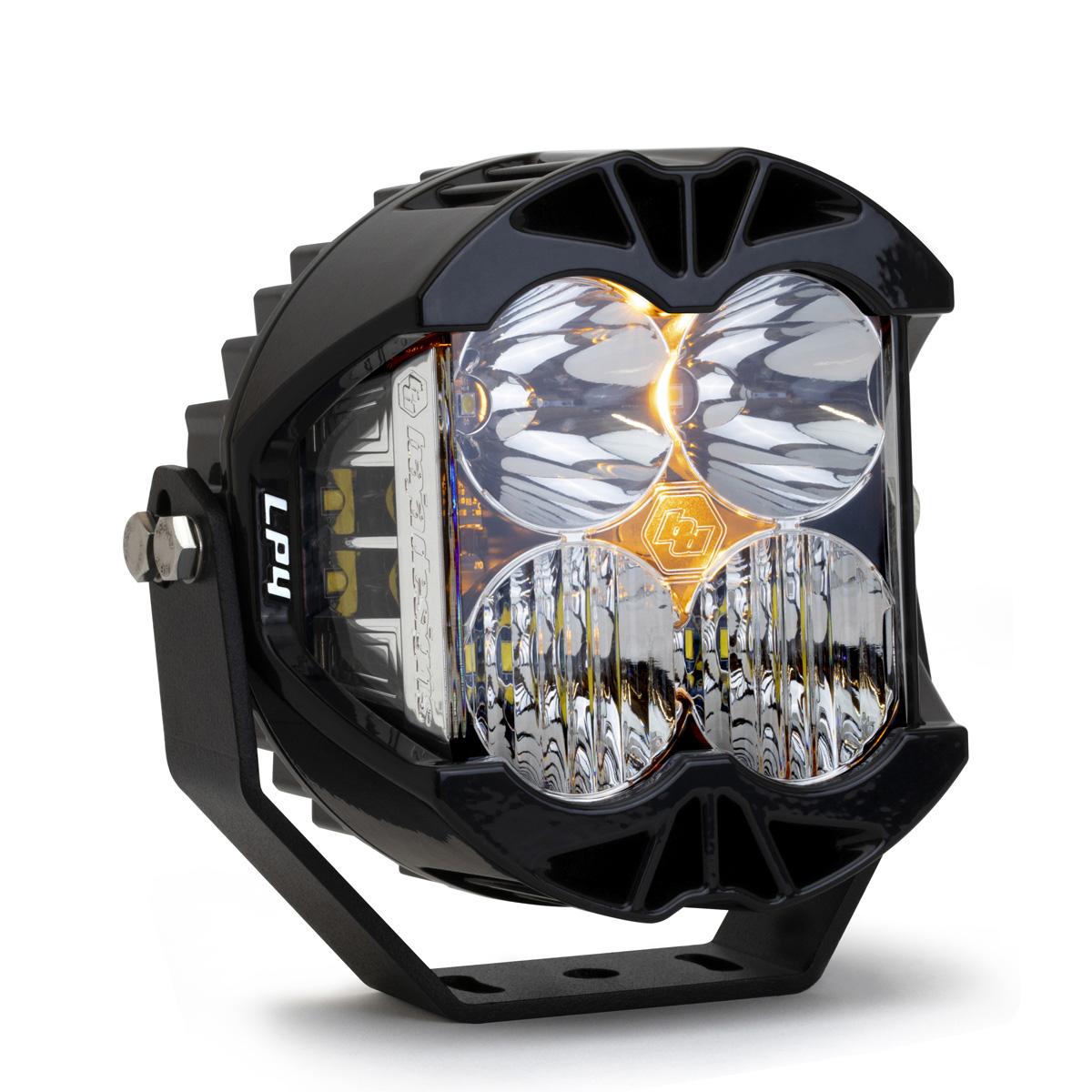

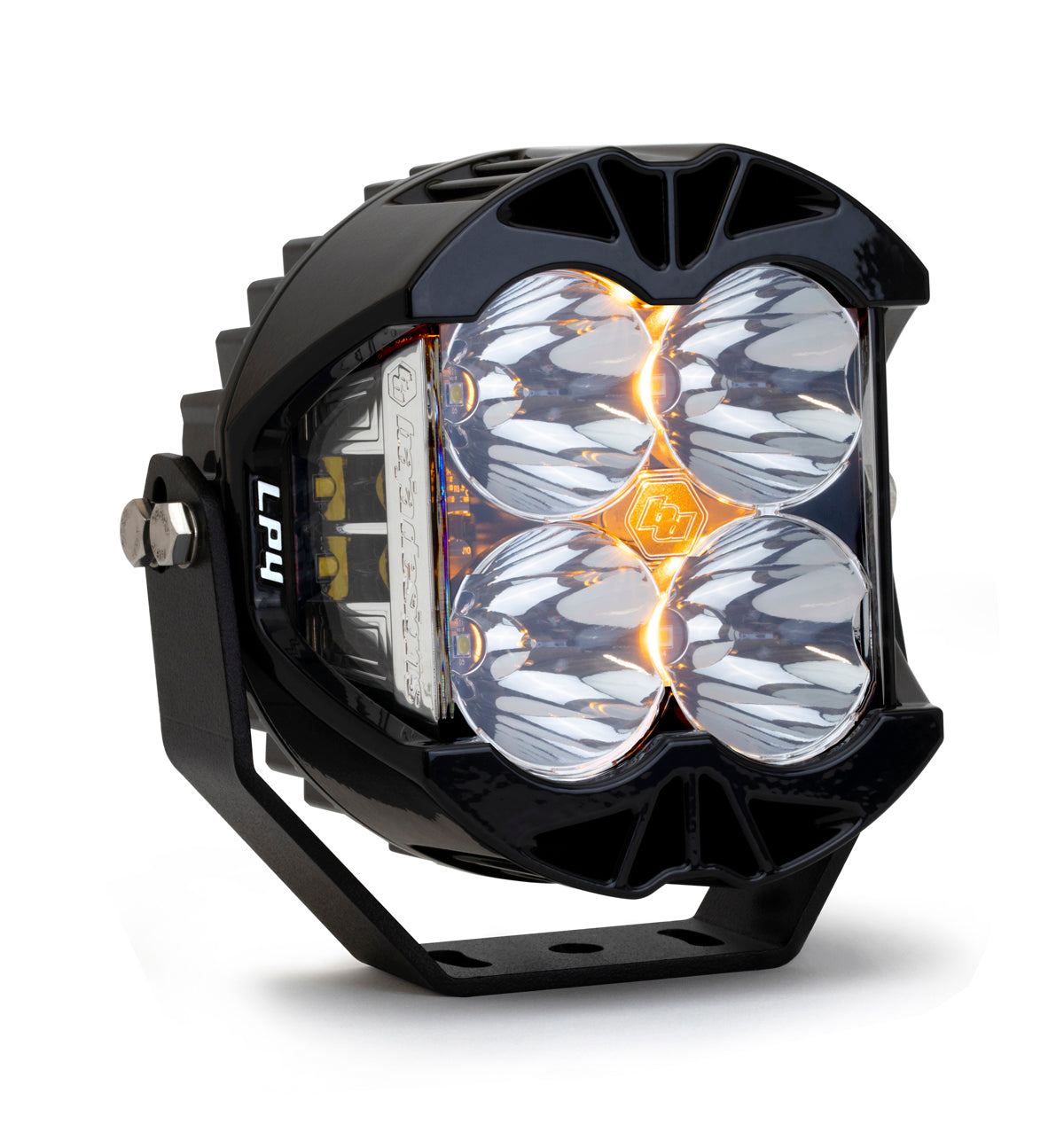

LP4 Pro LED Auxiliary Light Pod - Universal

LP4 Pro LED Auxiliary Light Pod - Universal

SKU: 290001

$437.95
$437.95 $437.95
Shipping calculated at checkout.

23 in stock

Expected delivery date:
03 Sep Usually ready in 2-3 days.

Warranty Information

Product Details

Description

The LP4 is the smallest variant in the LP lineup but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200 degree spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.

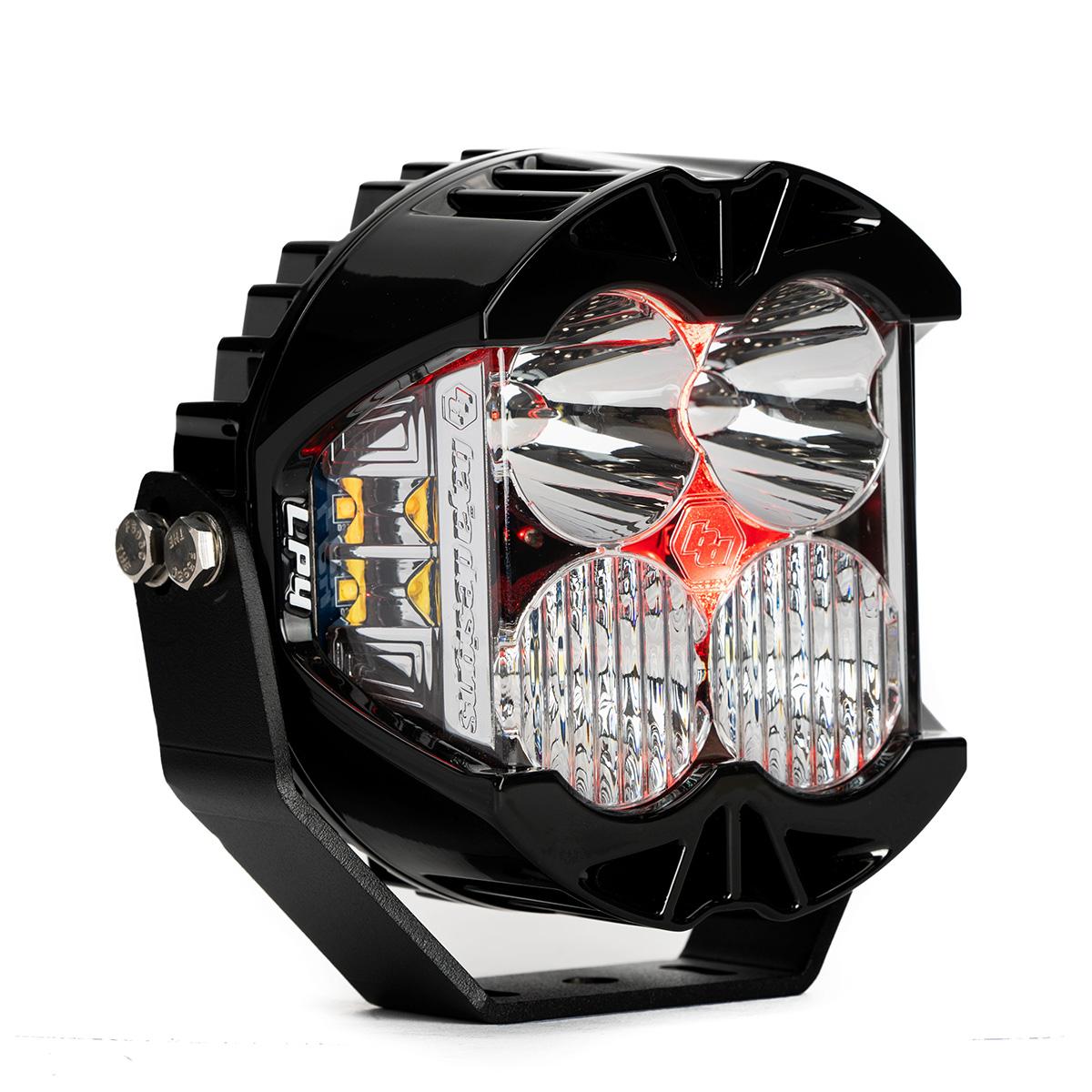

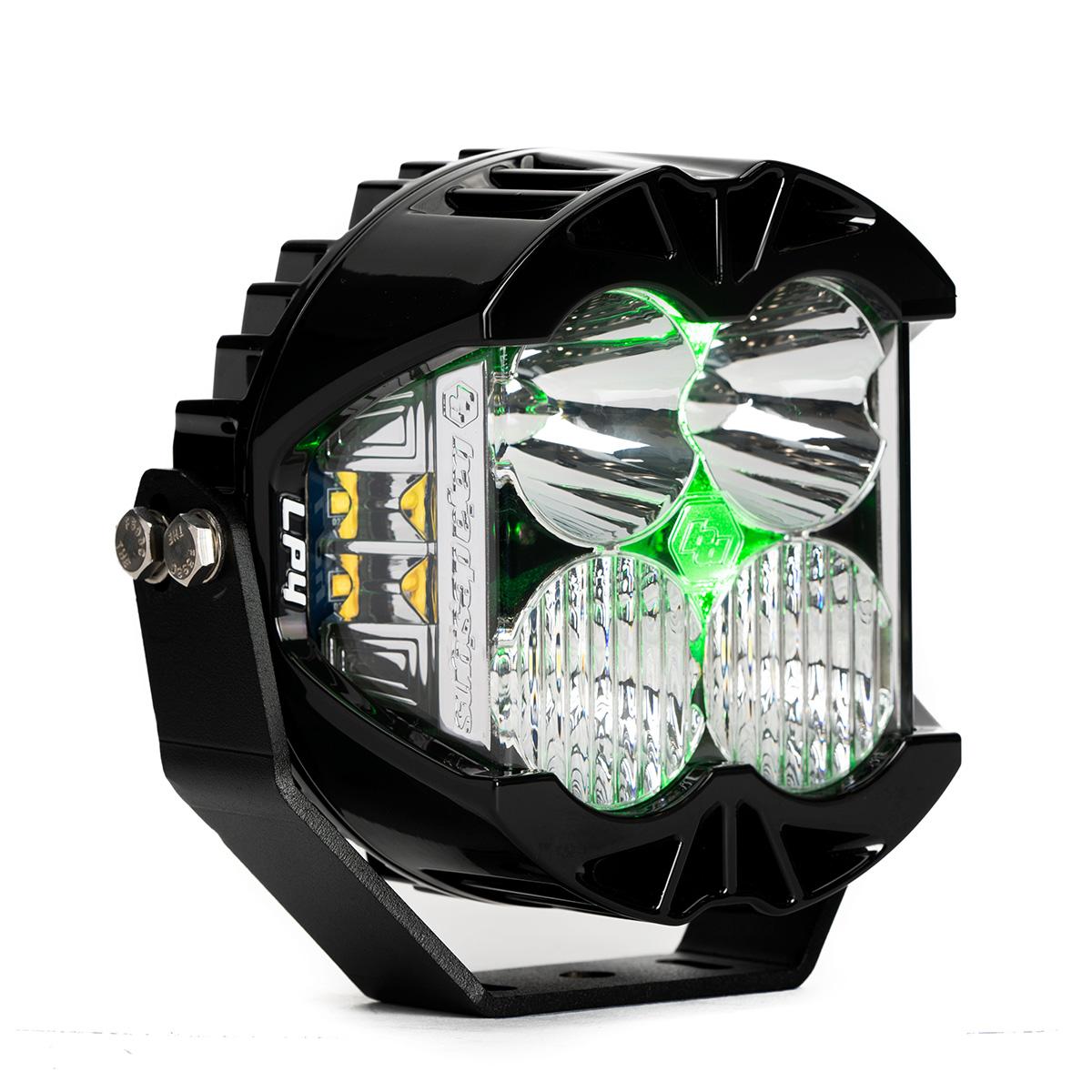

The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.

Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for Exhibition Use Only. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.

Baja Advantage:

  • Satisfaction Guarantee - 30-Day Money Back Guarantee
  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService - Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Safely Driving LEDs at 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color

NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640175.

Specs

LP4 Pro LED Auxiliary Light Pod
Product TypeLP4 Pro LED Light Pod
Beam PatternSpot or Driving/Combo
Lighting ModesBeam / Day-Time Running Backlighting
Lighting TypeForward Projecting
Lighting TechnologyLED
Lighting Quantity4
Brightness (Lumens)8,857
Wattage (W)75.900
Amperage Rating (A)5.500
Backlight Amperage Rating (A)0.350
Backlight Wattage (W)4.830
Average Rated Life (hr.)49,930
Secondary Lighting TypeIntegrated Peripheral Technology (IPT)
Secondary Lighting TechnologyLED
Secondary Light Quantity4 LEDs
Secondary Brightness (Lumens)1,972
Secondary Wattage (W)15
Secondary Amperage Rating (A)1.000
Lens ColorClear
Lens MaterialHardcoated Polycarbonate
Housing ColorBlack
Housing MaterialPowder Coat Cast Aluminum
Bezel MaterialPowder Coat Cast Aluminum
Terminal ConnectorDT06-4S Deutsch
Terminal TypeMating Connector
Mounting Hardware IncludedYes
Mounting Hardware MaterialStainless Steel
Wiring Harness IncludedNo
Overvoltage ProtectionBuilt-In
Universal or SpecificUniversal
Light Quantity1

Fitment

Universal

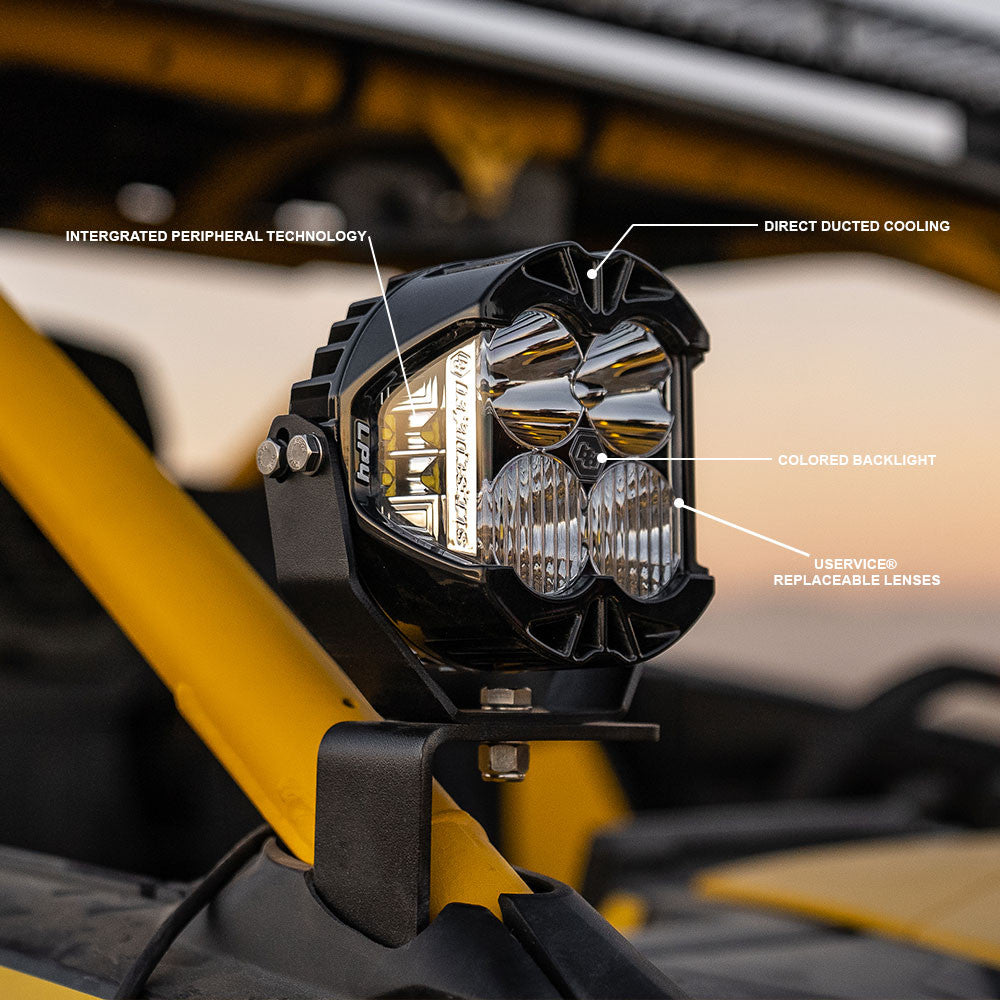

GET TO KNOW THE LP SERIES

  • Direct Ducted Cooling (DDC)

    With so much power, a cooling system was an integral part of making the LP series perform at the highest level. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.

  • Integrated Peripheral Technology (IPT)

    One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.

  • Unique Design

    The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.

  • Color Backlight Options

    Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.

  • uService Lens Replacement

    Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.

Baja Designs LP Series - Inside Look
