LP9 Sport LED Auxiliary Light Pod - Universal

LP9 Sport LED Auxiliary Light Pod - Universal

SKU: 350003

$463.95
$463.95 $463.95
Shipping calculated at checkout.

28 in stock

Expected delivery date:
03 Sep Usually ready in 2-3 days.

Warranty Information

Product Details

Description

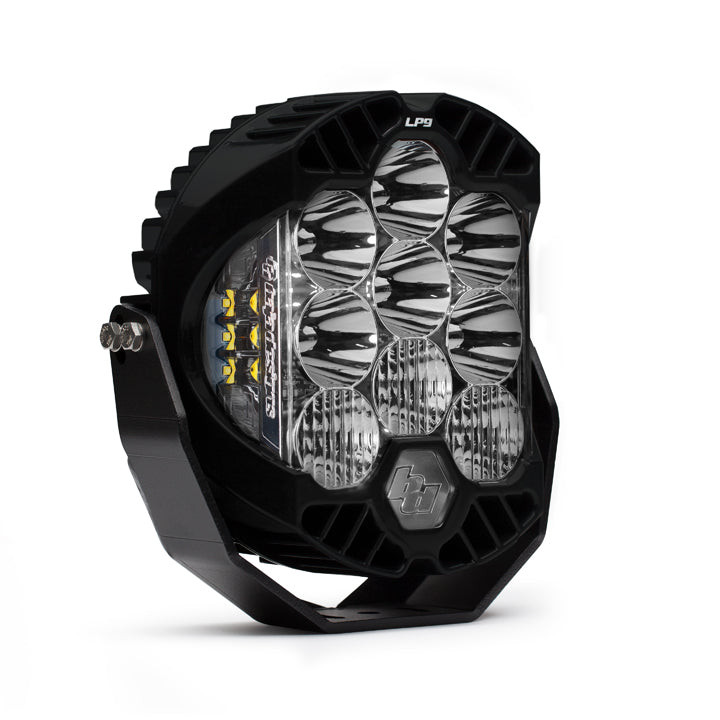

LP9 Sport is perfect for enthusiasts that want the look and features of our successful LP9, but with a little less output intensity and price. The Sport model still includes all of the technology that makes the LP9 series so popular, from Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200 degree spread of usable light. The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,550 lumens at 24 watts.

The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
As with all of our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.


Baja Advantage:

  • Satisfaction Guarantee -30 Day Money Back Guarantee
  • Limited Lifetime Warranty -Complete Purchase Protection
  • uService - Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It.
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Only LED Driven At 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color

Light Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640175.

Specs

LP9 Sport LED Auxiliary Light Pod
Product TypeLP9 Sport LED Light Pod
DescriptionDriving/Combo; Clear
Beam PatternDriving/Combo
Lighting ModesBeam
Lighting TypeForward Projecting
Lighting TechnologyLED
Lighting Quantity9
Brightness (Lumens)9,421
Wattage (W)88.320
Amperage Rating (A)6.400
Average Rated Life (hr.)49,930
Secondary Lighting TypeIntegrated Peripheral Technology (IPT)
Secondary Lighting TechnologyLED
Secondary Light Quantity6 LEDs
Secondary Brightness (Lumens)2,302
Secondary Wattage (W)21
Secondary Amperage Rating (A)1.520
Lens ColorClear
Lens MaterialHardcoated Polycarbonate
Housing ColorBlack
Housing MaterialPowder Coat Cast Aluminum
Bezel MaterialPowder Coat Cast Aluminum
Terminal ConnectorDT06-4S Deutsch
Terminal TypeMating Connector
Mounting Hardware IncludedYes
Mounting Hardware MaterialStainless Steel
Wiring Harness IncludedNo
Overvoltage ProtectionBuilt-In
Universal or SpecificUniversal
Light Quantity1

Fitment

Universal

GET TO KNOW THE LP SERIES

  • Direct Ducted Cooling (DDC)

    With so much power, a cooling system was an integral part of making the LP series perform at the highest level. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.

  • Integrated Peripheral Technology (IPT)

    One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.

  • Unique Design

    The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.

  • Color Backlight Options

    Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.

  • uService Lens Replacement

    Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.

Baja Designs LP Series - Inside Look
