Spyder AT-183 Series Wheel
Spyder AT-183 Series Wheel
SKU: SKU: AT183-22436BM-76
Hurry up! Only 8 items in stock.
Couldn't load pickup availability






Product Details
Description

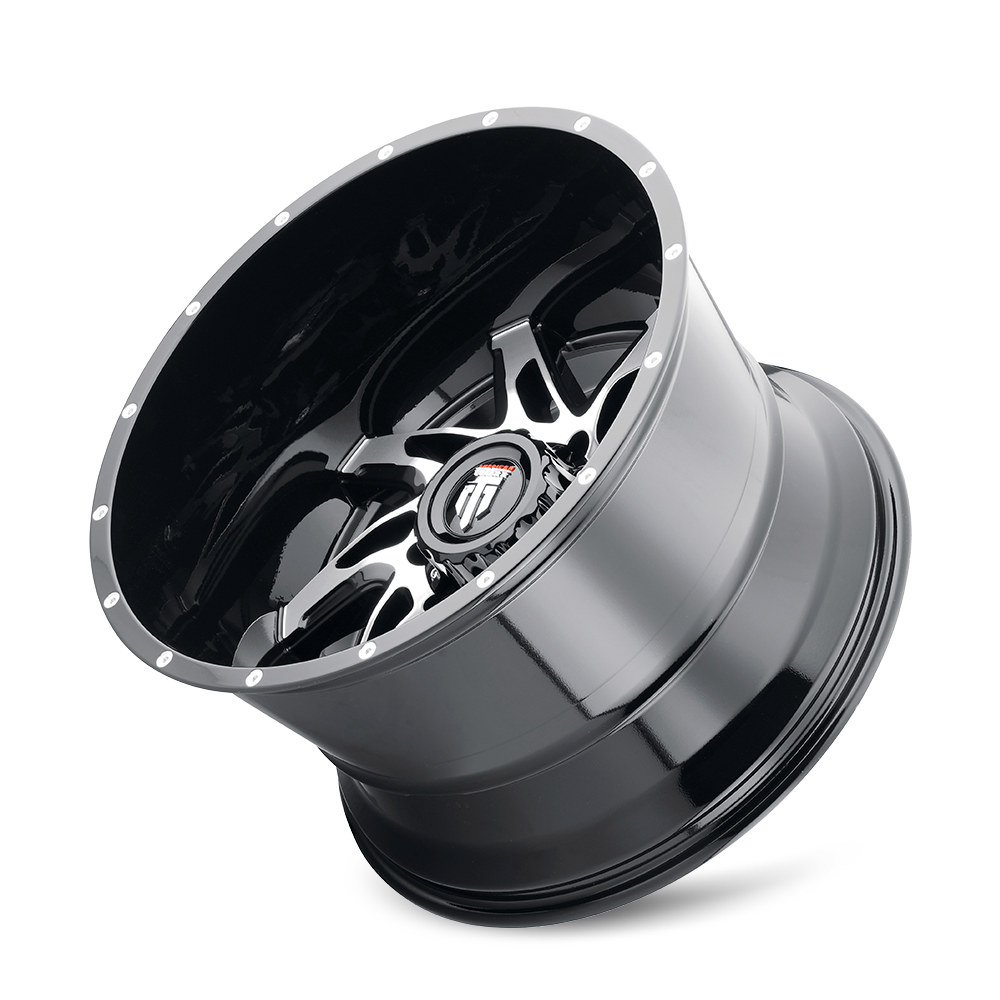

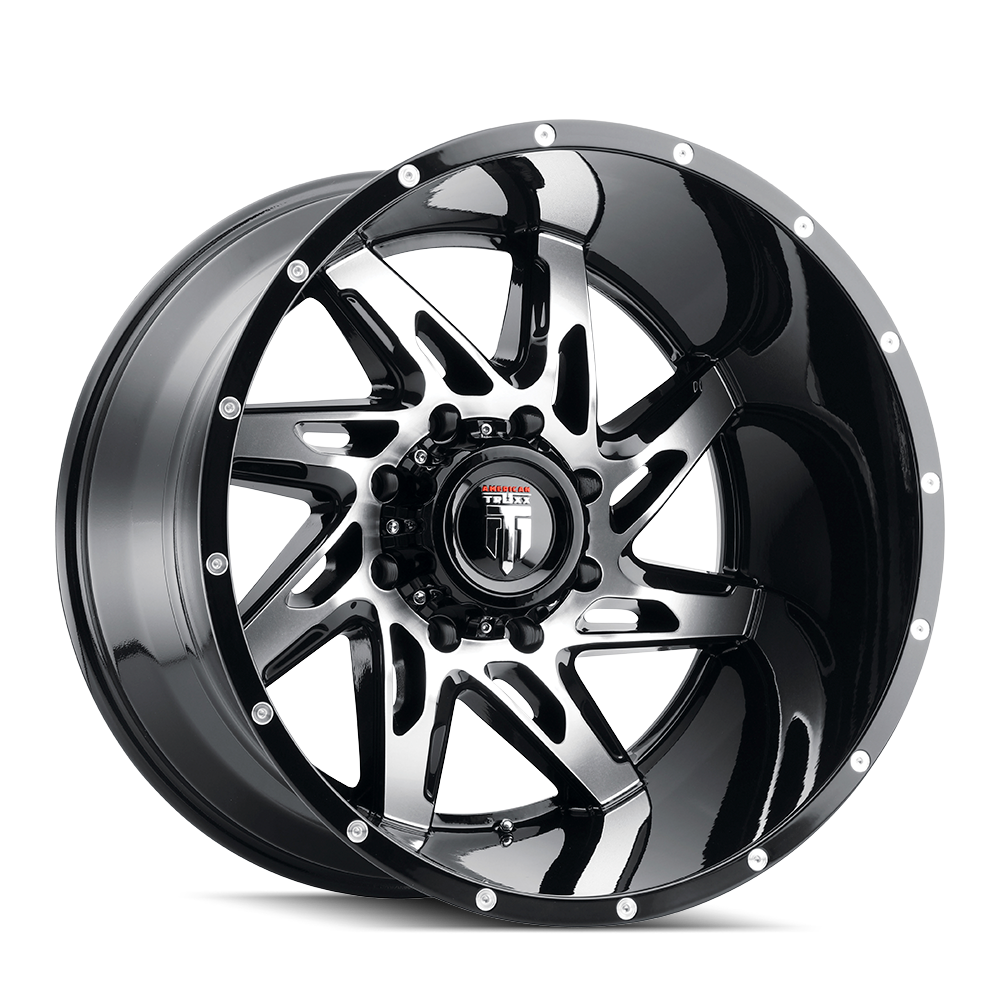

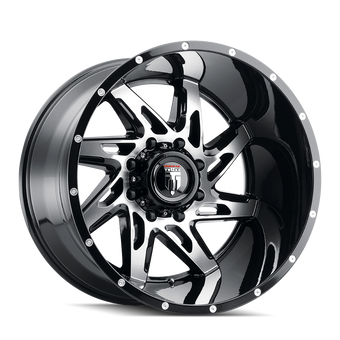

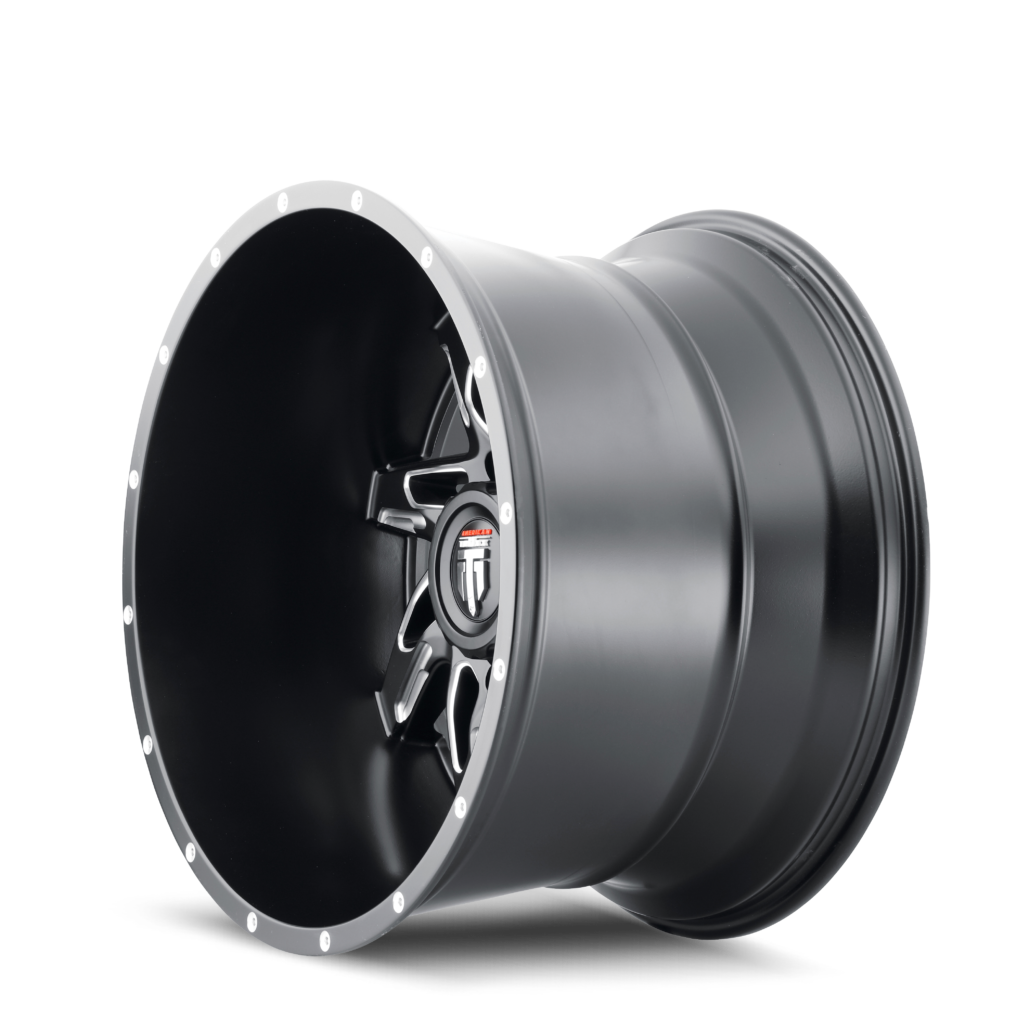

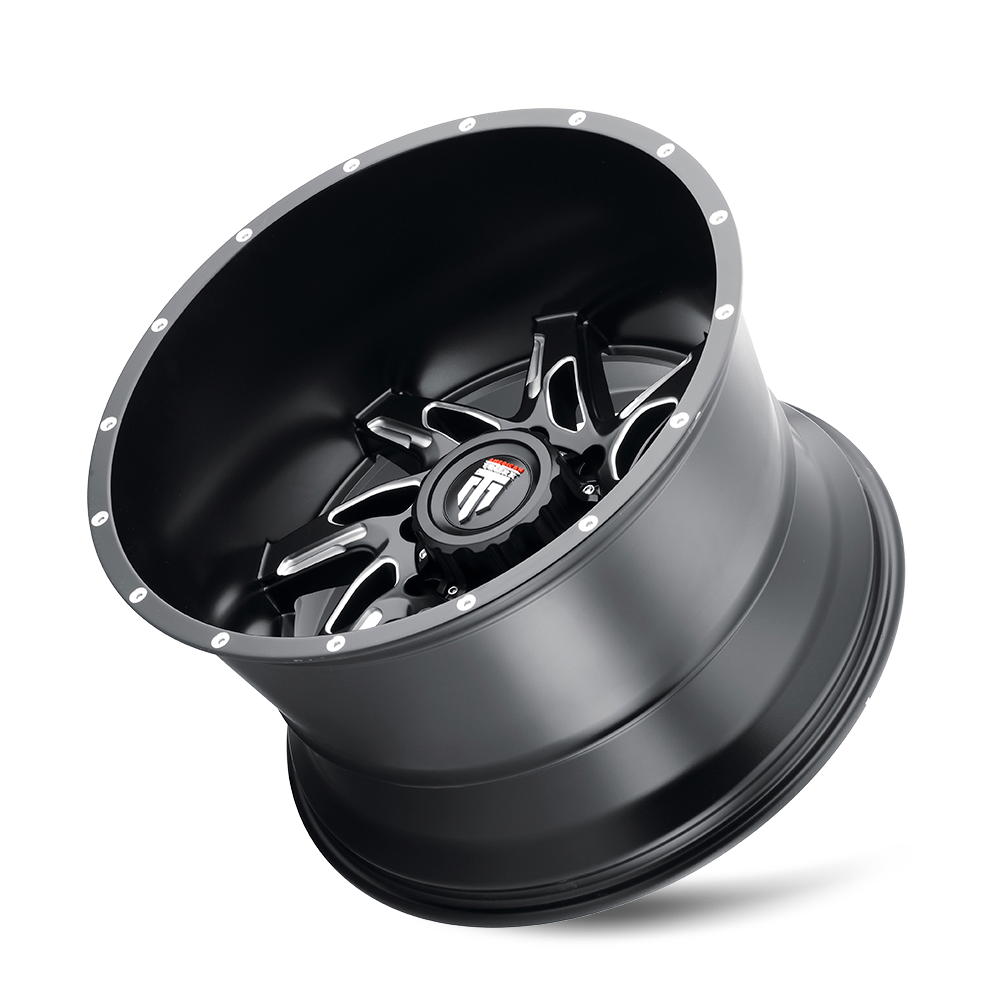

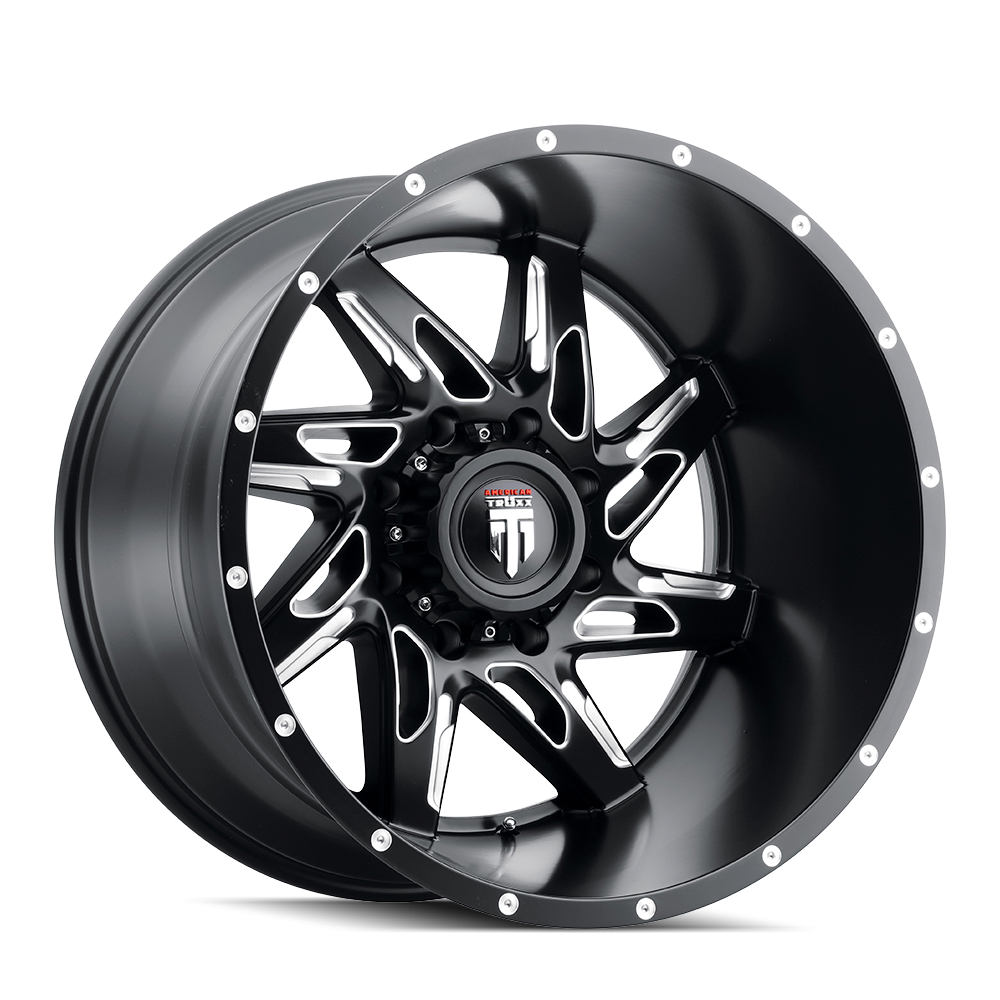

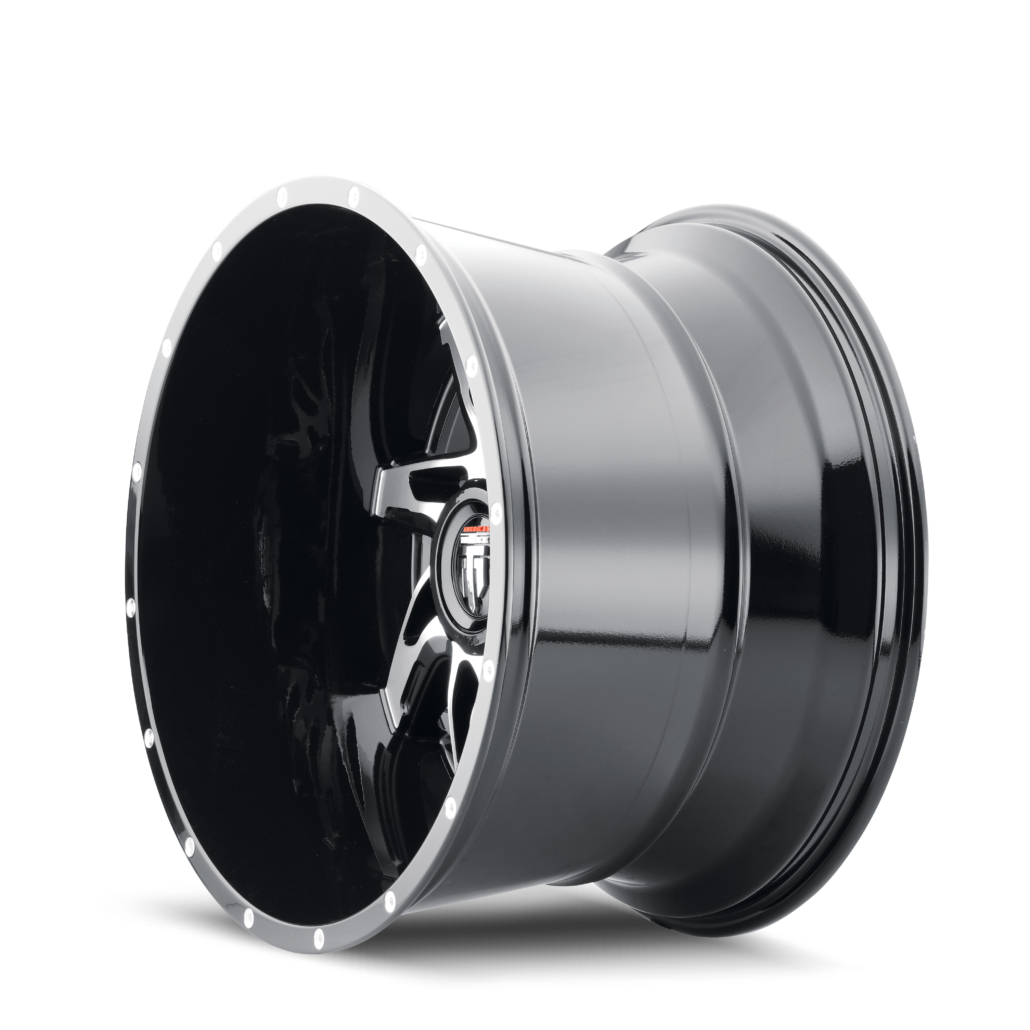

American Truxx Machined Gloss Black AT-183 Spyder Wheels feature a smooth deep lip with rotationally designed spokes to portray an aggressive stance and offset. The spokes are split with a mini window close to the center cap of the wheel. Deep lips and large diameters are what American Truxx specializes in, and the AT-183 Spyder puts those features on display.
Each spoke features machined accents that cover the center of the wheel. The wheel is covered in a gloss black finish that is offset with spot milled accents around the outer edge. The center cap is adorned with the American Truxx logo to complete the look.
- Center Cap Included
- Deep Lip Technology
- Direct Bolt Applications for Precision Fitment
- Semi Directional 8 Spoke Design
- TPMS Compatible
- Vented Spokes Create Dimension While Reducing Weight
- Advanced Manufacturing Technology Creates a Strong Wheel with Up To 3,640 Pound Load Capacity.
Specs
AT-183 SPYDER | ||||||||
DIAMETER | WHEEL WIDTH | HUB | PCD1 | OFFSET | WHEEL CAP | LOAD RATING | BACKSPACE | |
20 | 10 | 87.10 | 6-135 | -24 | C10681-6H-B | 2500 | 4.56 | |
20 | 10 | 110.30 | 5-150 | -24 | C10681-5H-B | 2500 | 4.56 | |
20 | 10 | 125.20 | 8-170 | -24 | C10681-8H-B | 3500 | 4.56 | |
20 | 10 | 78.10 | 5-127 | -24 | C10681-5H-B | 2500 | 4.56 | |
20 | 10 | 125.20 | 8-180 | -24 | C10681-8H-B | 3500 | 4.56 | |
20 | 10 | 125.20 | 8-165.1 | -24 | C10681-8H-B | 3500 | 4.56 | |
20 | 10 | 106.10 | 6-139.7 | -24 | C10681-6H-B | 2500 | 4.56 | |
20 | 10 | 87.10 | 5-139.7 | -24 | C10681-5H-B | 2500 | 4.56 | |
22 | 14 | 87.10 | 6-135 | -76 | C10681-6H-B | 2500 | 4.51 | |
22 | 14 | 110.30 | 5-150 | -76 | C10681-5H-B | 2500 | 4.51 | |
22 | 14 | 125.20 | 8-170 | -76 | C10681-8H-B | 3500 | 4.51 | |
22 | 14 | 78.10 | 5-127 | -76 | C10681-5H-B | 2500 | 4.51 | |
22 | 14 | 125.20 | 8-180 | -76 | C10681-8H-B | 3500 | 4.51 | |
22 | 14 | 125.20 | 8-165.1 | -76 | C10681-8H-B | 3500 | 4.51 | |
22 | 14 | 106.10 | 6-139.7 | -76 | C10681-6H-B | 2500 | 4.51 | |
22 | 14 | 87.10 | 5-139.7 | -76 | C10681-5H-B | 2500 | 4.51 |
Fitment
Vehicle fitment varies by year, make, model, and trim. Please verify your vehicle’s bolt pattern, offset, backspacing, and hub size before ordering.
