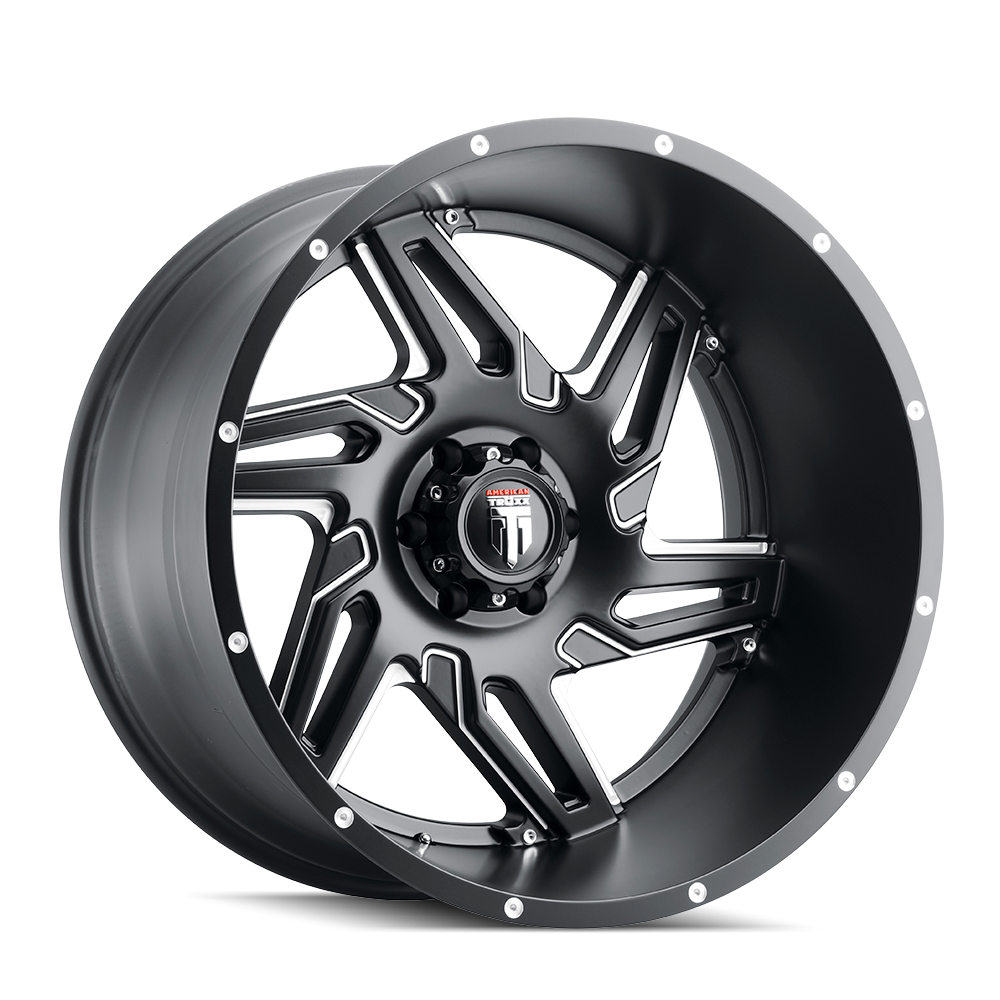

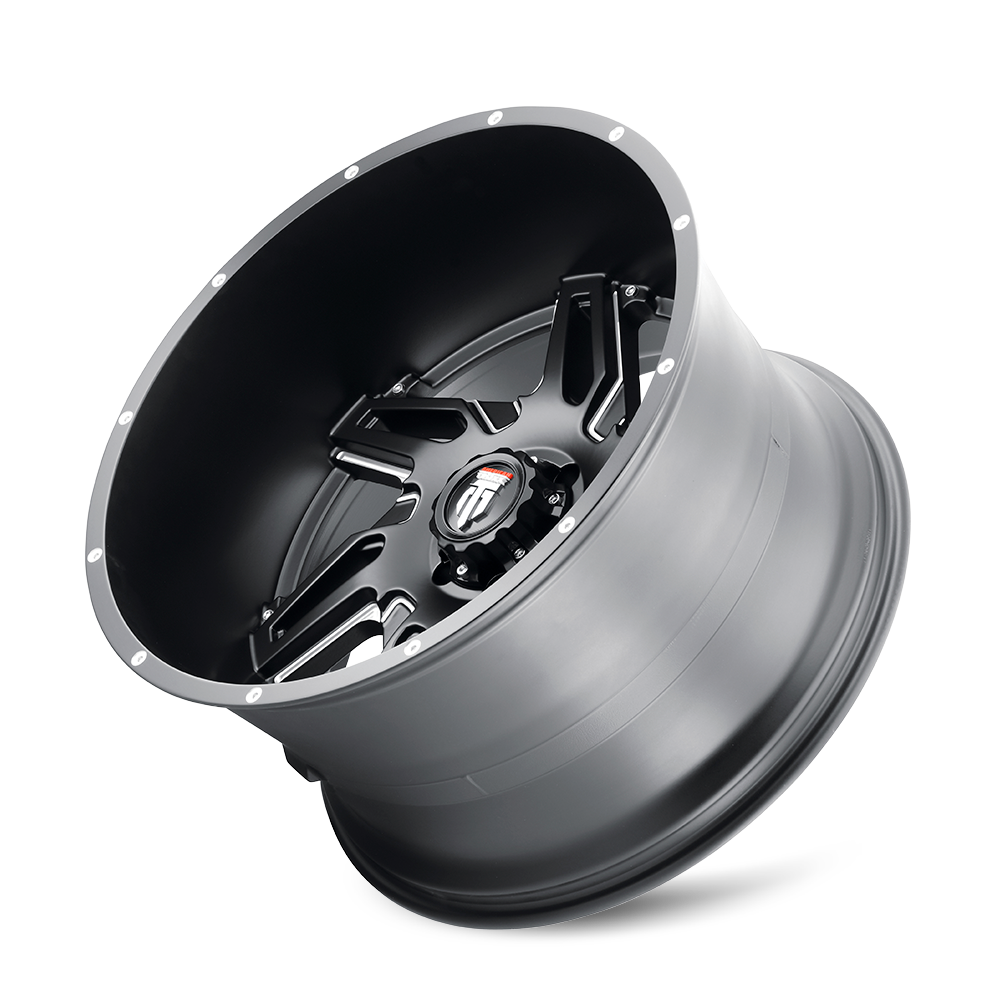

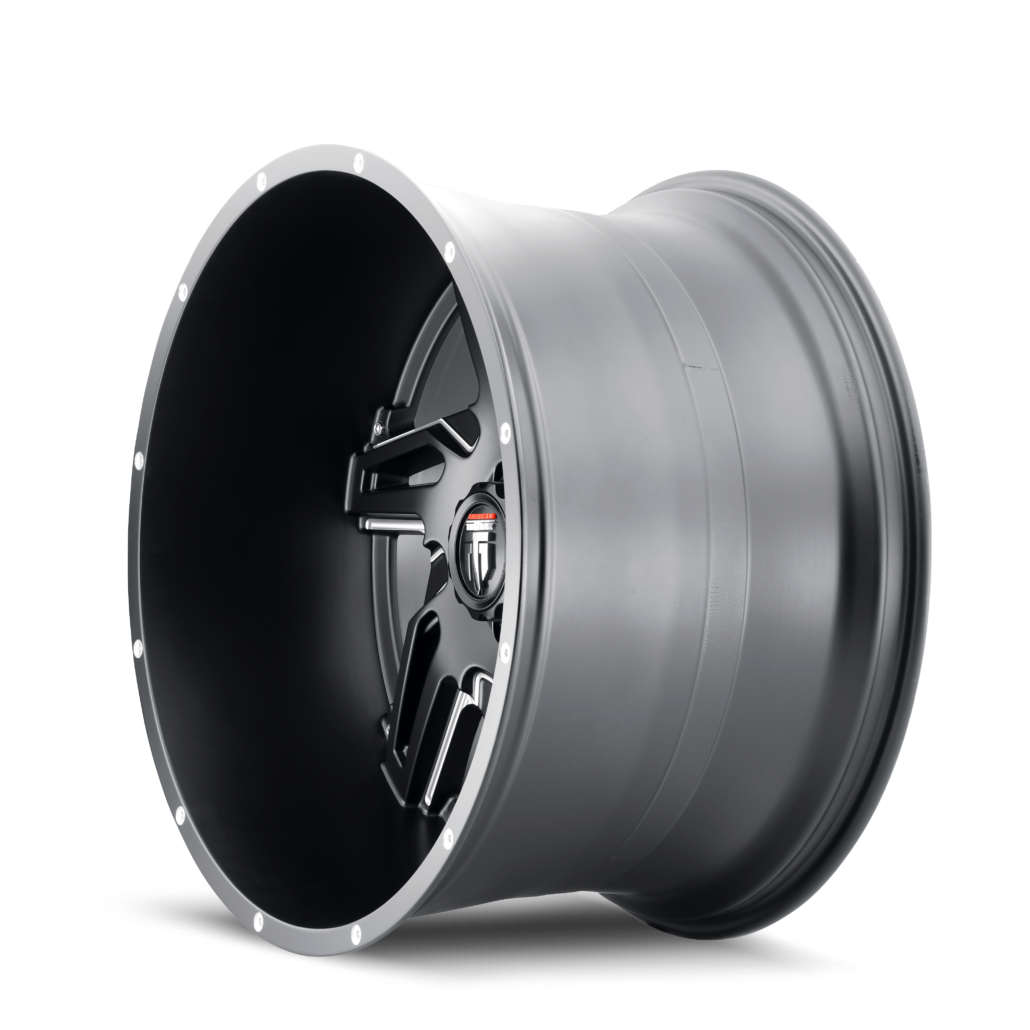

Spurs AT-186 Series Wheel
Spurs AT-186 Series Wheel
SKU: SKU: AT186-24473C-76
Hurry up! Only 3 items in stock.
Couldn't load pickup availability
Product Details
Description

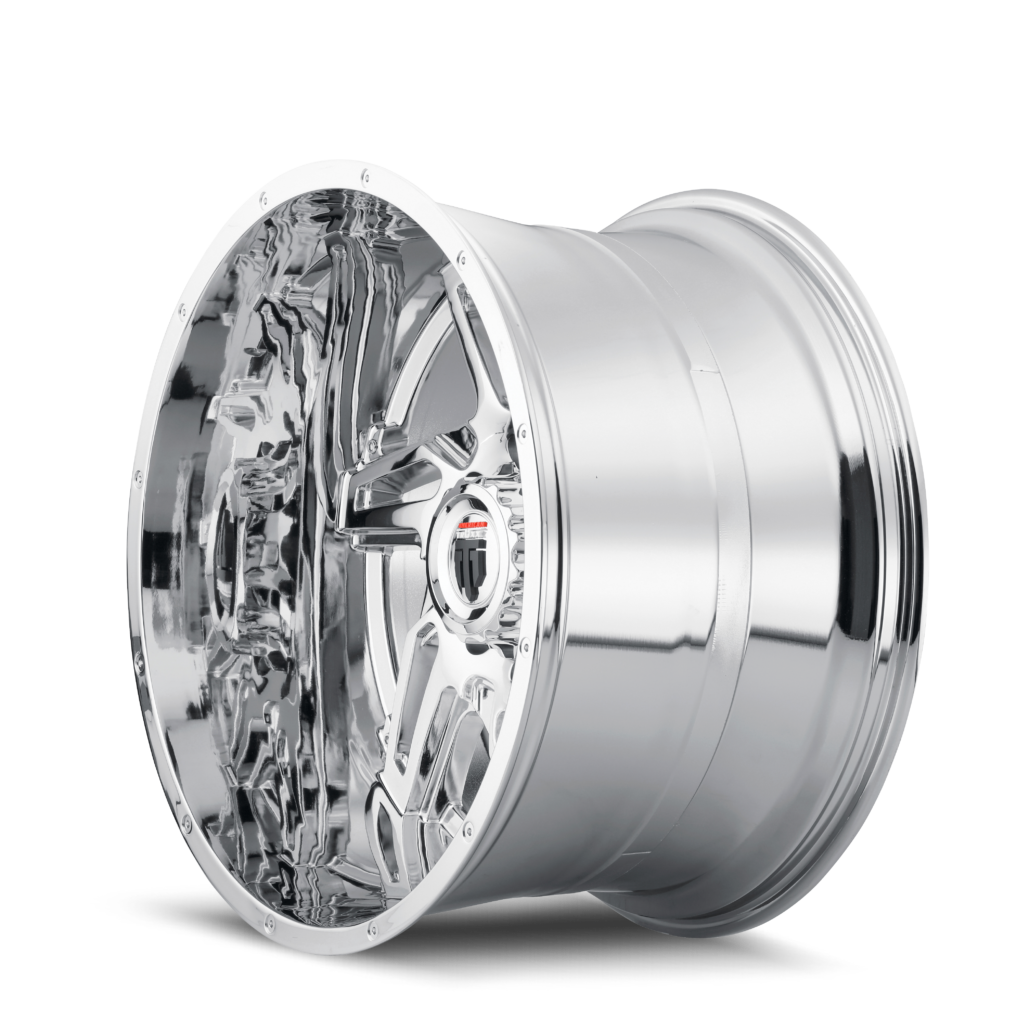

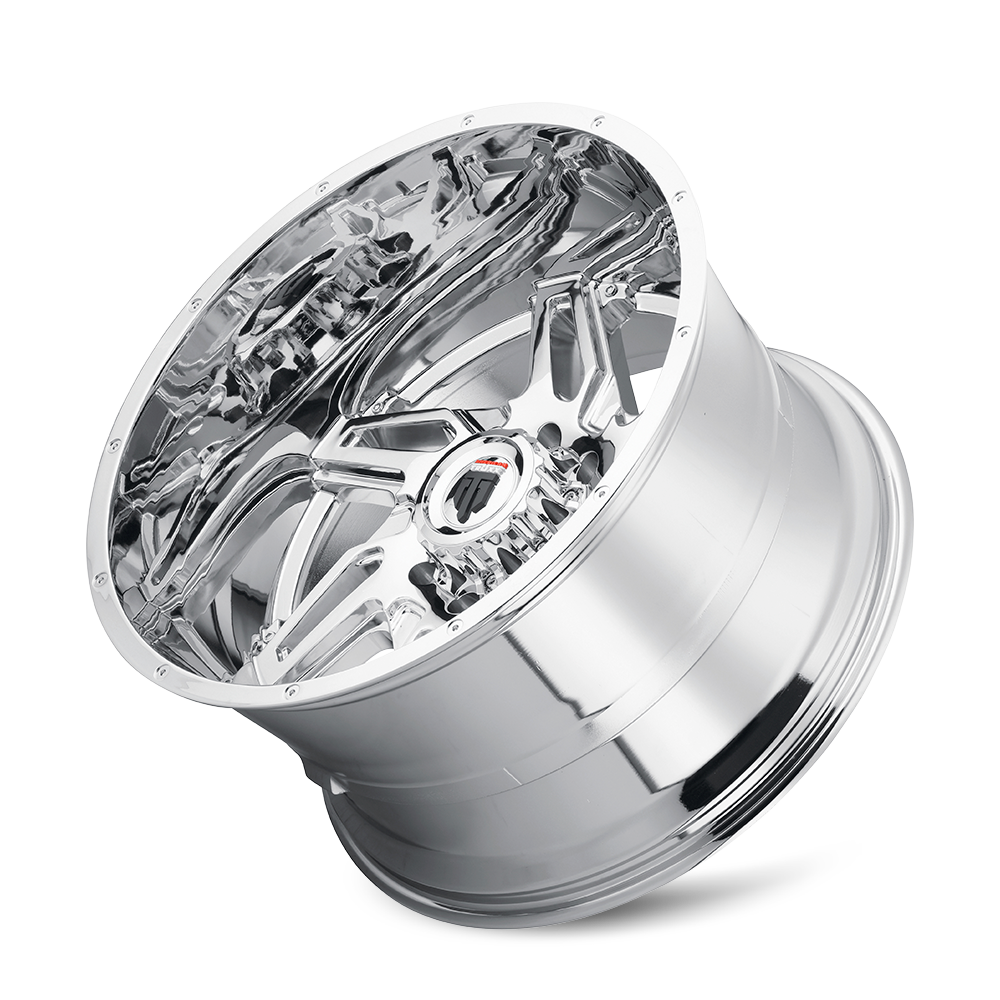

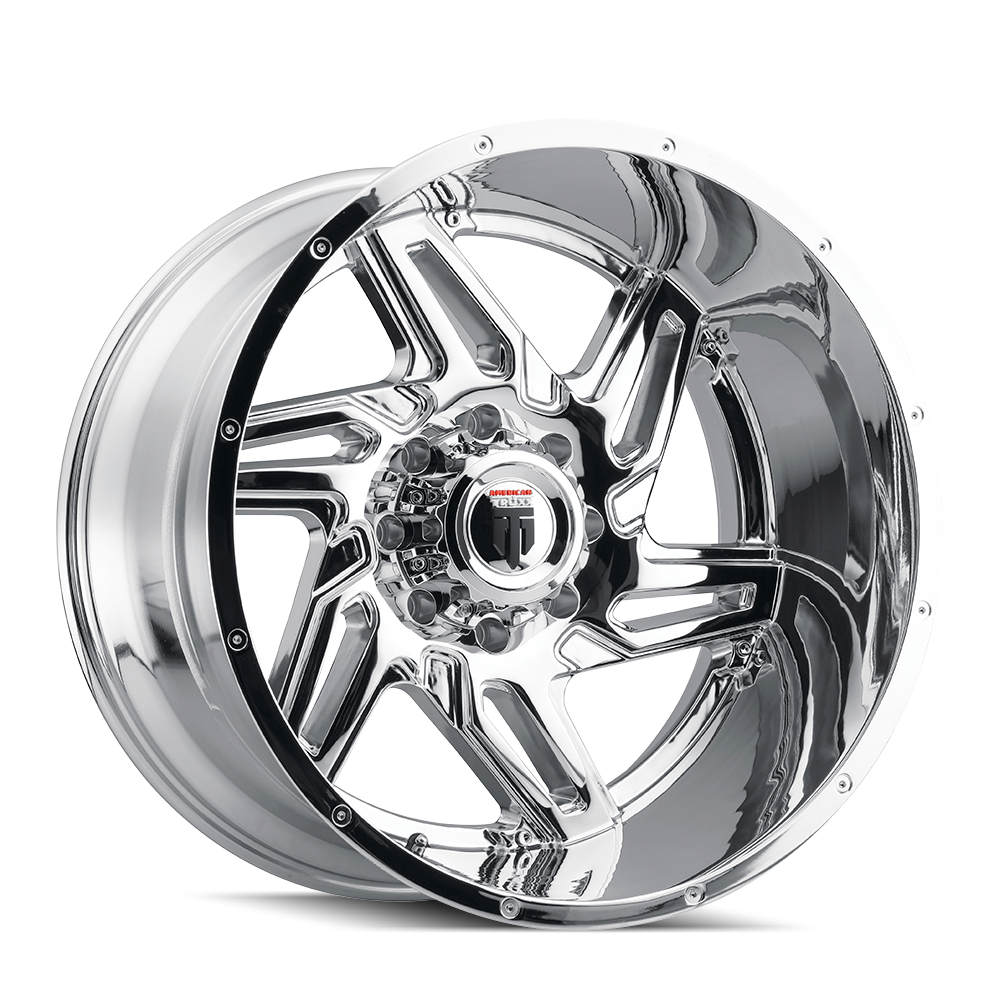

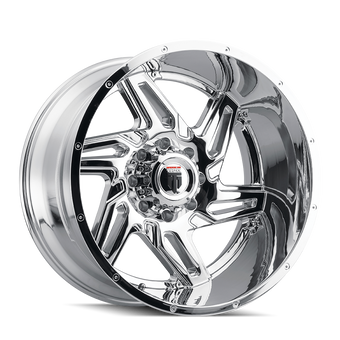

American Truxx Chrome AT-186 Spurs Wheels feature an aggressive rotational style with split that fill up the center and leaves a window with sharp angles. The spokes give off the illusion that they are carving into the barrel with aggressive contours. American Truxx is known for its deep lip designs in a directional style wheel, and the AT-186 Spurs puts those features on display.
Each spoke features contoured grooves that wrap around between the center of the main spokes and surrounds the windows. The wheel has spot milled accents around the lip of the wheel and is covered in a chrome finish. The center cap features the traditional American Truxx logo to complete the look.
- Bolt Heads at Base of Spoke Add an Off-Road Appeal
- Center Cap Included
- Concave And Angles Spokes
- Deep Lip Technology
- Direct Bolt Applications for Precision Fitment
- Style Driven 8 Spoke Design
- TPMS Compatible
- Advanced Manufacturing Technology Creates a Strong Wheel with Up To 3,640 Pound Load Capacity.
Specs
| AT-186 SPURS | ||||||||
| DIAMETER | WHEEL WIDTH | HUB | PCD1 | OFFSET | WHEEL CAP | LOAD RATING | BACKSPACE | |
| 22 | 12 | 87.10 | 6-135 | -44 | C1081502090F-5 | 2500 | 4.77 | |
| 22 | 12 | 110.30 | 5-150 | -44 | C1081502090F-14 | 2500 | 4.77 | |
| 22 | 12 | 125.20 | 8-170 | -44 | C1081502090F-4 | 3500 | 4.77 | |
| 22 | 12 | 78.10 | 5-127 | -44 | C1081502090F-11 | 2500 | 4.77 | |
| 22 | 12 | 125.20 | 8-180 | -44 | C1081502090F-4 | 3500 | 4.77 | |
| 22 | 12 | 125.20 | 8-165.1 | -44 | C1081502090F-4 | 3500 | 4.77 | |
| 22 | 12 | 106.10 | 6-139.7 | -44 | C1081502090F-5 | 2500 | 4.77 | |
| 22 | 12 | 87.10 | 5-139.7 | -44 | C1081502090F-6 | 2500 | 4.77 | |
| 24 | 14 | 87.10 | 6-135 | -76 | C1081502090F-5 | 2500 | 4.51 | |
| 24 | 14 | 110.30 | 5-150 | -76 | C1081502090F-14 | 2500 | 4.51 | |
| 24 | 14 | 125.20 | 8-170 | -76 | C1081502090F-4 | 3500 | 4.51 | |
| 24 | 14 | 78.10 | 5-127 | -76 | C1081502090F-11 | 2500 | 4.51 | |
| 24 | 14 | 125.20 | 8-180 | -76 | C1081502090F-4 | 3500 | 4.51 | |
| 24 | 14 | 125.20 | 8-165.1 | -76 | C1081502090F-4 | 3500 | 4.51 | |
| 24 | 14 | 106.10 | 6-139.7 | -76 | C1081502090F-5 | 2500 | 4.51 | |
| 24 | 14 | 87.10 | 5-139.7 | -76 | C1081502090F-6 | 2500 | 4.51 | |
Fitment
Vehicle fitment varies by year, make, model, and trim. Please verify your vehicle’s bolt pattern, offset, backspacing, and hub size before ordering.
