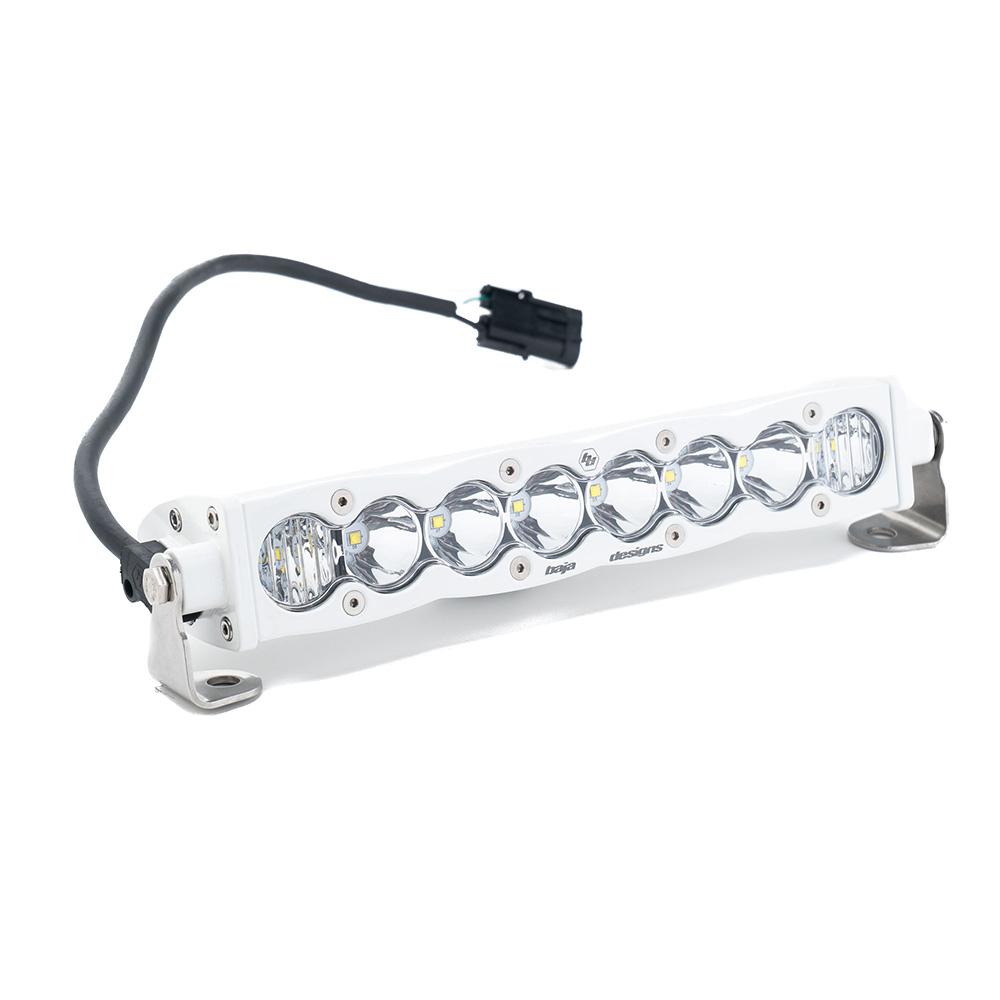

S8 White Straight LED Light Bar (Driving/Combo)
S8 White Straight LED Light Bar (Driving/Combo)
SKU: SKU: 701003WT
Out of stock





Product Details
Description

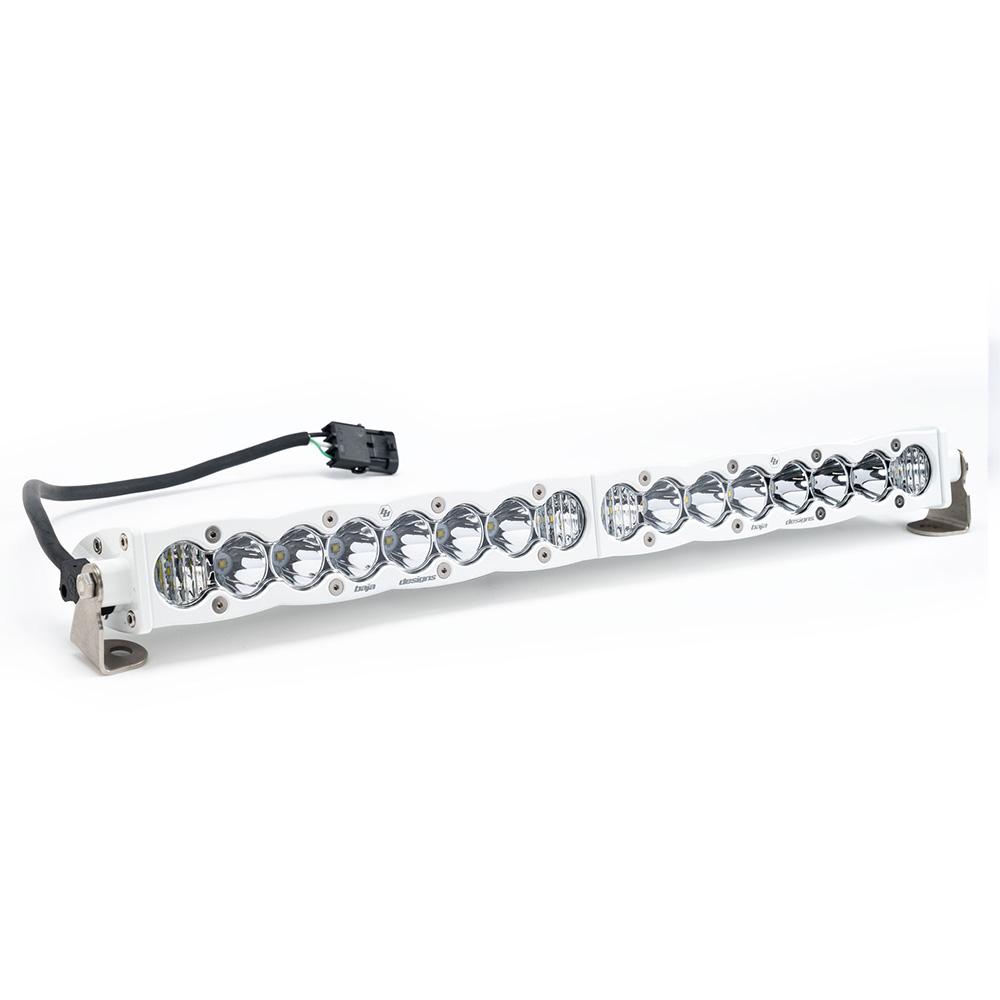

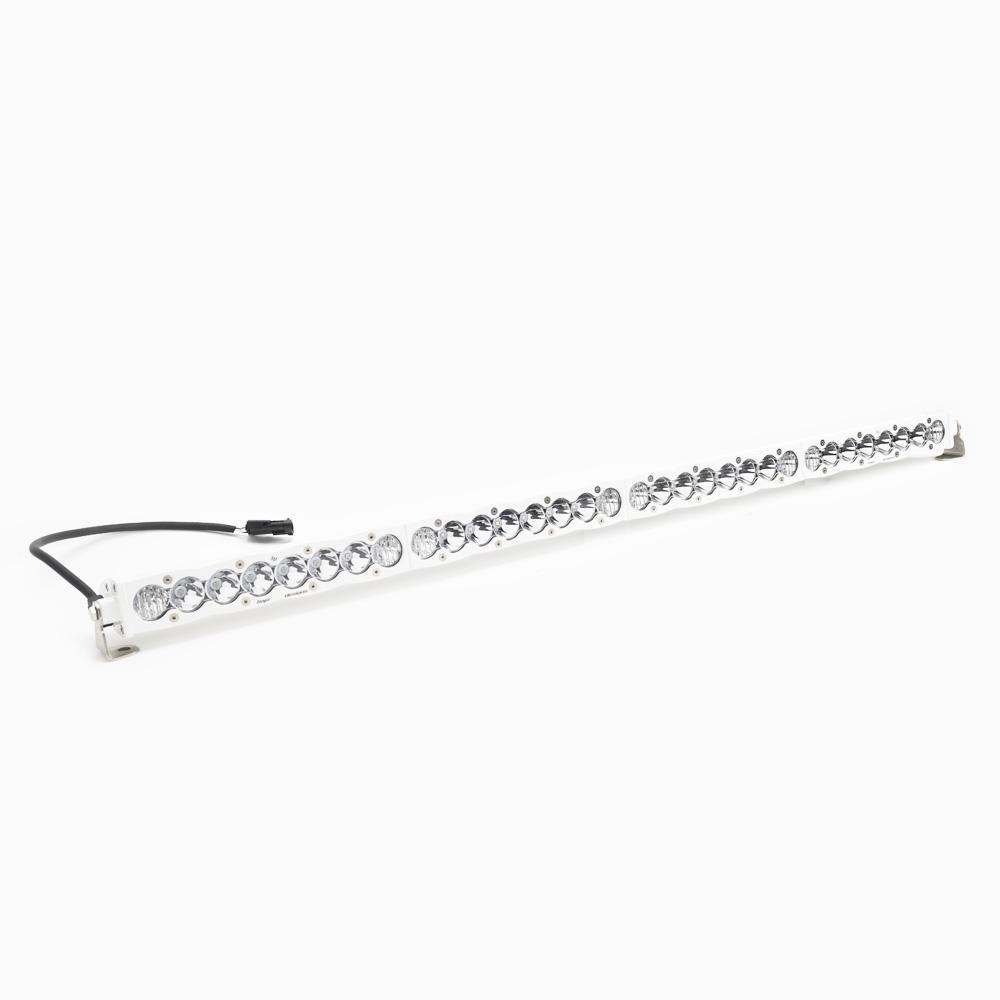

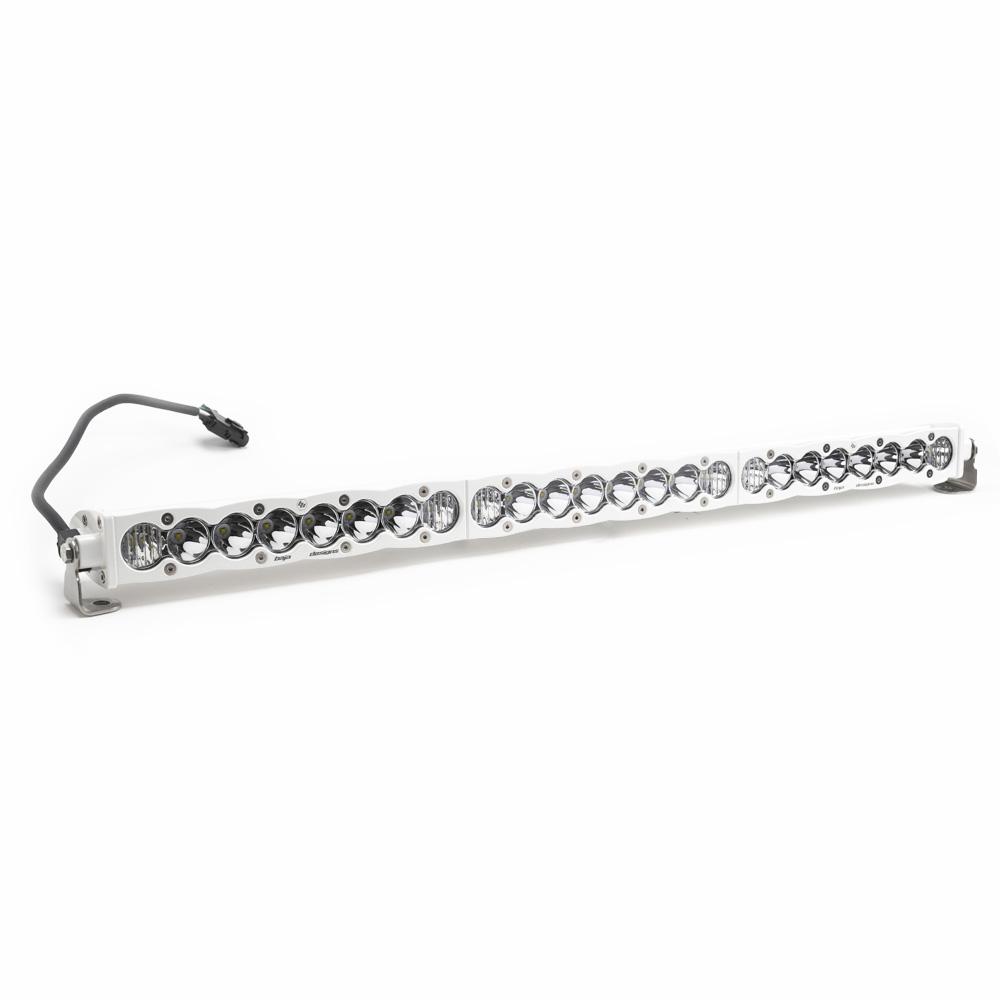

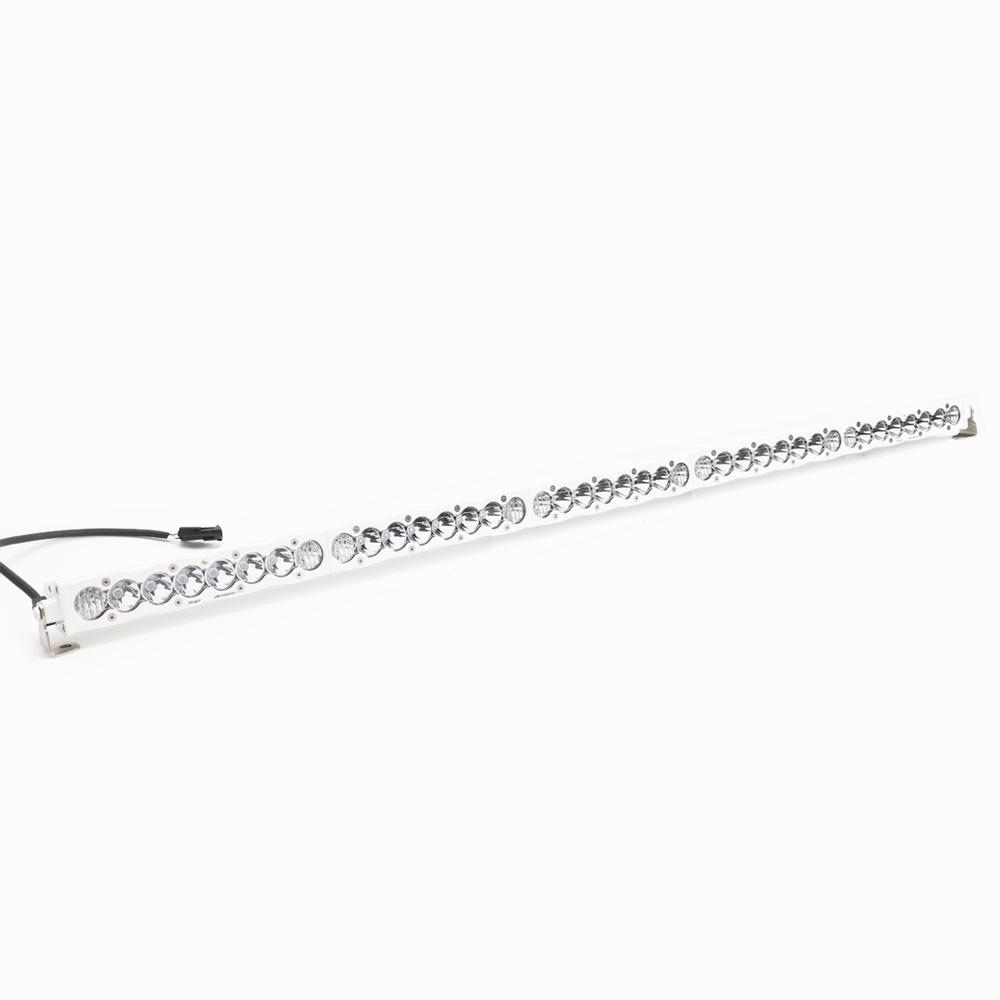

The S8 white light bars from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 for 10 inch section, the S8 is available from 10 inch to 50 inch and also features high-performance reflectors, and an amber backlit feature. The S8 is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection!
Baja Advantage:
- Satisfaction Guarantee - 30-Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 Percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Light Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance.
NOTE: This light does NOT include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight function), or 640115 (On/Off 3-pin for one light 10″-30″).
Specs
S8 White Straight LED Light Bar | |
Amperage Rating (A) | 4.200 / 8.0 / 12 / 16 / 20 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 6324 / 12,700 / 19,050 / 25,400 / 31,750 |
Description | Driving/Combo; Clear |
Housing Color | White |
Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam/Amber Backlit Feature |
Lighting Quantity | 8 / 16 / 24 / 32 / 40 |
Lighting Technology | Cree LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Mounting Brackets |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | S8 LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 57.960 / 120 / 180 / 240 / 300 |
Wiring Harness Included | No |
Fitment
Universal
