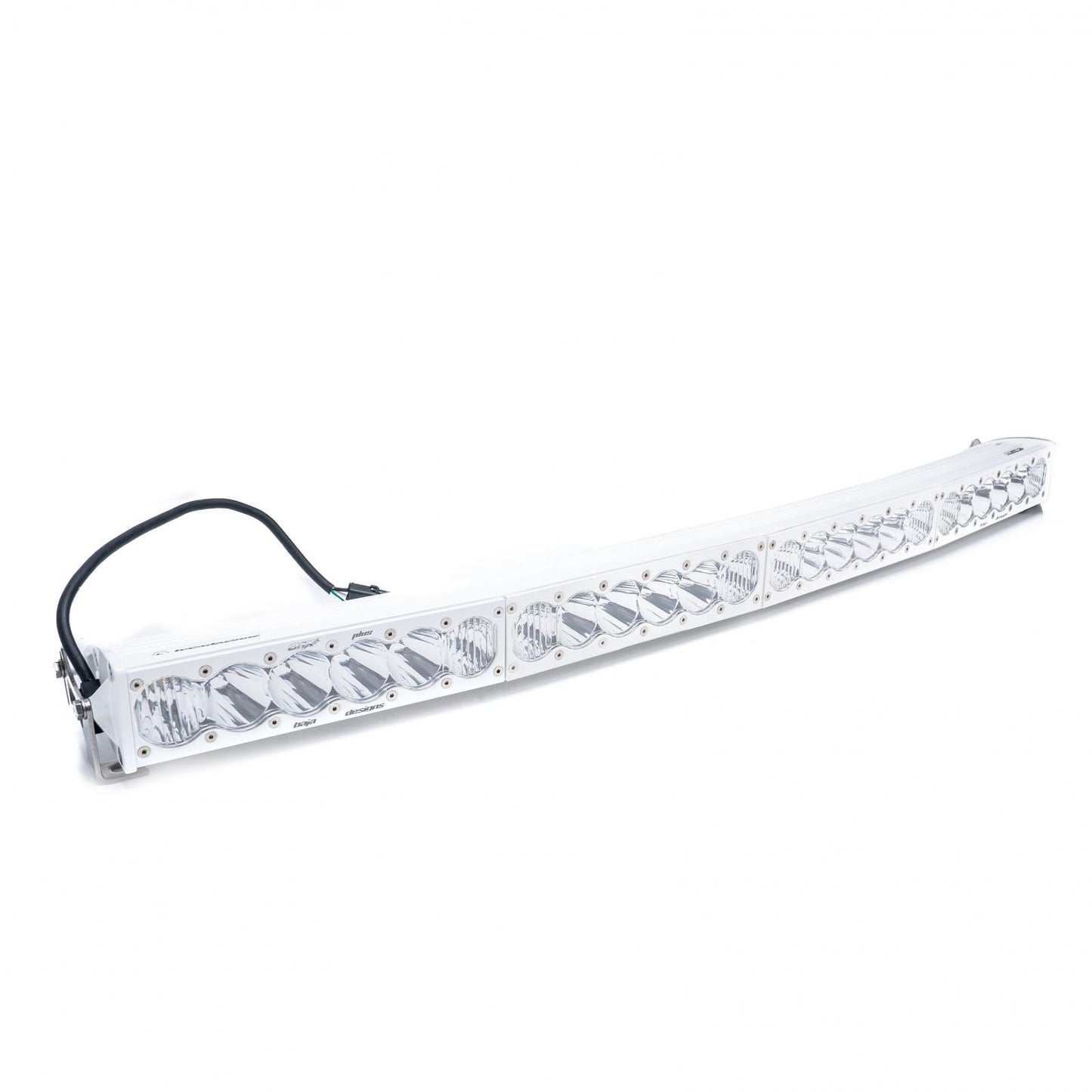

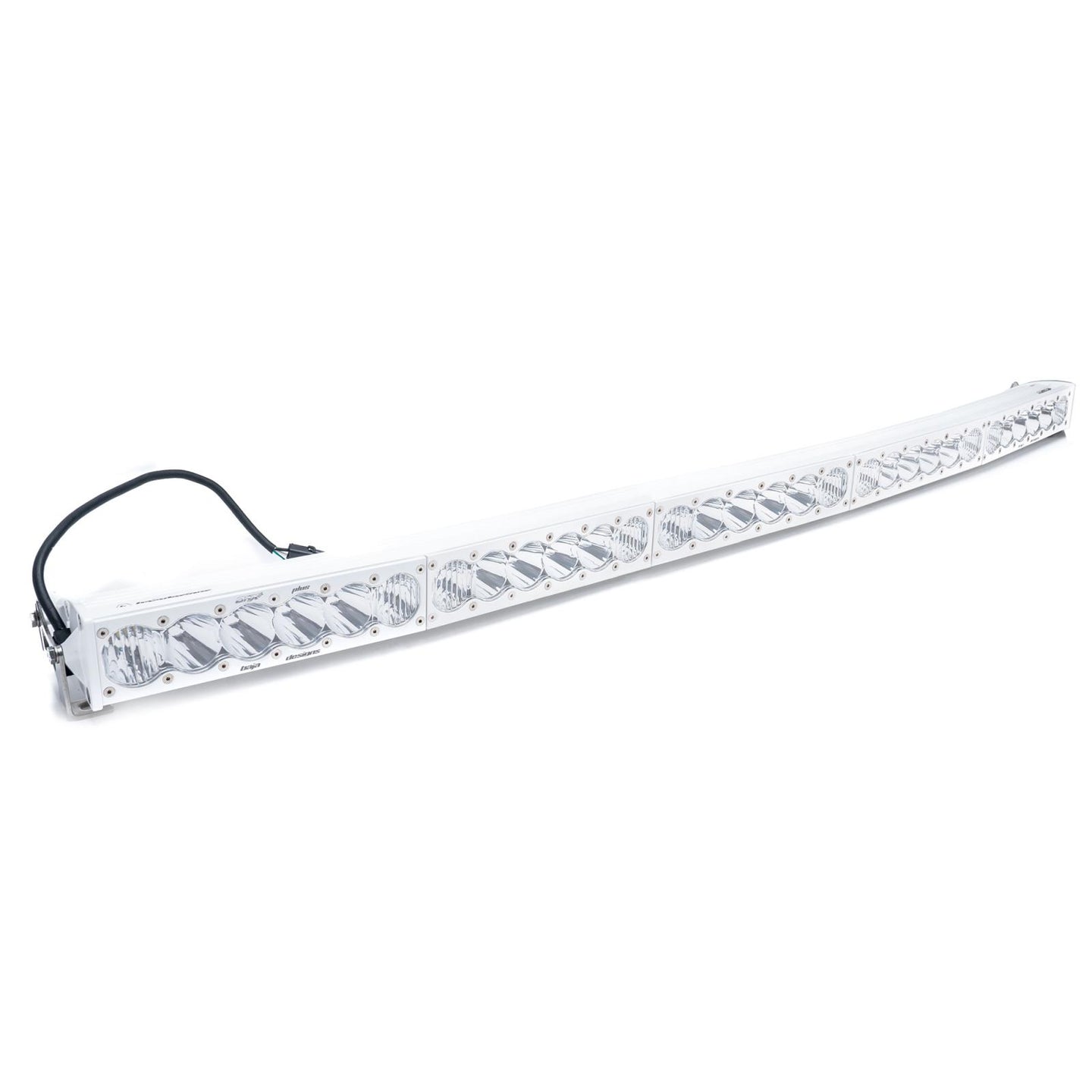

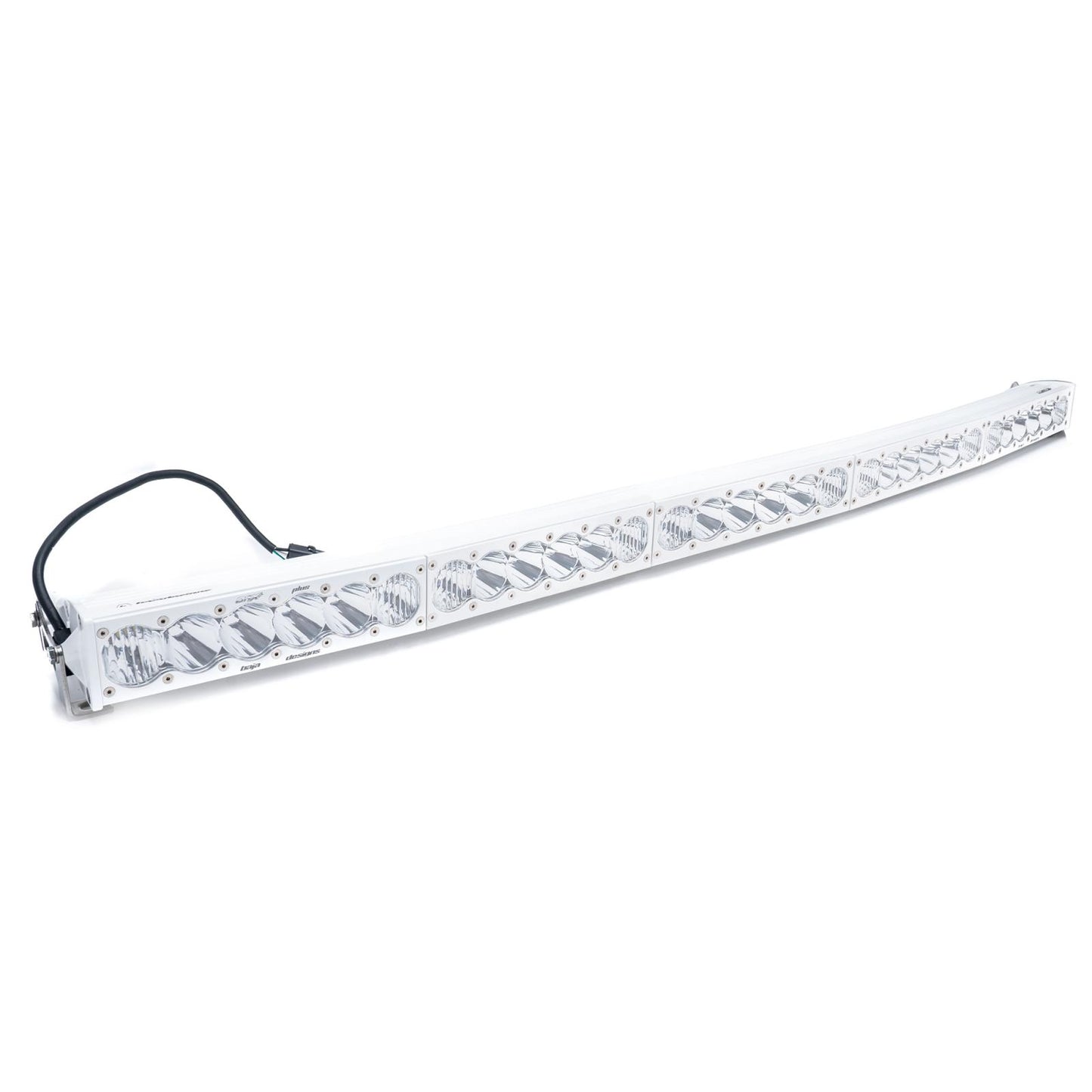

OnX6 White Arc LED Light Bar - Universal

The OnX6+ white LED light bar integrates Baja Designs trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.

In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems.

Light Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance.

Notes:

• This light does Not include a harness to access the High/low light function the applicable wiring harness is 640119.
• 640115 On/Off OnX6+ wiring harness is only applicable for 10-20 inch OnX6+.
• 640119 OnX6+ wiring harness is applicable for 30-50 inch OnX6+

OnX6 White Arc LED Light Bar
Amperage Rating (A)	26.8 (High); 22.4 (Low)
Average Rated Life (hr.)	49,930
Beam Pattern	Driving/Combo
Bezel Material	Billet Machined Aluminum
Brightness (Lumens)	39,220 (High); 32,760 (Low)
Description	Arc; Driving/Combo; Clear
Housing Color	White
Housing Material	Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color	Clear
Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	High Beam / Low Beam
Lighting Quantity	24
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Description	Mounting Brackets
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	OnX6+ 40 Inch Arc LED Light Bar
Universal or Specific	Universal
Wattage (W)	340 (High); 284 (Low)
Wiring Harness Description	Hi-Low Dongle
Wiring Harness Included	No

Universal
