Reverse Light Wiring Kit (w/ running light)

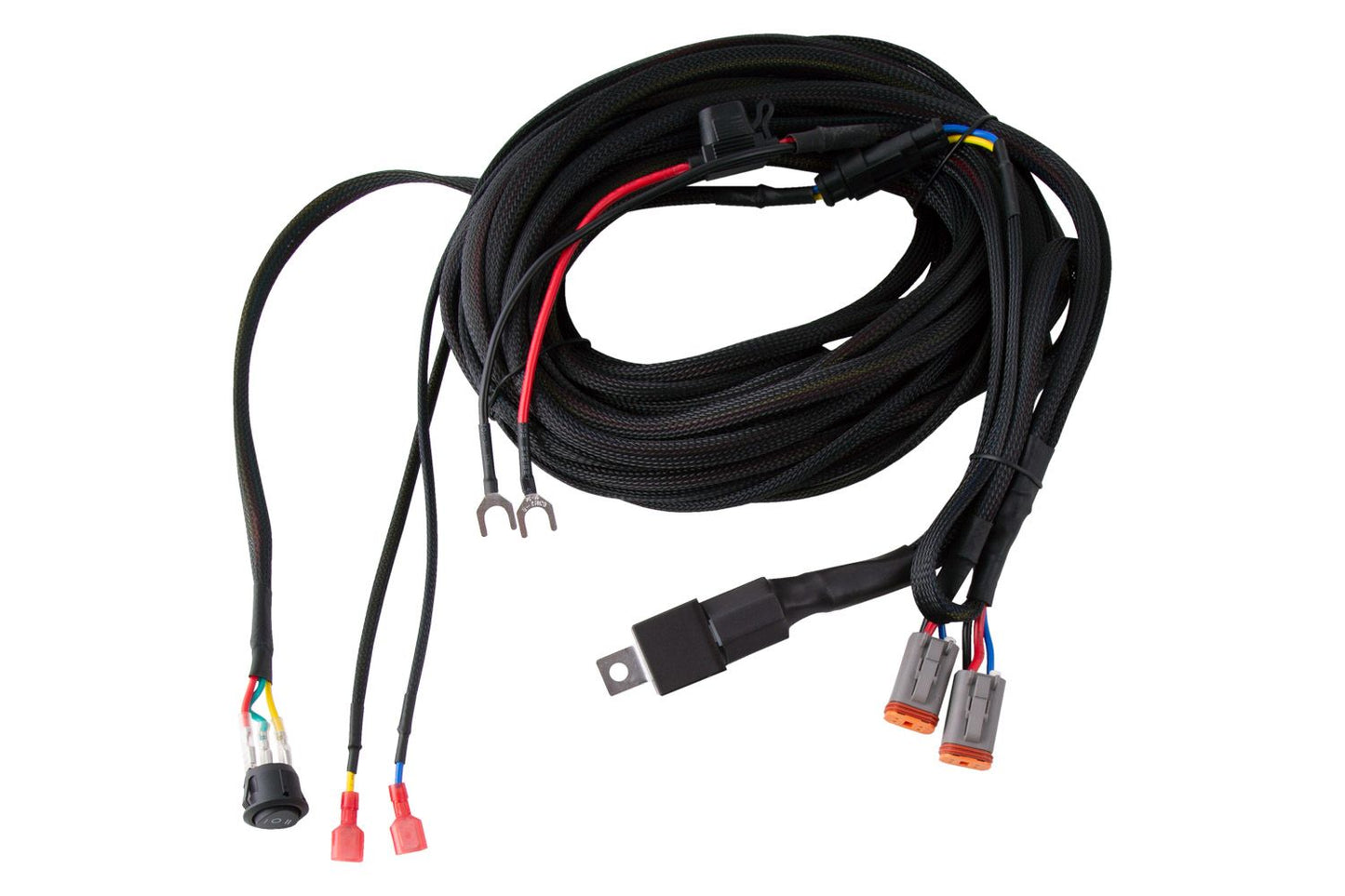

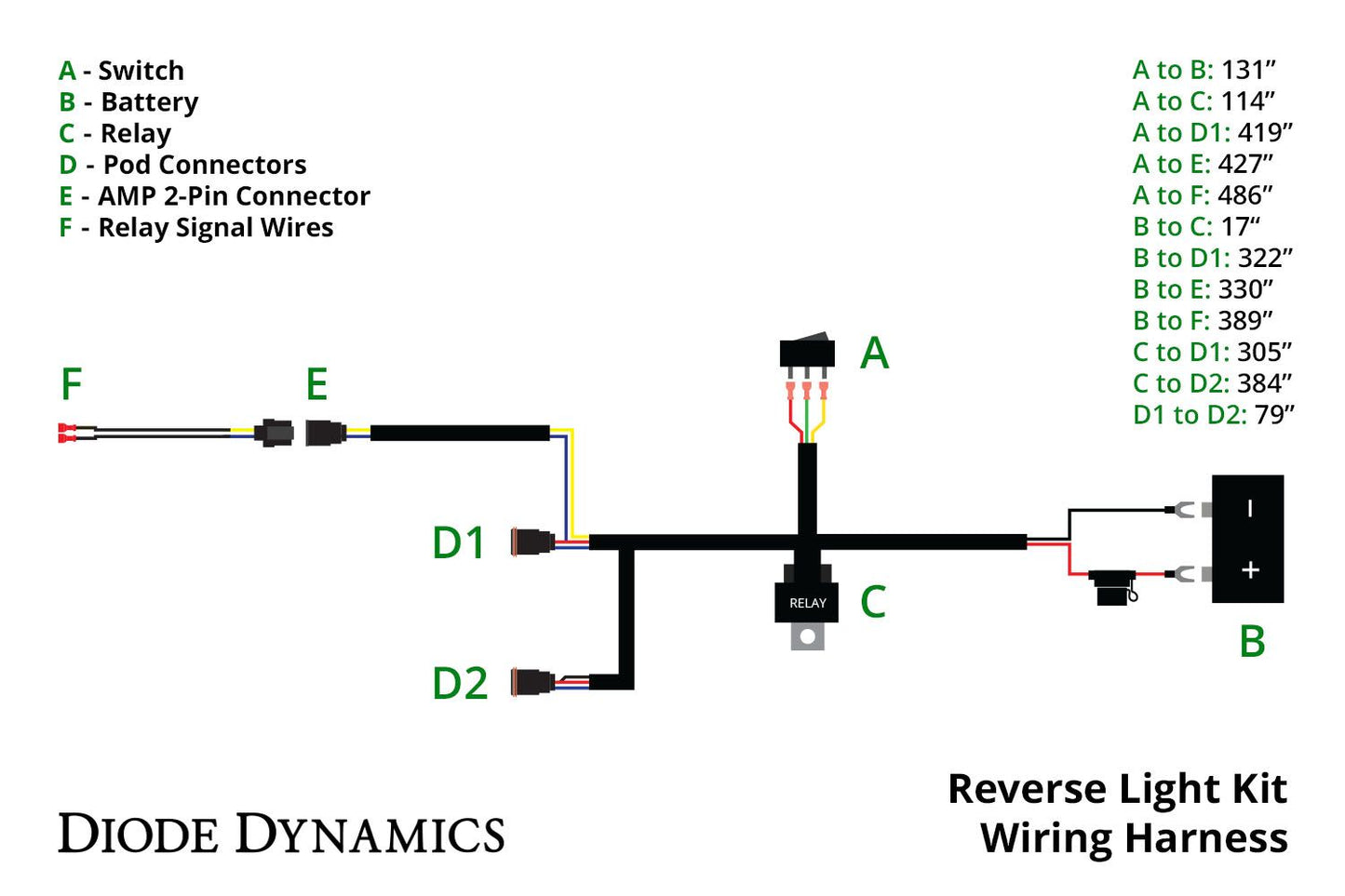

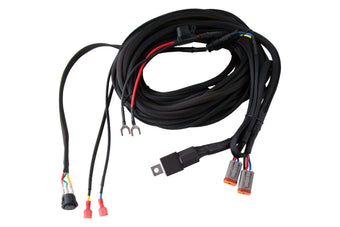

Easy Operation. This wiring harness allows you to connect your Diode Dynamics lights with backlight functionality to your vehicle's wiring for simple, everyday operation. When paired with our LED pods with a white main beam and red backlight, this harness allows your lights to operate as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.

This harness safely powers up to 5A of auxiliary lamps per DT connector. Please refer to the current draw data below.

• C1 Sport: 1.2A
• C1 Pro: 1.7A
• SSC2 Sport: 0.6A
• SSC2 Pro: 1.75A
• SS3 Sport Main Beam: 1.1A, Backlight: 0.03A
• SS3 Pro Main Beam: 2.7A, Backlight: 0.03A

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.

Features:

• Powers Diode Dynamics lights with backlight functionality.
• Connects to vehicle wiring for simple, everyday operation of lights.
• High capacity 14AWG & 18AWG wiring.
• Dual Deutsch DT output connectors.
• 10A waterproof fuse to safeguard the electrical systems in your lights.

In the Box:

• One (1) Universal Wiring Harness
• Ten (10) Zip Ties
• Two (2) T-Taps

Note: This is intended to be used with the 5-8 Pod SS5 Pro Crosslink Lightbars.
