Light Duty Dual Output 4-pin Wiring Harness
Light Duty Dual Output 4-pin Wiring Harness
SKU: SKU: DD4092
80 in stock
Couldn't load pickup availability
Product Details
Description

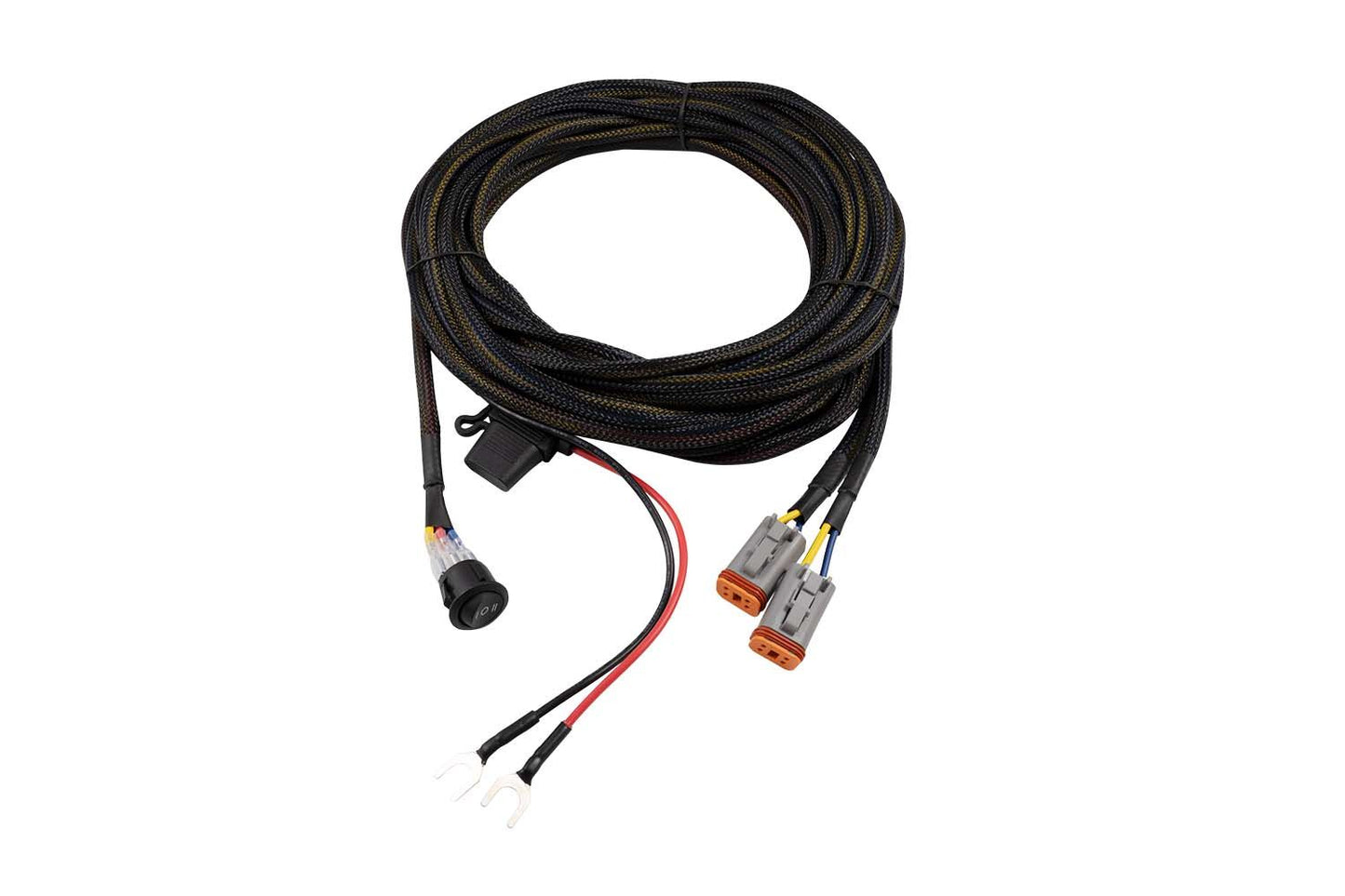

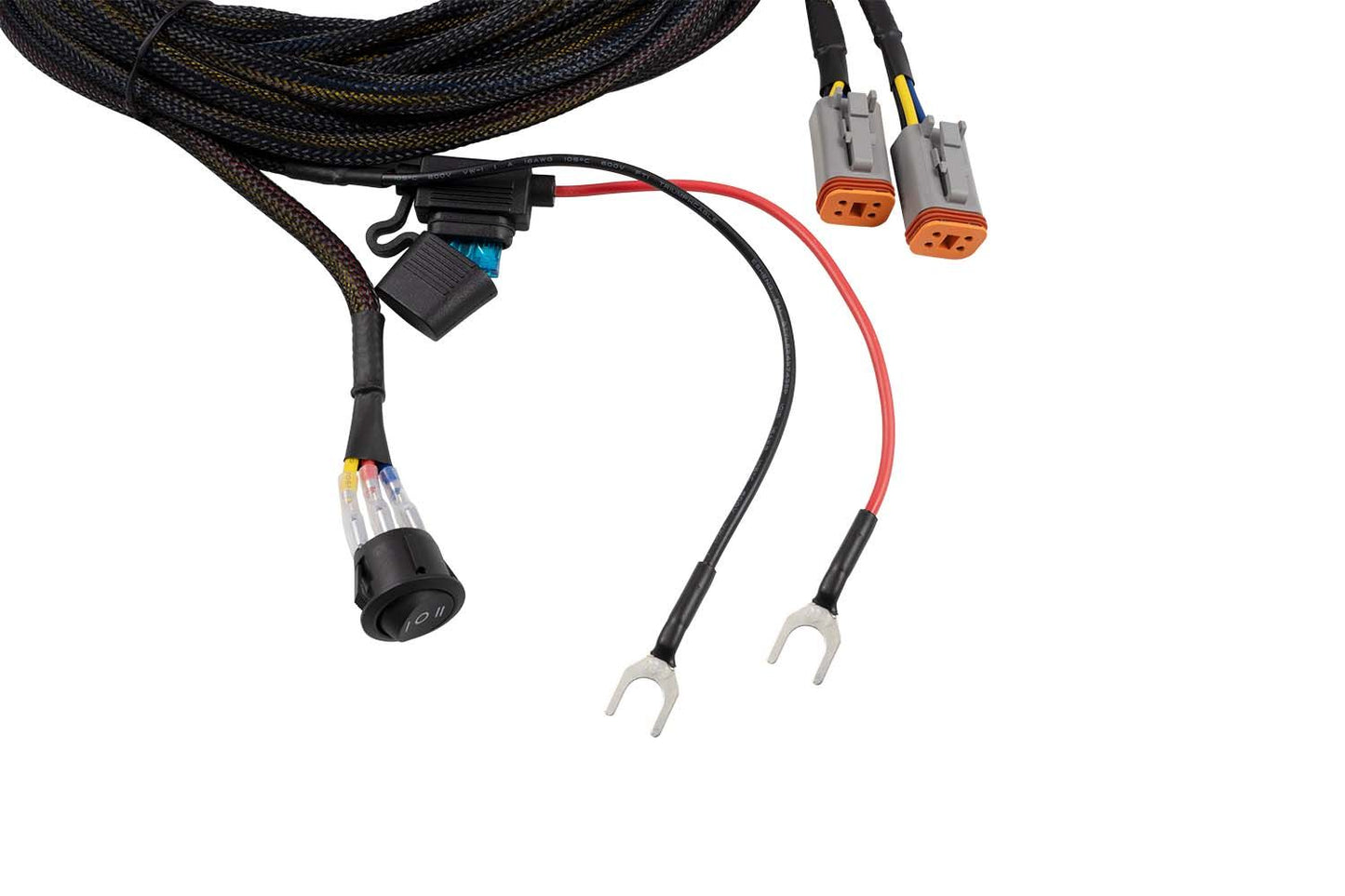

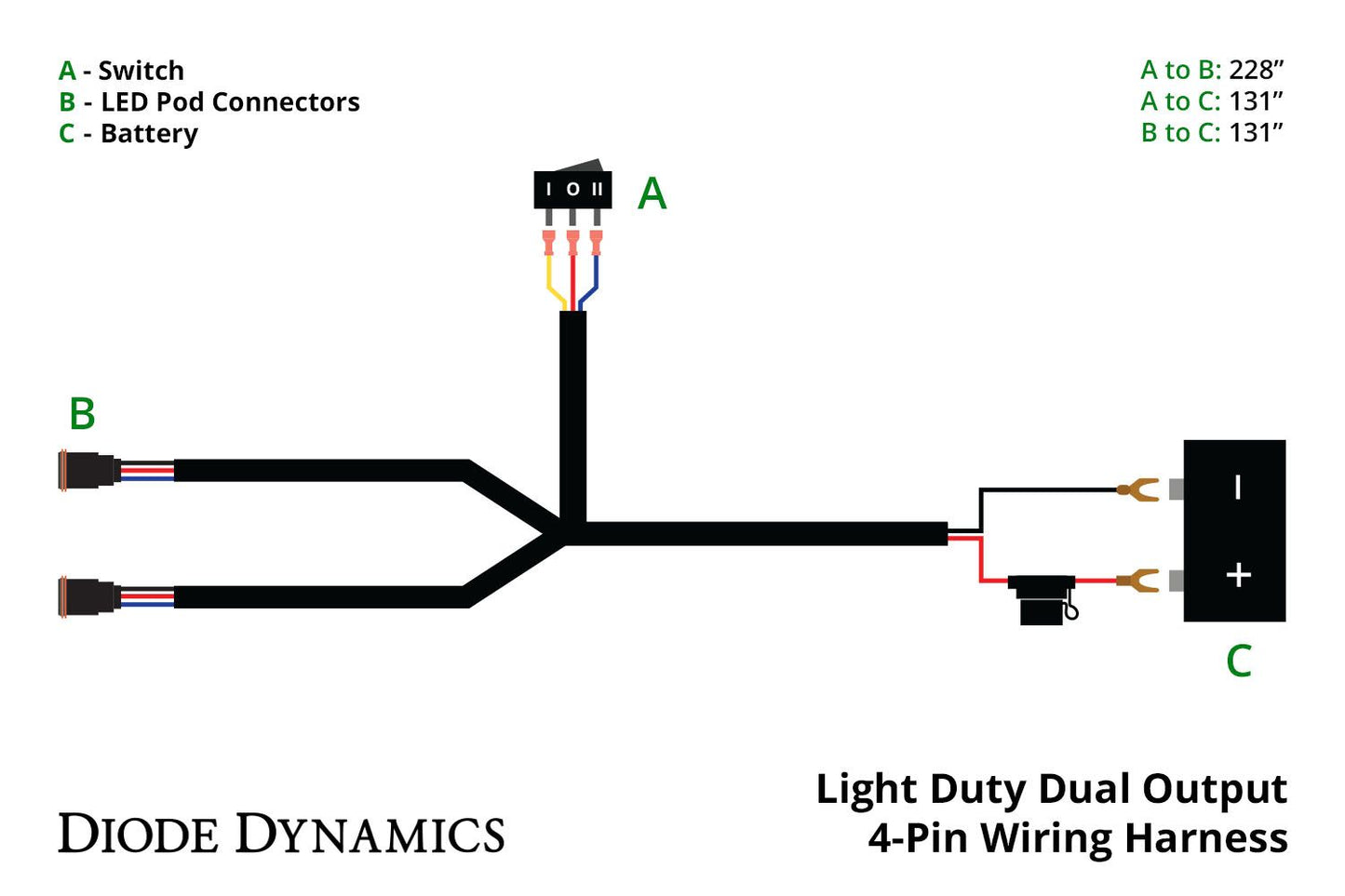

Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 16AWG wiring and Deutsch DT connectors for simple plug-and-play installation.
This harness safely powers up to 6A of auxiliary lamps. Please refer to the current draw data below.
- C1 Sport: 1.2A
- C1 Pro: 1.7A
- SSC2 Sport: 0.6A
- SSC2 Pro: 1.75A
- SS3 Sport Main Beam: 1.1A, Backlight: 0.03A
- SS3 Pro Main Beam: 2.7A, Backlight: 0.03A
- SS3 Max Main Beam: 3A, Backlight: 0.03A
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.
Features:
- Powers Diode Dynamics LED pods with backlight functionality.
- Connects directly to the battery to power your LED pods.
- High capacity 16AWG wiring.

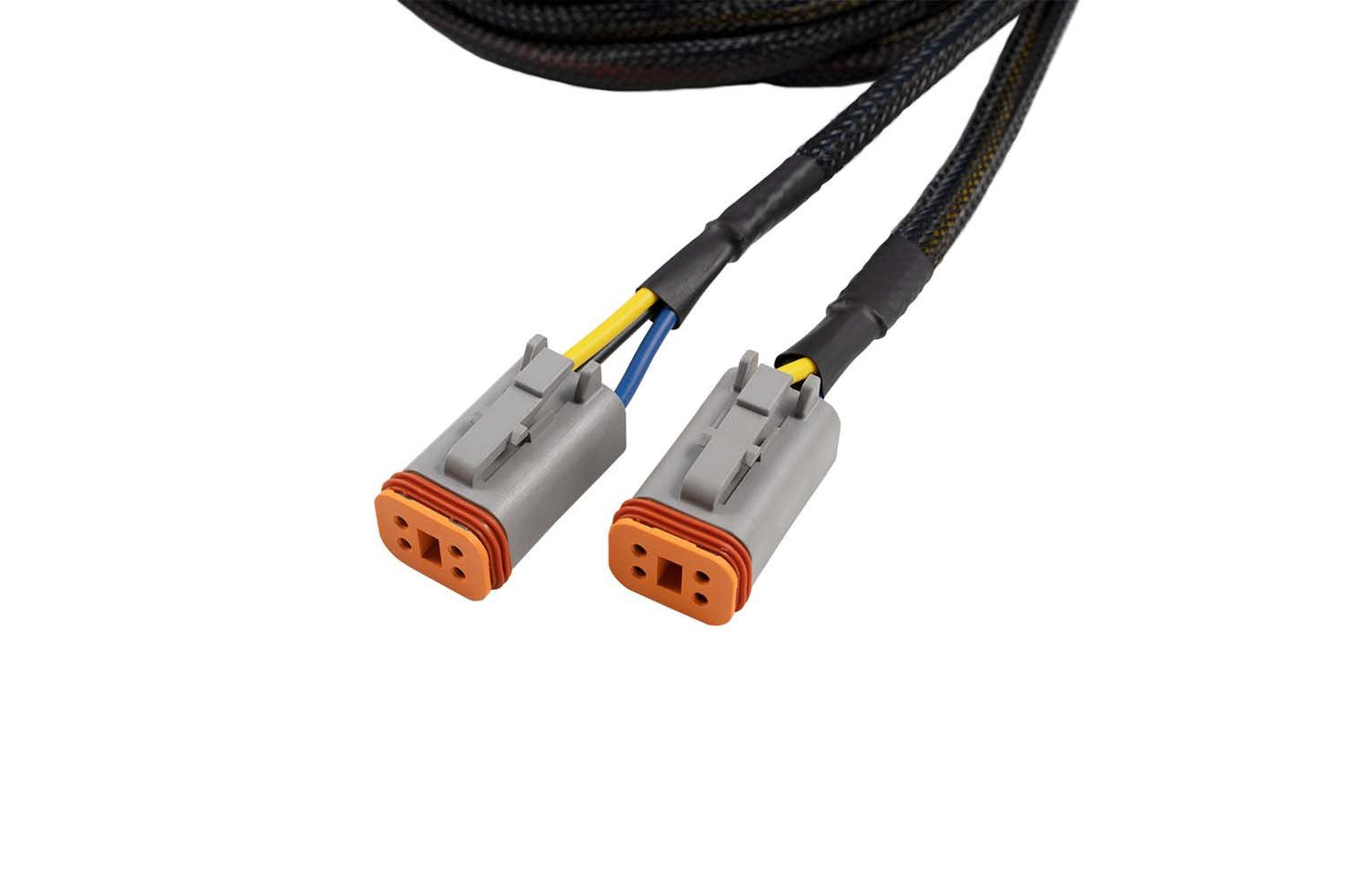

- Dual Deutsch DT output connectors.
- 15A waterproof fuse to safeguard the electrical systems in your pods.
In the Box:
- One (1) wiring harness
- One (1) toggle switch
Specs
| Light Duty Dual Output 4-pin Wiring Harness | |
|---|---|
| Operating Voltage | 9-16V |
| Wire Size | 16AWG |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Connector(s) | Deutsch DT Input |
Fitment
NOTE: This harness is intended to be used with our Stage Series pods with backlight functionality.
