XL-R Pro LED Auxiliary Light Pod - Universal
XL-R Pro LED Auxiliary Light Pod - Universal
SKU: SKU: 530001
Hurry up! Only 3 items in stock.
Couldn't load pickup availability
Product Details
Description
The Baja Designs XL-R Pro auxiliary light offers an exceptional balance of affordability and performance, making it the ideal choice for off-road enthusiasts. Equipped with a round outer bezel, the XL-R Pro utilizes Baja Designs' trademarked high-speed spot reflectors, delivering a longer and wider beam pattern. Featuring next-generation LEDs, this light outputs an impressive 4,095 raw lumens per light, providing the perfect auxiliary lighting for vehicles such as trucks, vans, UTVs, and motorcycles.
This single light kit comes with XL mounting hardware, allowing for quick and easy installation. Please note that the wiring harness is not included; compatible options are the 640115 (On/Off 3-pin) or 640119 (On/Off with Hi-Lo switch).
Lens Pattern Options:

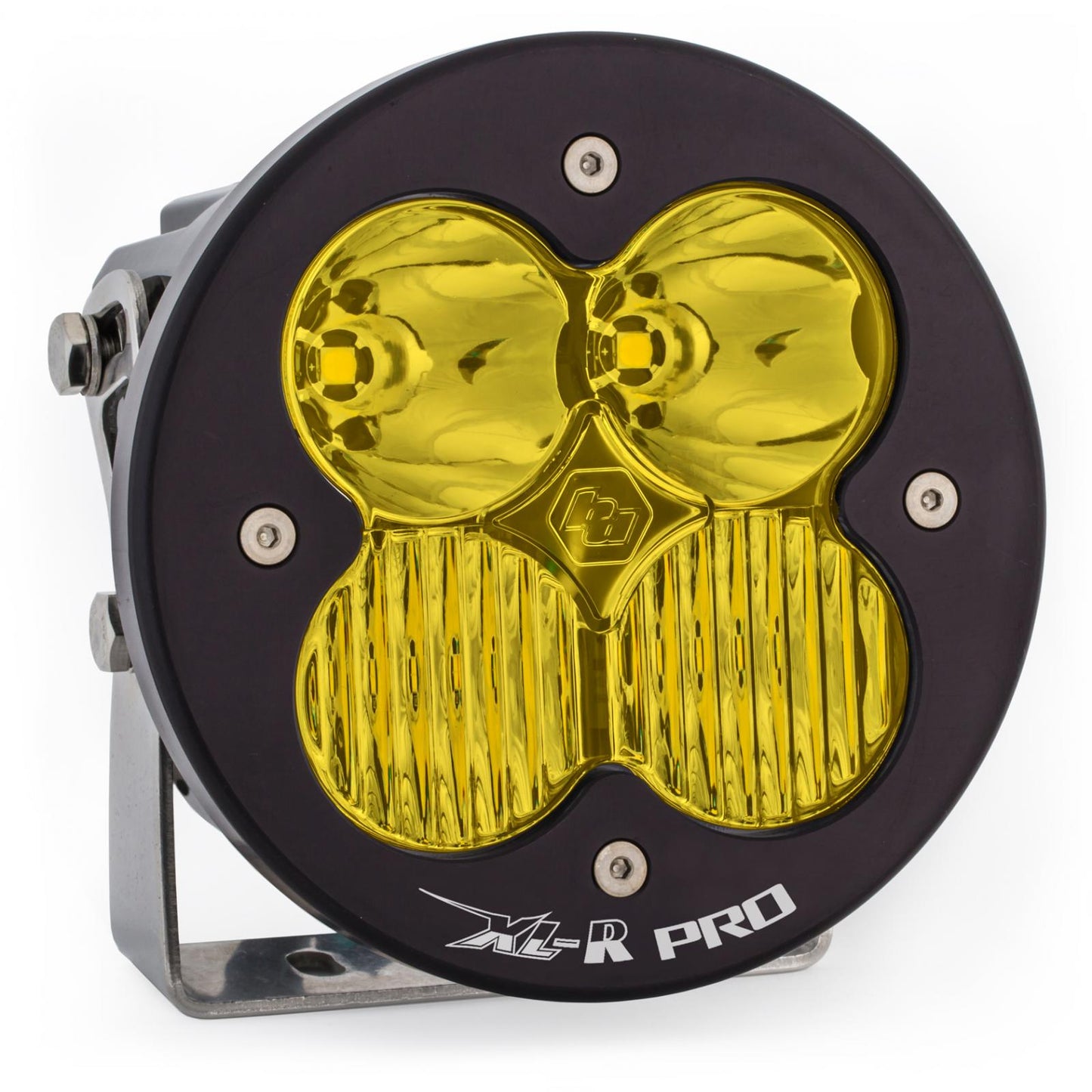

Driving Combo: Provides maximum trail coverage with a blend of driving and spot optics, ideal for near-field applications (zones 1 and 2) and distance (zone 3).
Spot: A focused 9-degree beam for long-distance illumination, designed to work with additional Wide Cornering and/or Driving Combo lights.

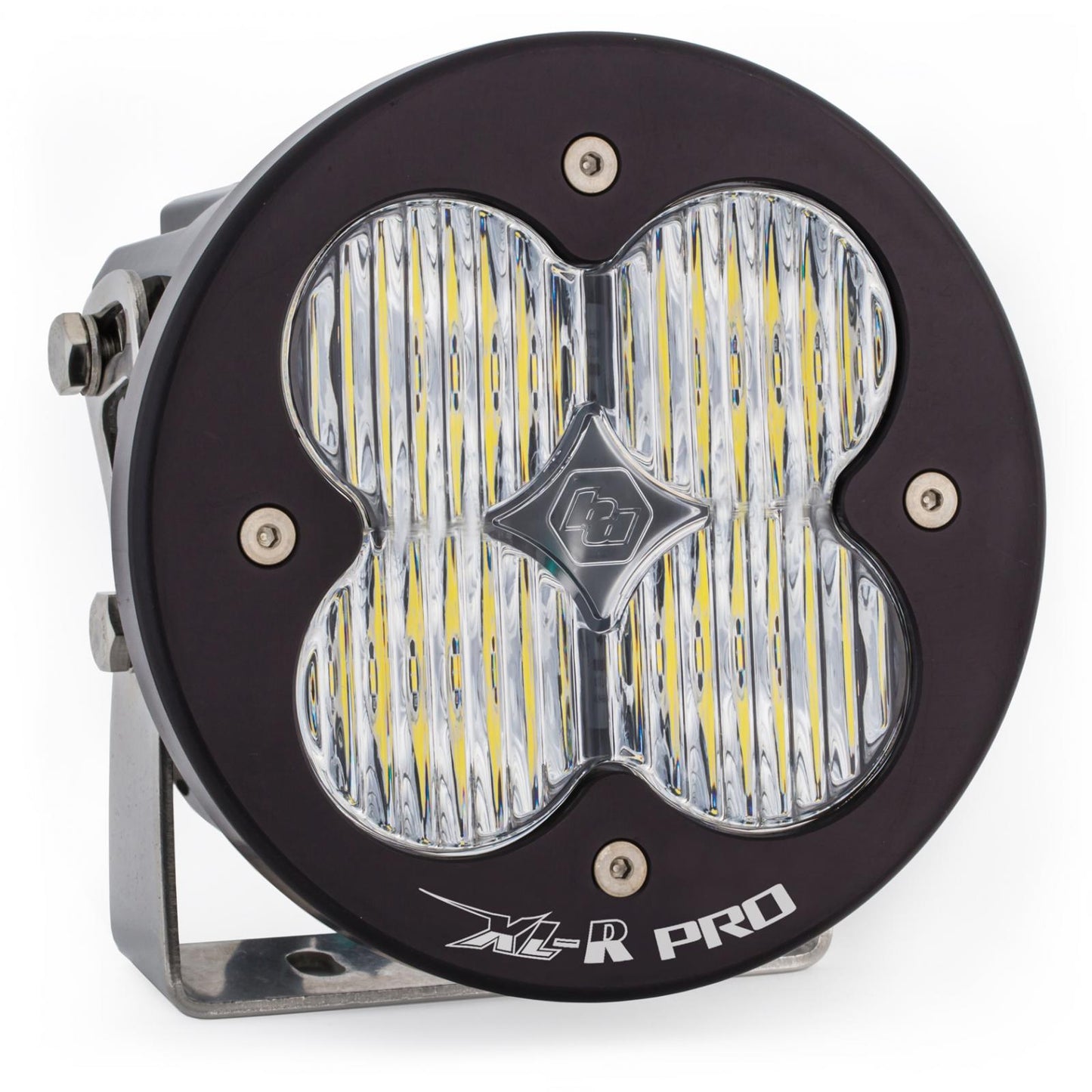

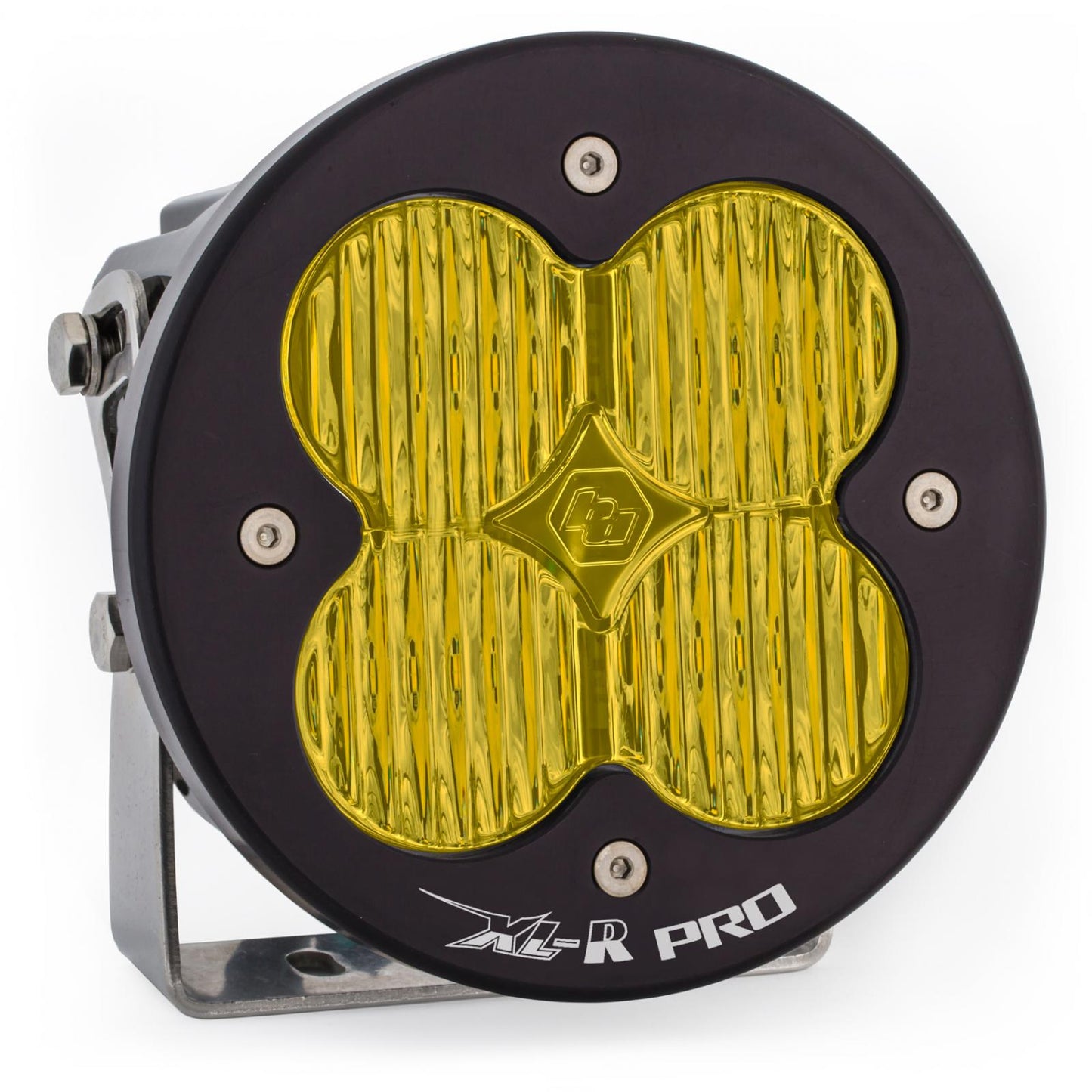

Wide Cornering: A 42-degree flattened horizontal beam that enhances peripheral visibility and reduces blind spots, perfect for navigating tight trails, inclement weather, and spotting obstacles on the trail.
Features:
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Baja Advantage:
- Satisfaction Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Includes:
- XL-R Pro LED Light
- Mounting Bracket
NOTE: This light does not come with a wiring harness. Make sure to “add” the applicable wiring harness 640115 (On/Off 3-pin) or 640119 (On/Off w/mode switch) for this light.
Specs
| Amperage Rating | 2.9 Amps |
| Average Rated Life | 49930 Hours |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness | 4900 Lumens |
| Depth | 3.65 " |
| Height | 5.24 " |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length | 5.24 " |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam|Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree XP-L LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL-R Pro LED Light Pod |
| Standards Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage | 40 W |
| Weight | 2.45 lbs |
| Wiring Harness Included | No |
Fitment
Universal
XL-R Pro LED Auxiliary Light Pod - Universal
XL-R Pro LED Auxiliary Light Pod - Universal
The Baja Designs XL-R Pro auxiliary light offers an exceptional balance of affordability and performance, making it the ideal choice for off-road enthusiasts. Equipped with a round outer bezel, the XL-R Pro utilizes Baja Designs' trademarked high-speed spot reflectors, delivering a longer and wider beam pattern. Featuring next-generation LEDs, this light outputs an impressive 4,095 raw lumens per light, providing the perfect auxiliary lighting for vehicles such as trucks, vans, UTVs, and motorcycles.
This single light kit comes with XL mounting hardware, allowing for quick and easy installation. Please note that the wiring harness is not included; compatible options are the 640115 (On/Off 3-pin) or 640119 (On/Off with Hi-Lo switch).
Lens Pattern Options:
Driving Combo: Provides maximum trail coverage with a blend of driving and spot optics, ideal for near-field applications (zones 1 and 2) and distance (zone 3).
Spot: A focused 9-degree beam for long-distance illumination, designed to work with additional Wide Cornering and/or Driving Combo lights.
Wide Cornering: A 42-degree flattened horizontal beam that enhances peripheral visibility and reduces blind spots, perfect for navigating tight trails, inclement weather, and spotting obstacles on the trail.
Features:
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Baja Advantage:
- Satisfaction Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Includes:
- XL-R Pro LED Light
- Mounting Bracket
NOTE: This light does not come with a wiring harness. Make sure to “add” the applicable wiring harness 640115 (On/Off 3-pin) or 640119 (On/Off w/mode switch) for this light.
