XL-R 80 LED Auxiliary Light Pod - Universal
XL-R 80 LED Auxiliary Light Pod - Universal
SKU: SKU: 760013
Hurry up! Only 3 items in stock.
Couldn't load pickup availability
Product Details
Description
The Baja Designs XL-R 80 auxiliary LED light takes your off-road lighting to the next level, offering superior visibility and increased brightness. Using our trademarked high-speed spot reflectors, the XL-R 80 delivers a longer and wider beam pattern. This powerful next-generation LED technology provides 18% greater distance and increased intensity over our previous model, pushing an impressive 9,022 raw lumens per light. Perfect for any off-road vehicle, including trucks, vans, UTVs, and motorcycles.
Similar to the XL Pro model, the XL-R 80 features a 20% dimming option, a powder-coated housing, and an anodized bezel.
Lens Pattern Options:

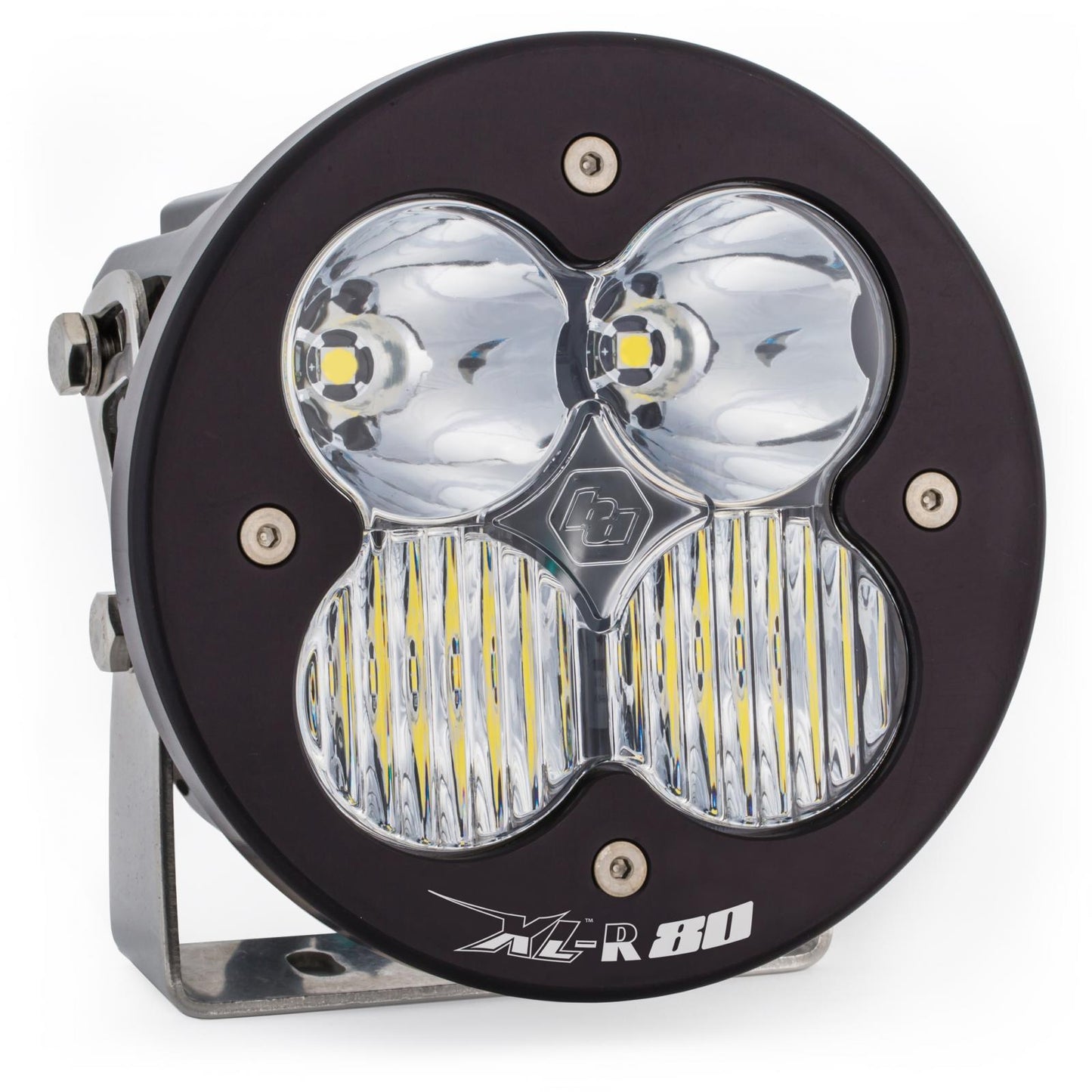

Driving Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

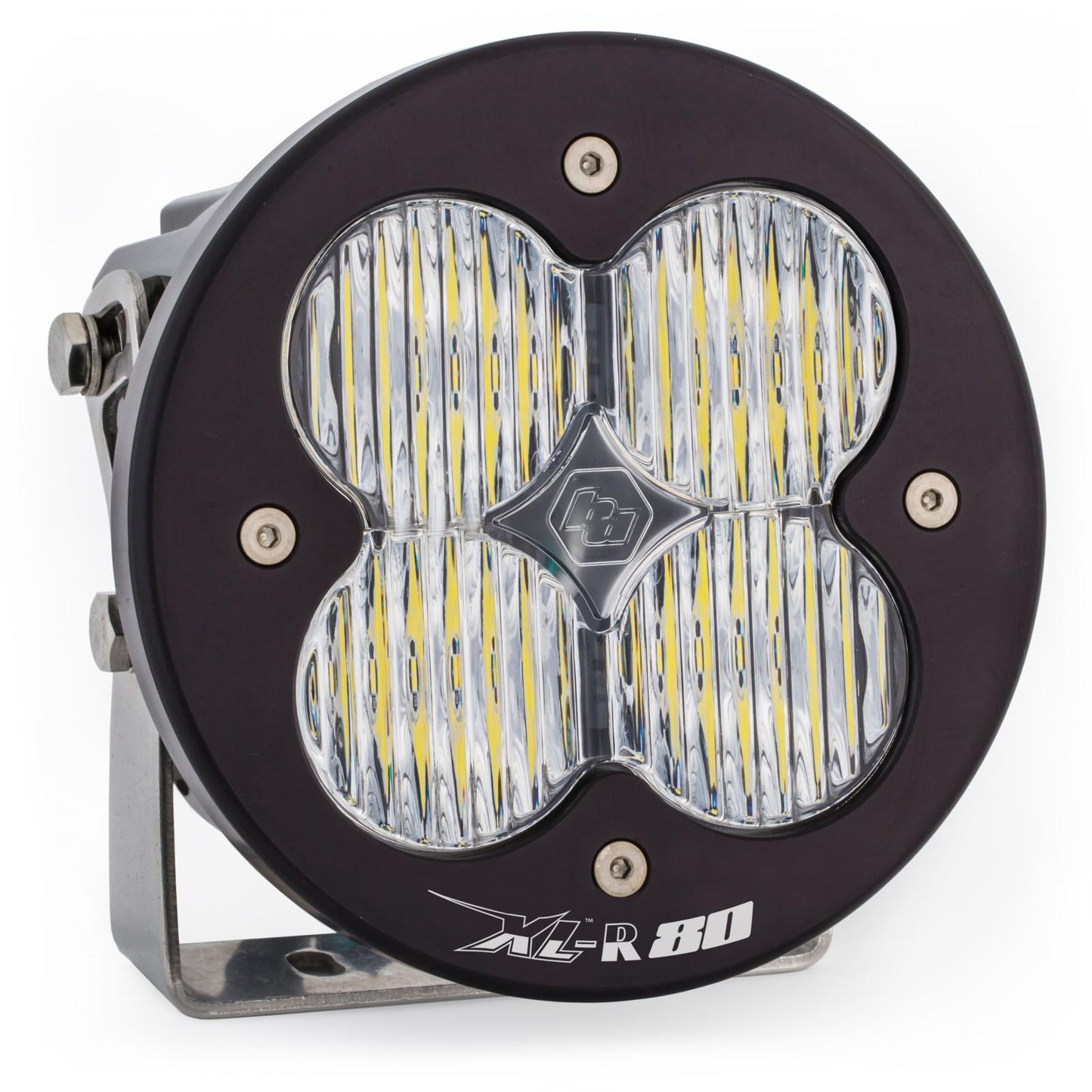

Wide Cornering: The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
Lens Color:
Clear: The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.

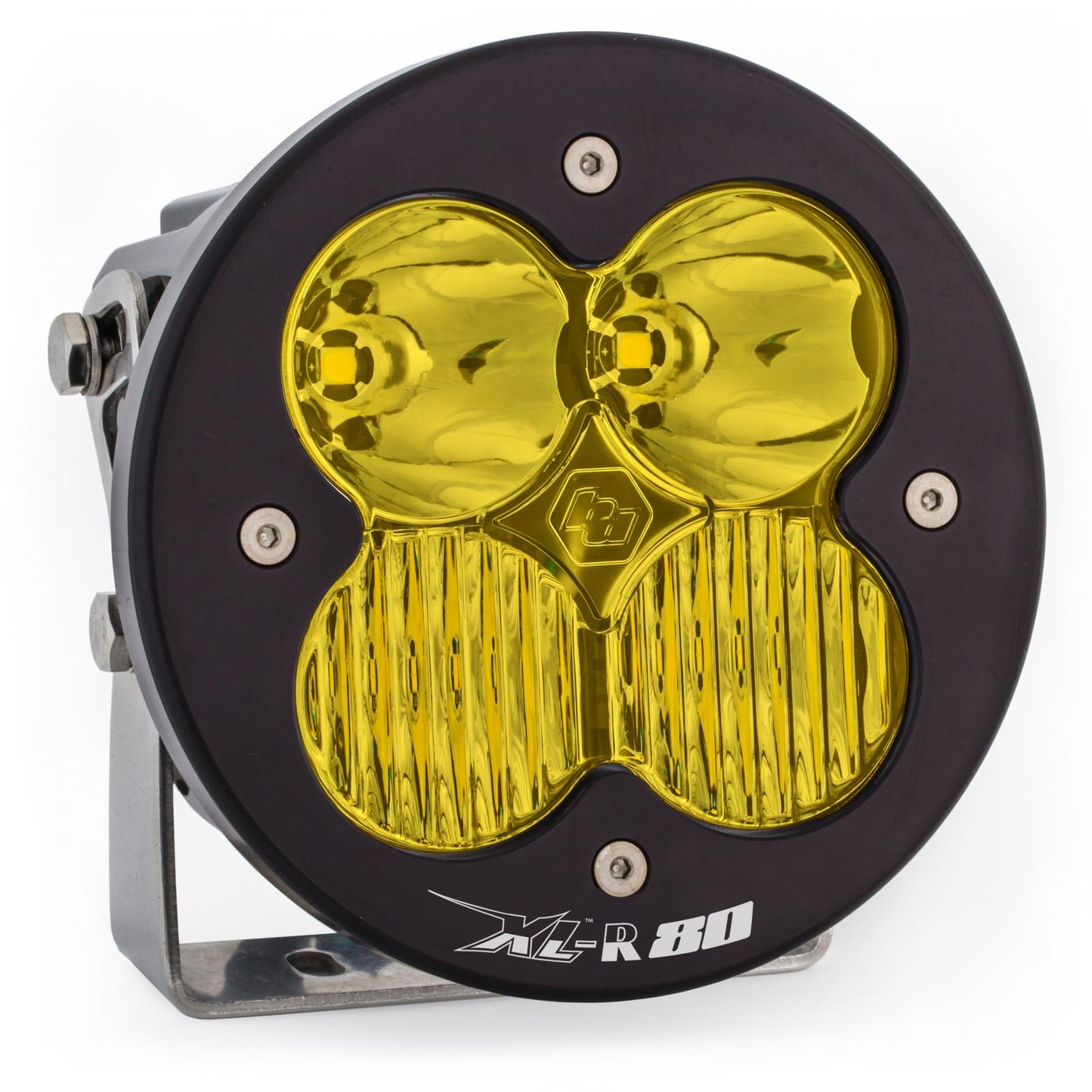

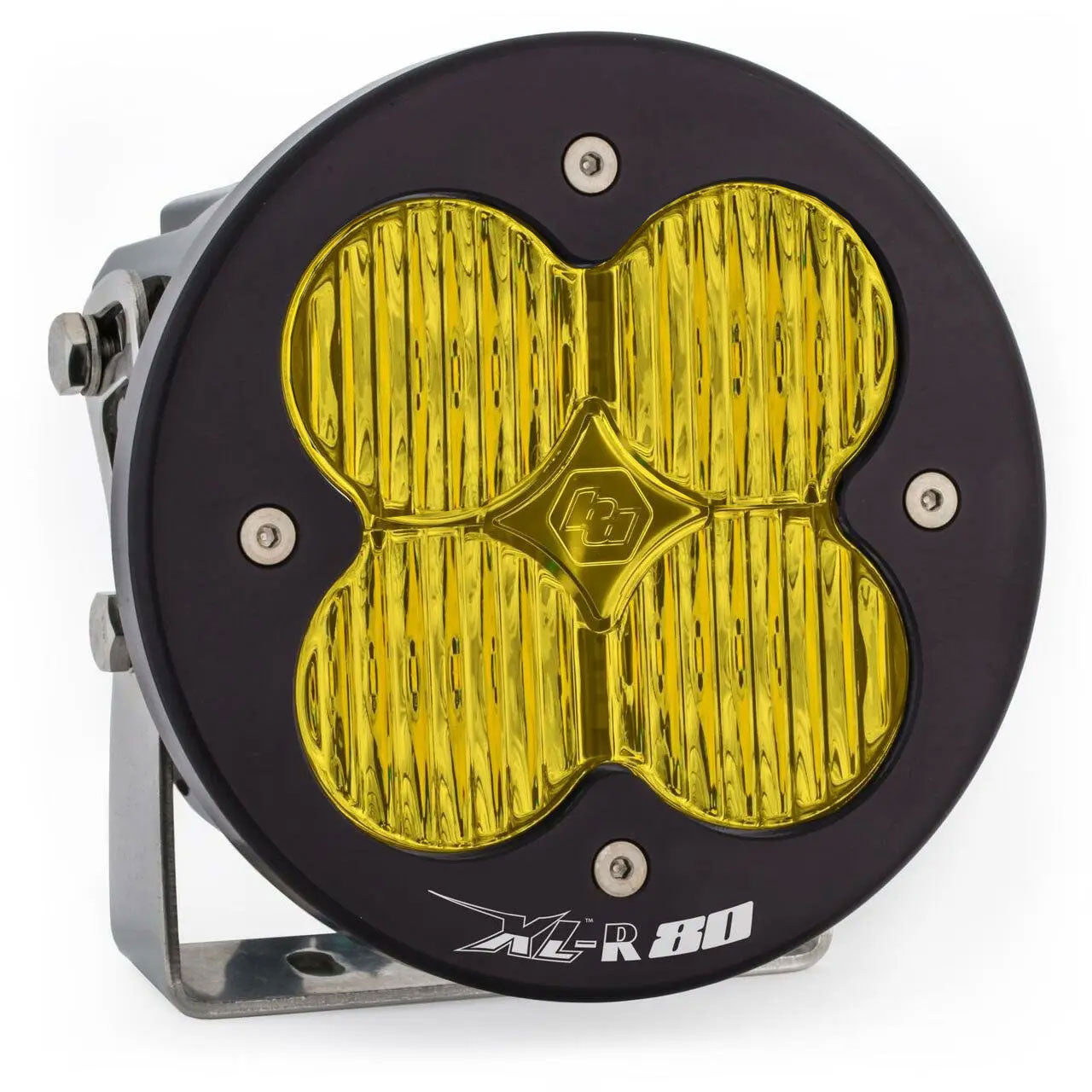

Baja Amber: This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
Features:
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Baja Advantage:
- Satisfaction Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Includes:
- XL-R 80 LED Light
- Mounting Bracket
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640115.
Specs
| XL-R 80 LED Auxiliary Light Pod | |
|---|---|
| Amperage Rating (A) | 5.5 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo / Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9,500 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear or Baja Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL-R 80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 80 |
| Wiring Harness Included | No |
Fitment
Universal
