Stealth Bumper Lightbar Kit for 2019-2024 Ram 1500

Perfect fitment. The Stealth LED Light Bar Kit for the 2019-2023 1500 from Diode Dynamics allows you to easily mount a 18" light bar in the factory lower bumper opening. These application-specific brackets were CAD-designed to install using factory mounting points. This kit retains the factory lower grille for a clean, OEM-like appearance.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 18" Combo Light Bar features a flood lens in the middle with two driving lenses on the outer edges.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.

Features:

• Direct fitment on 2019-2024 Ram 1500.

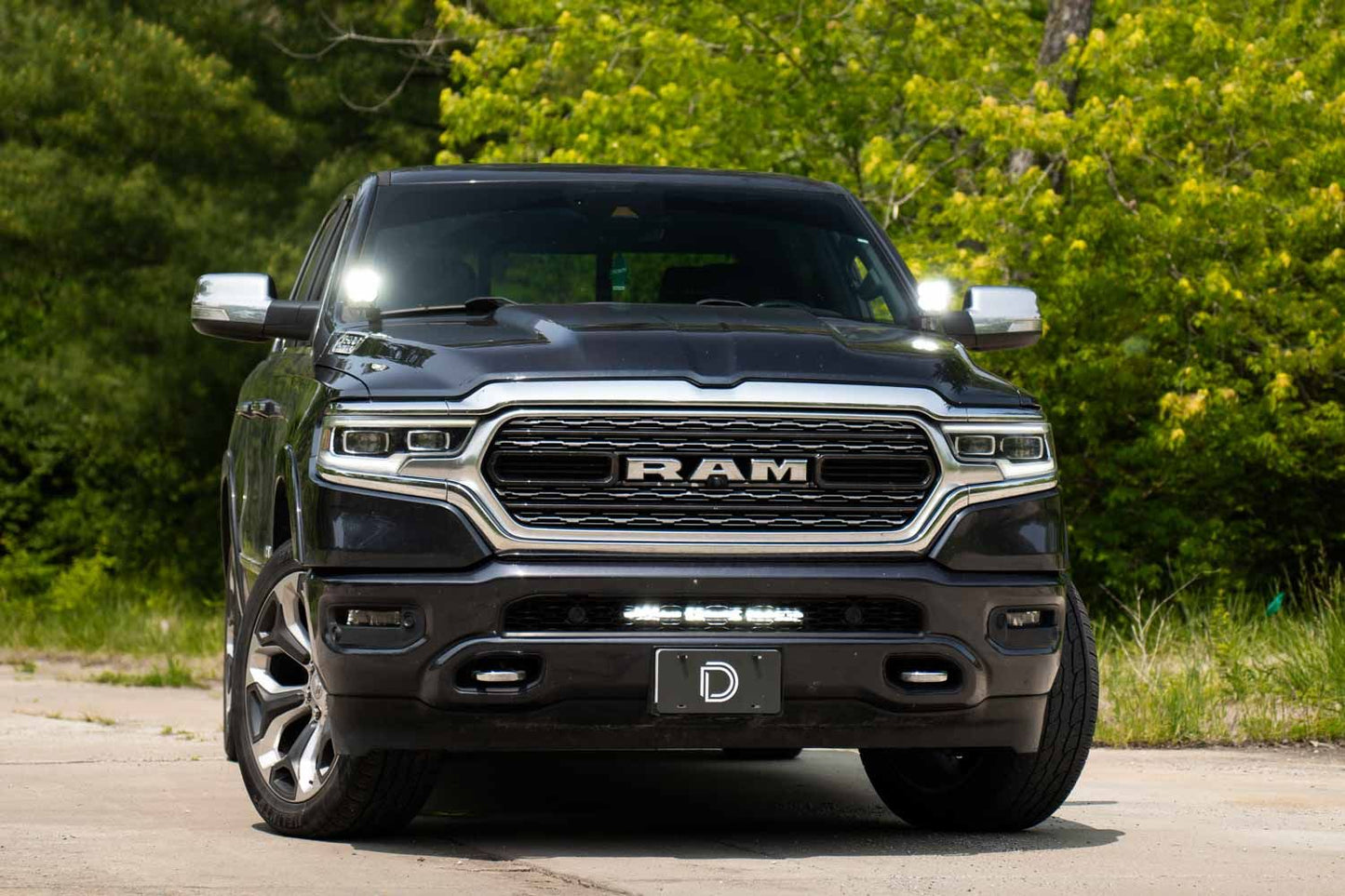

• Allows you to mount one 18" light bar in the lower bumper opening.
• CAD-designed for perfect fitment and OEM-like appearance.
• Utilizes existing mounting points for easy installation.
• Highly durable powdercoated steel construction.
• Plug-and-play wiring harness included to power light bars.

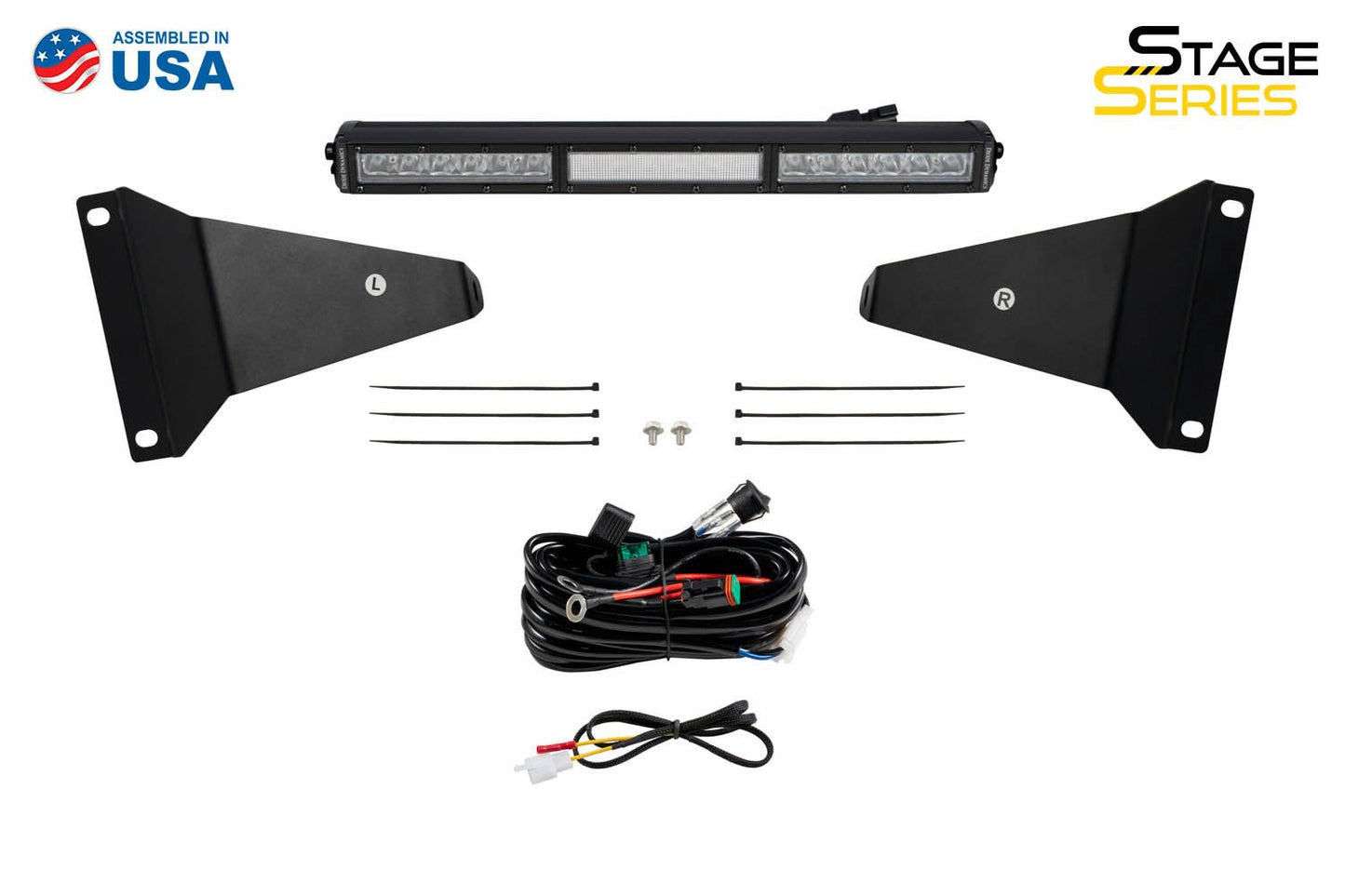

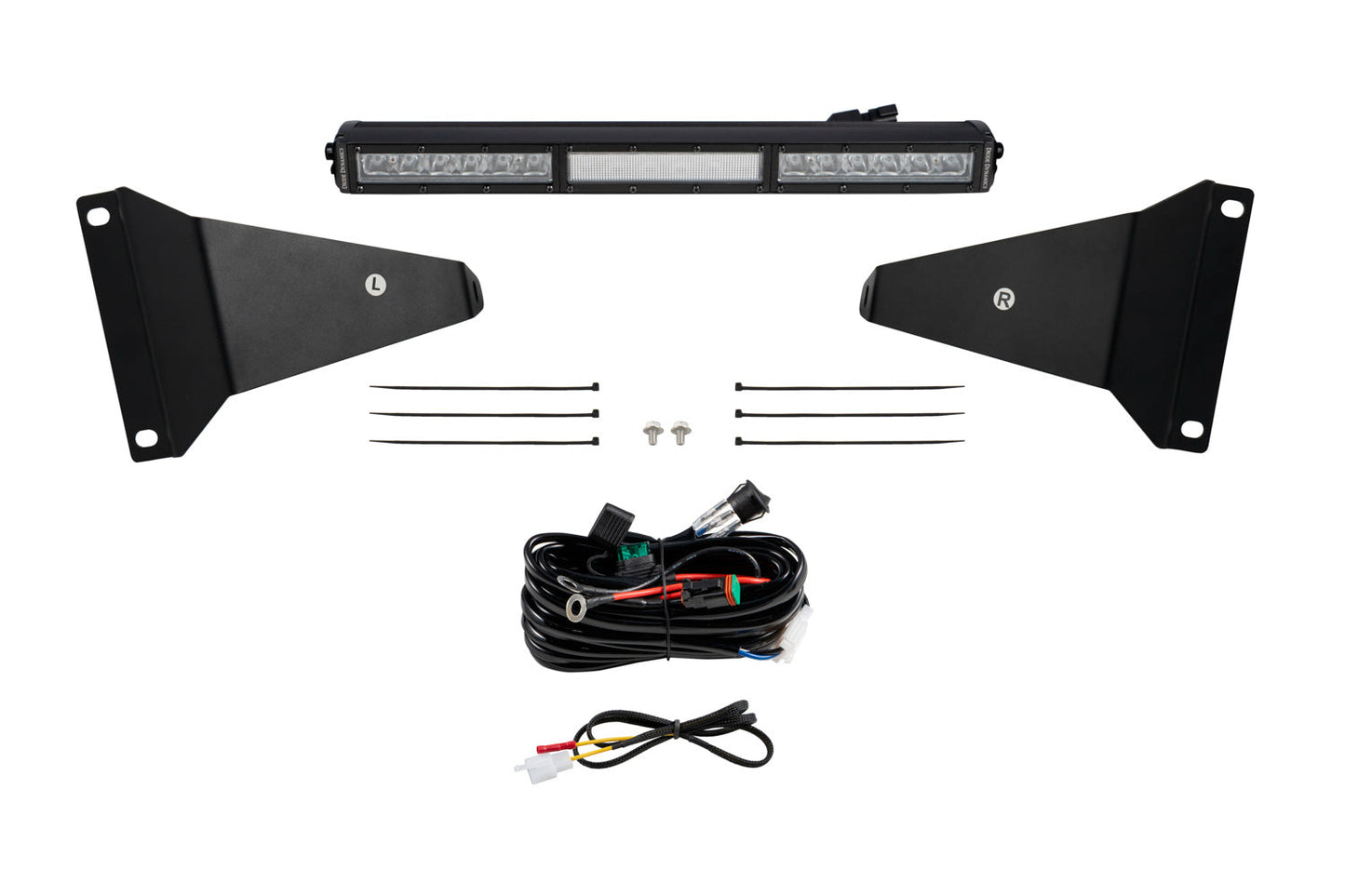

In the Box:

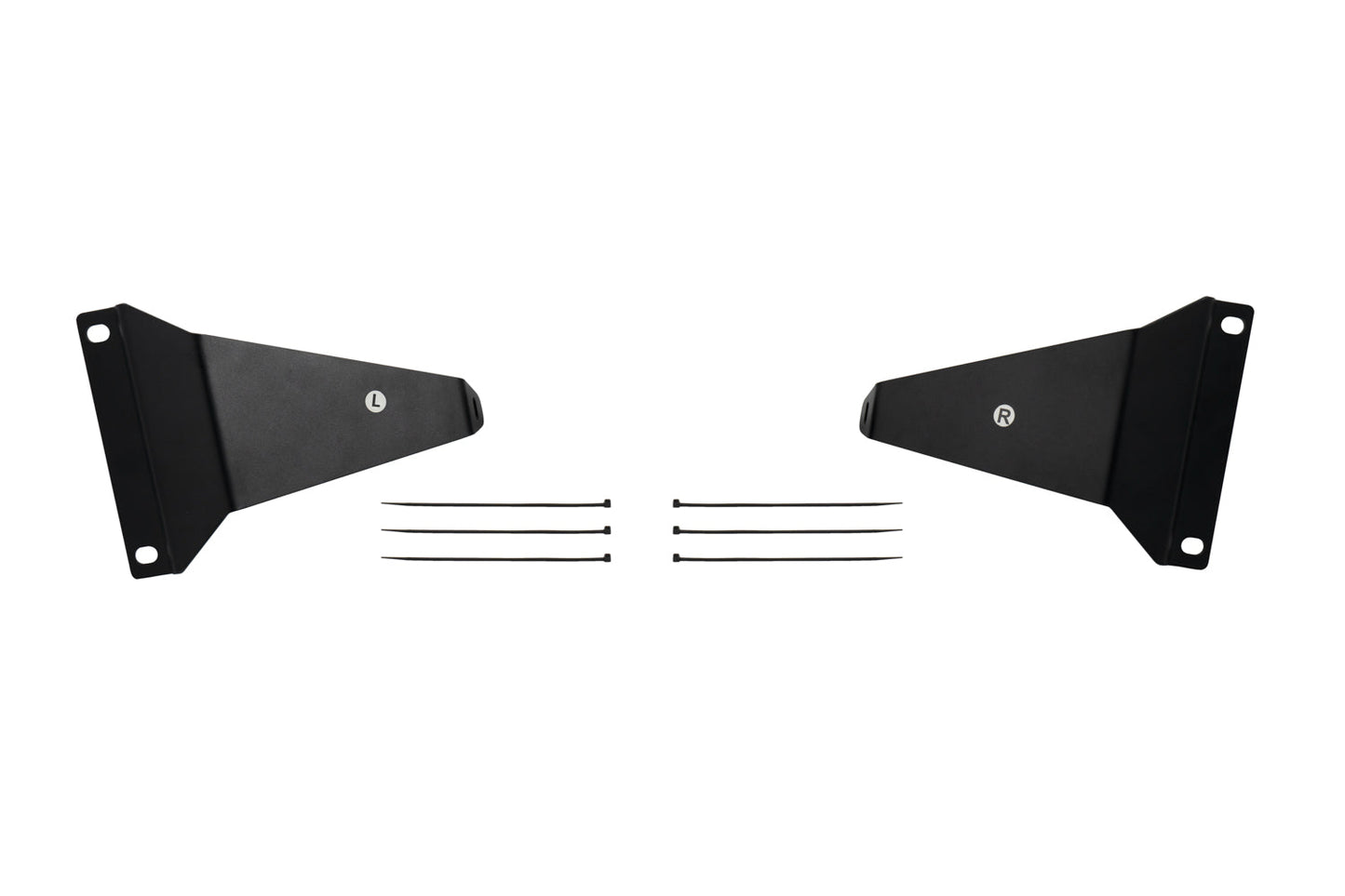

• One (1) Stealth SS18 Bracket Kit for 2019-2024 Ram 1500
• One (1) SS18 Stage Series 18" Light Bar
• One (1) Heavy Duty Lightbar Wiring Harness
• Installation Guide

Stealth Bumper Lightbar Kit
Beam Angle	Combo (Driving and Flood)
Power (watts)	137.2
Operating Voltage	9-24V
Current (amps @ 14V)	9.8
Polarity	Polarity Specific
Operating Temperature	-40°C to 85°C (-40°F to 185°F)
LED Emitter	Luxeon Z ES
Connector(s)	Deutsch DT Input, Spade Terminals
Materials	Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
Cooling	Passive, heatsink
Intrusion Ratings	IP68 Waterproof

2019-2024 Ram 1500

NOTE: This kit is not compatible with the TRX or Rebel trim levels, or models that are equipped with lower active shutters. If your truck uses a solid lower grille, you will need to retrofit a vented lower grille for proper fitment.

This kit cannot be installed alongside the SS5 Grille Crosslink Lightbar Kit or the SS5 Bumper LED Pod Light Kit for the 2019+ Ram 1500.
