Stage Series Universal Rock Light SXS Installer Kit (8-pack)

Introducing the Stage Series Rock Light SXS Installer Kit from Diode Dynamics! This kit includes everything you need to install four rock lights in the wheel wells of your UTV. Stage Series Rock Lights set a new standard in the rock light category. These USA-assembled units offer unmatched light output in a compact size, making them the perfect solution to add more light underneath your Side-by-Side.

Unmatched Light Output. With a true power draw of over 10 watts, the Stage Series White Diffused Rock Light provides a peak output of 1000 lumens. Even with claims of high power, generic rock lights run at only a few watts, making the Diode Dynamics Rock Light a huge step up for the entire category.

Optically-Engineered, Interchangeable Lenses. Most rock lights are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we've incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? The lenses are interchangeable, and can be swapped out easily, with either clear or diffused options.

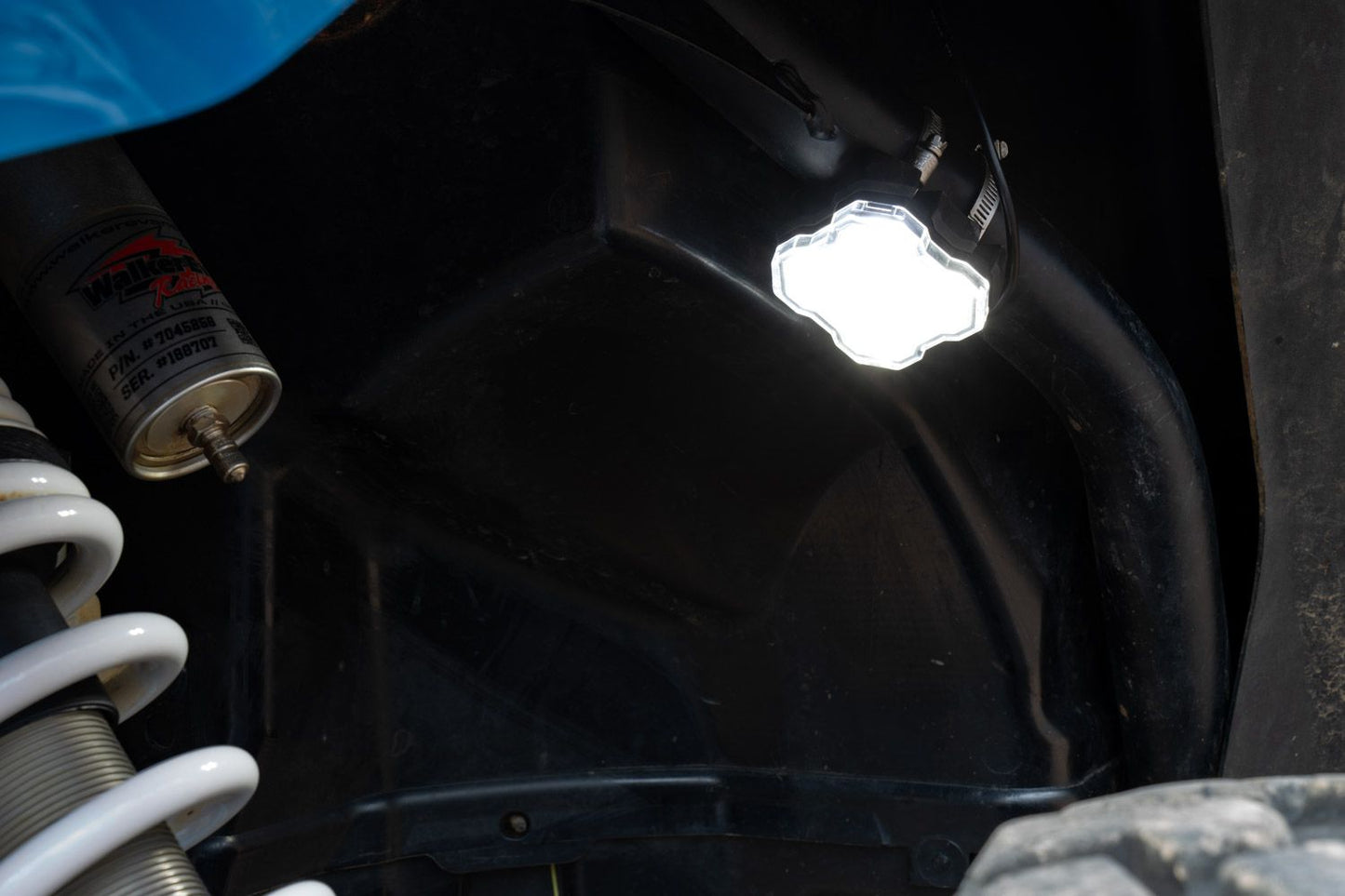

Easy Install. The included roll bar mounts allow you to easily mount our Stage Series Rock Lights in the wheel wells of your SXS. Using the included clamps, simply mount the rock lights to the main frame support bars in the wheel wells!

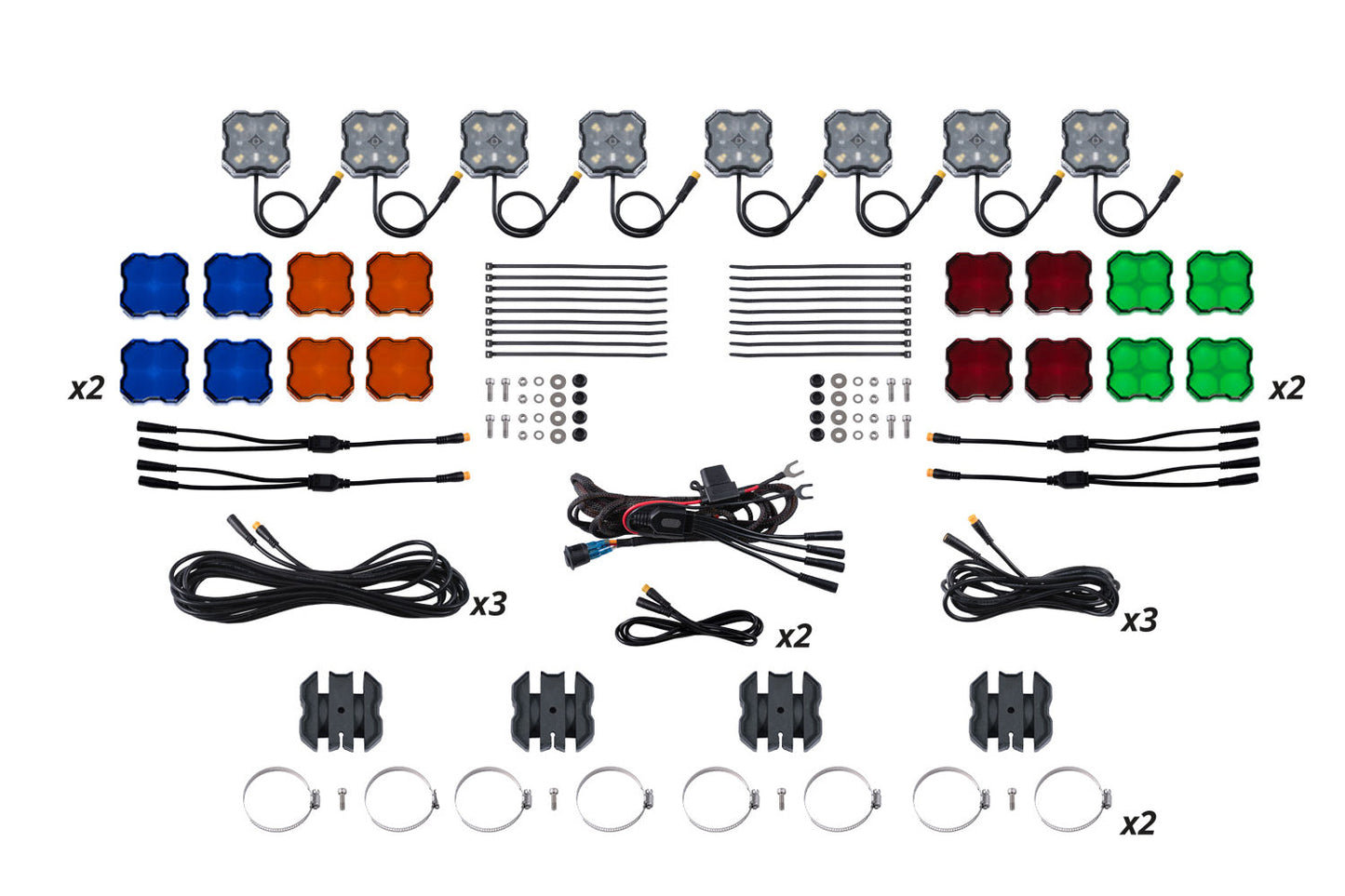

Choose Your Color. The Stage Series Rock Light SXS Installer Kit is available in either cool white or RGBW multicolor. Both kits come standard with diffused lenses, providing excellent integration and light spread. White is a great option to get the maximum output possible. If you're looking for more options, along with strobing, fading, and custom patterns, you'll want to check out our RGBW Multicolor version!

Simple Connections. For maximum convenience, these kits include a waterproof M8 barrel-style connector with a 10-inch lead. This provides a secure, waterproof connection with the plug-and-play harnesses. At only 8mm in diameter, it's still easy to route the wires to where you need them.

Proven Reliability. We know your rock lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited lifetime warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Rock Lights will handle whatever you throw at them.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions.

Features

• High-intensity light output
• Aluminum heatsink with signature Ico Bezel shape
• Thick, durable lenses, engineered to spread light
• Engineered and Assembled in USA

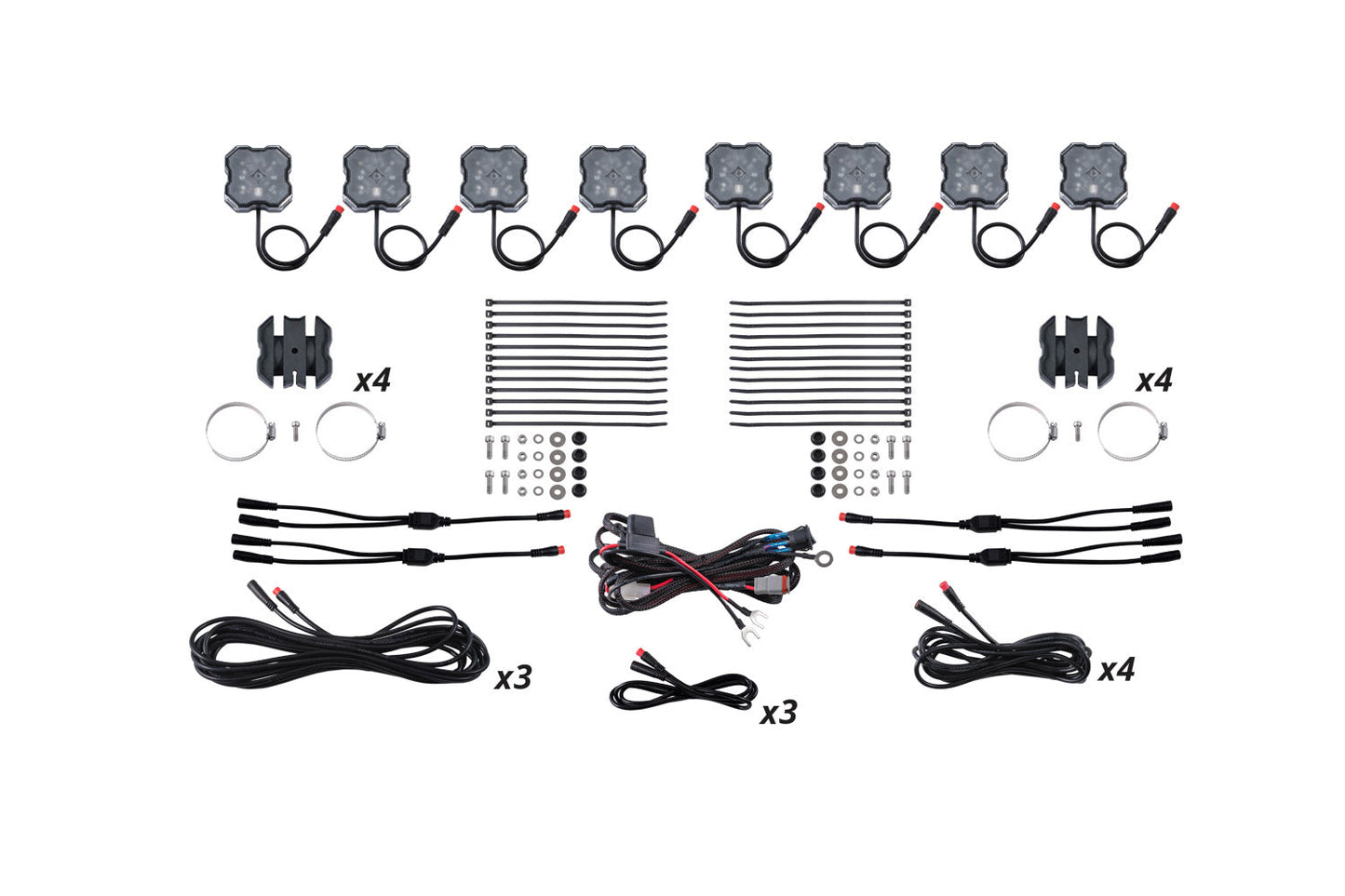

Included in the box:

• Eight (8) Stage Series White Diffused Rock Lights
• One (1) Rock Light Wiring Harness
• Eight (8) Rock Light Tube Mount Adapters
• One (1) 1M Extension
• Four (4) 3M Extensions
• Three (3) 5M Extensions
• Twenty-Four (24) Zip Ties
• Installation guide

Stage Series Universal Rock Light
Color Temp (CCT)	5700K
Beam Angle	Round, 60°
Power (watts)	High Power: 10, Low Power: 2.5, RGBW: 4.596
Operating Voltage	9-16V
Current (amps @ 13.2V)	High Power: 0.8, Low Power: 0.2, RGBW: 0.36
Wire Size	28AWG
Polarity	Polarity Specific
Operating Temperature	-40C to 85C (-40F to 185F)
LED Emitter	Lumileds Z ES
Driver Features	Linear Regulated
Materials	UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling	Passive, Pin-Fin heatsink
Compliance Ratings	SAE J575 Durability Test
Intrusion Ratings	IP68 Waterproof
Product Dimensions (in)	2.4 x 2.4 x 0.6

Universal
