Stage Series RGBW LED Rock Light Kit (12-pack)

Looking to light up the trail at night? Look no further. Introducing the Stage Series LED Rock Light Installer Kit! Designed for superior durability and maximum performance Stage Series LED Rock Lights have set a new standard in the offroad category.

This kit includes all the wiring and hardware necessary to mount eight Stage Series LED rock lights making it easier than ever to add rock lights to your vehicle.

Single-Color or RGBW. The Stage Series Rock Lights in this kit are available in a single-color or multicolor output. Our single-color Stage Series Rock Lights provide a peak output of 800 lumens with a true power draw of over 10 watts illuminating in a 5700K color temperature.

Our RGBW LED Rock Lights provide plenty of output in any color you can think of. Thanks to the independent white chip these RGBW LED rock lights will also light up in a bright pure white color when you want to maximize output.

Mount it Your Way. Our Rock Light Installer Kit can be mounted using the center bolt mounting point that is neatly hidden underneath the lens and comes standard or you can select the magnet mount option.

Our magnet mounts feature an overmolded design that keeps your rock light secure using the integrated mounting hole. With N42 magnets providing an approximate pull/holding force of 35lbs you can rest assured that the magnet won't go anywhere!

Features

• Allows you to mount eight rock lights under your vehicle.
• Convenient center-mount or magnet mount installation.
• Available in single-color or multicolor output.
• Includes all necessary wiring and mounting hardware.

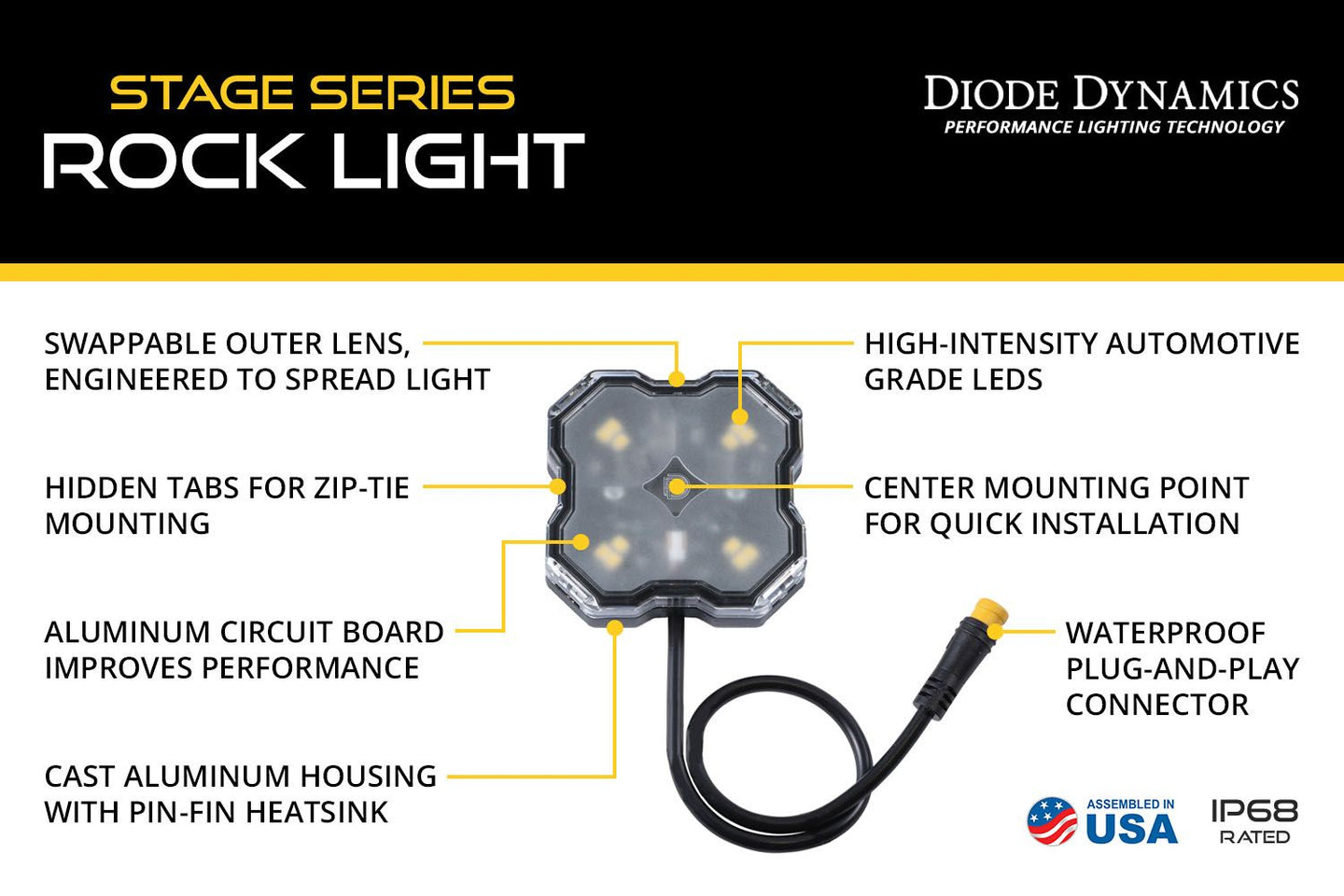

• Aluminum heatsink with signature Ico Bezel shape.
• Thick durable lenses engineered to spread light.
• Engineered and Assembled in USA.

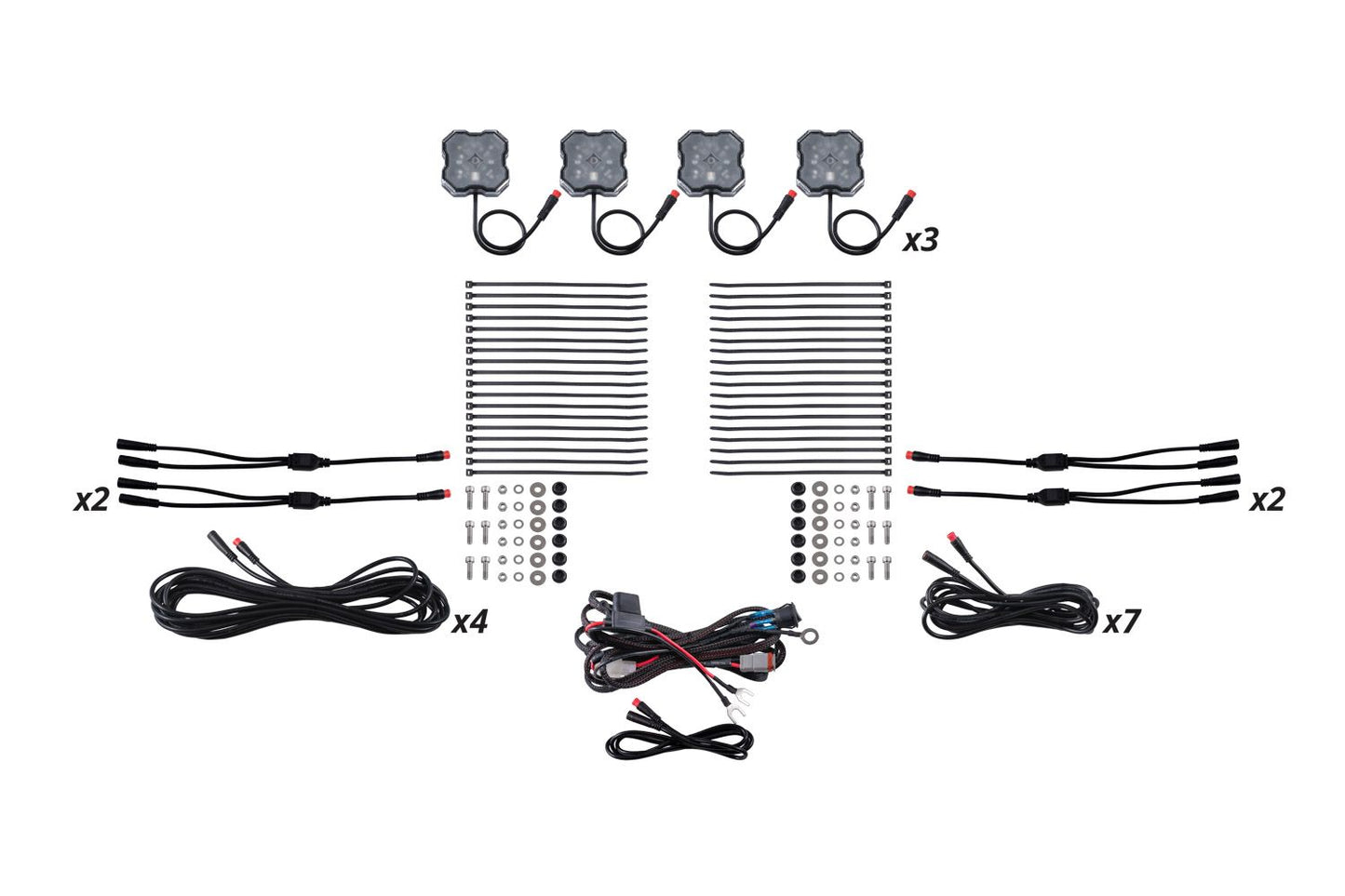

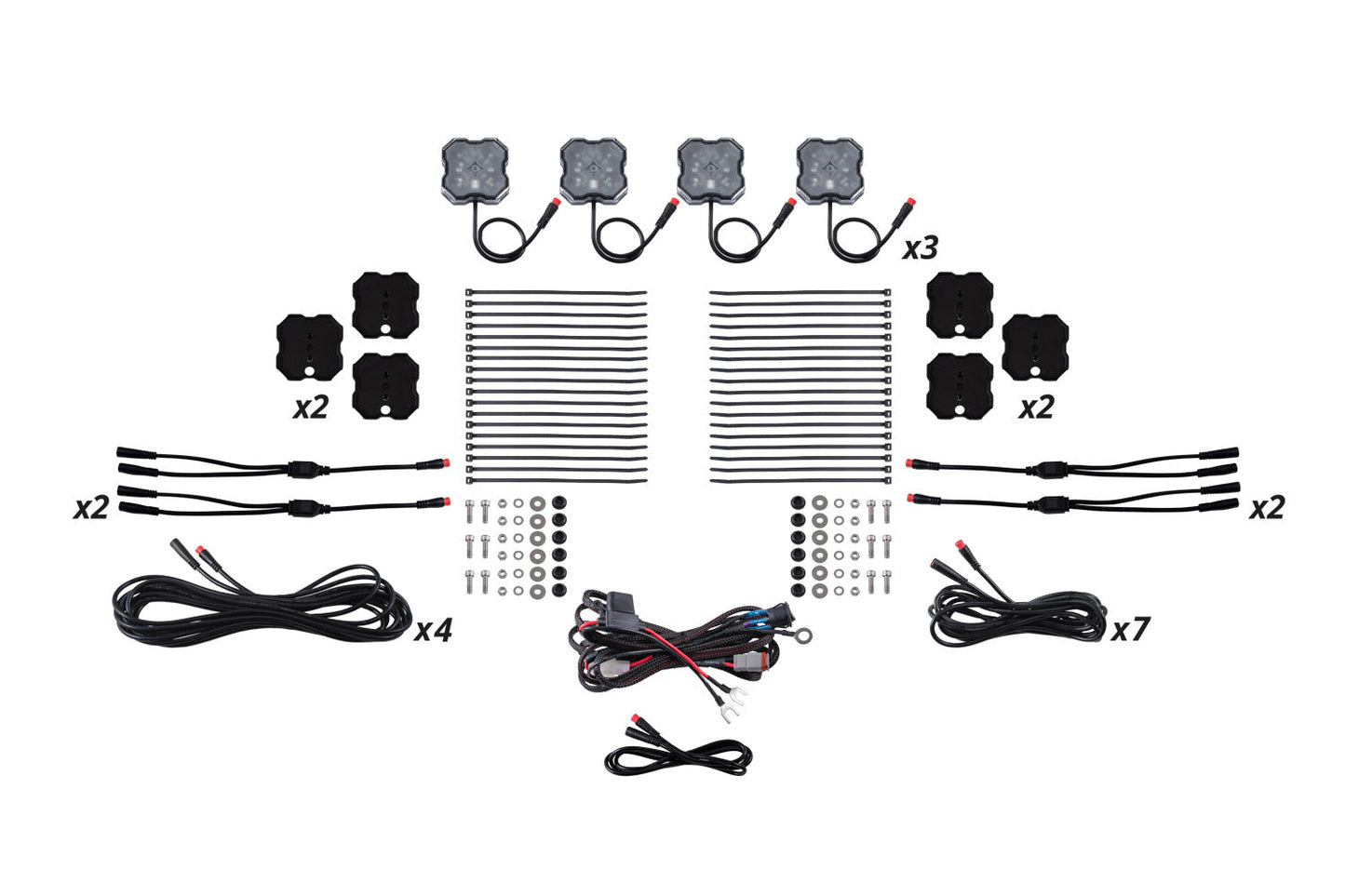

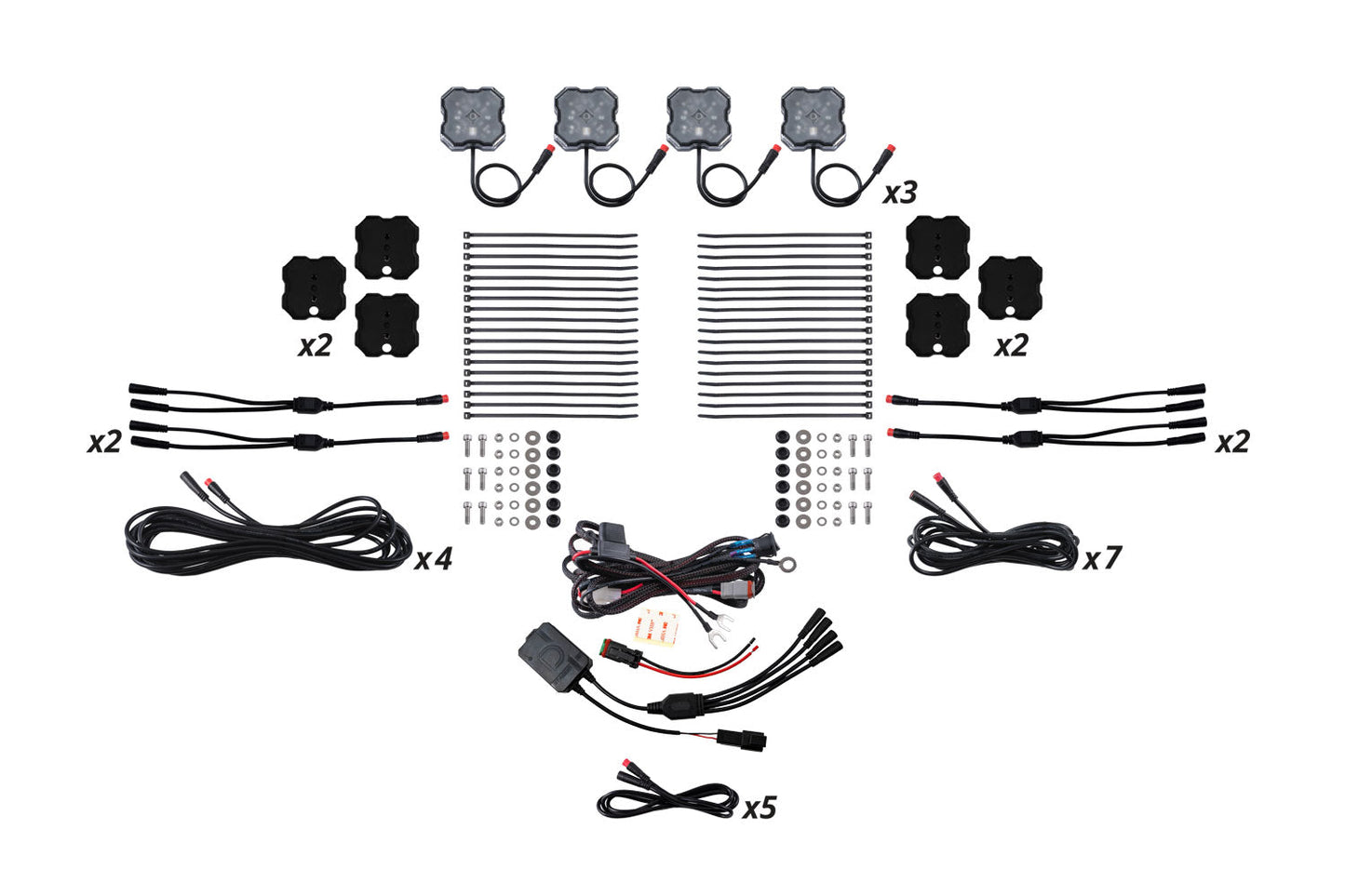

Included in the box:

• Twelve (12) Stage Series RGBW Rock Lights
• Twelve (12) Rock Light Hardware Kits
• One (1) Rock Light RGBW wiring harness
• One (1) 1M Extensions
• Seven (7) 3M Extensions
• Four (4) 5M Extensions
• Eight (8) M8 Splitters
• Eighteen (18) Zip Ties
• Installation guide

Stage Series RGBW LED Rock Light Kit
Beam Angle	Round, 60°
Power (watts)	4.8
Current (amps @ 13.2V)	0.36
Wire Size	28AWG
Polarity	Polarity Specific
Operating Temperature	-40C to 85C (-40F to 185F)
LED Emitter	Lumileds Z ES
Connector(s)	M8 Input
Driver Features	Linear Regulated
Materials	UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling	Passive, Pin-Fin heatsink
Compliance Ratings	SAE J575 Durability Test
Intrusion Ratings	IP68 Waterproof

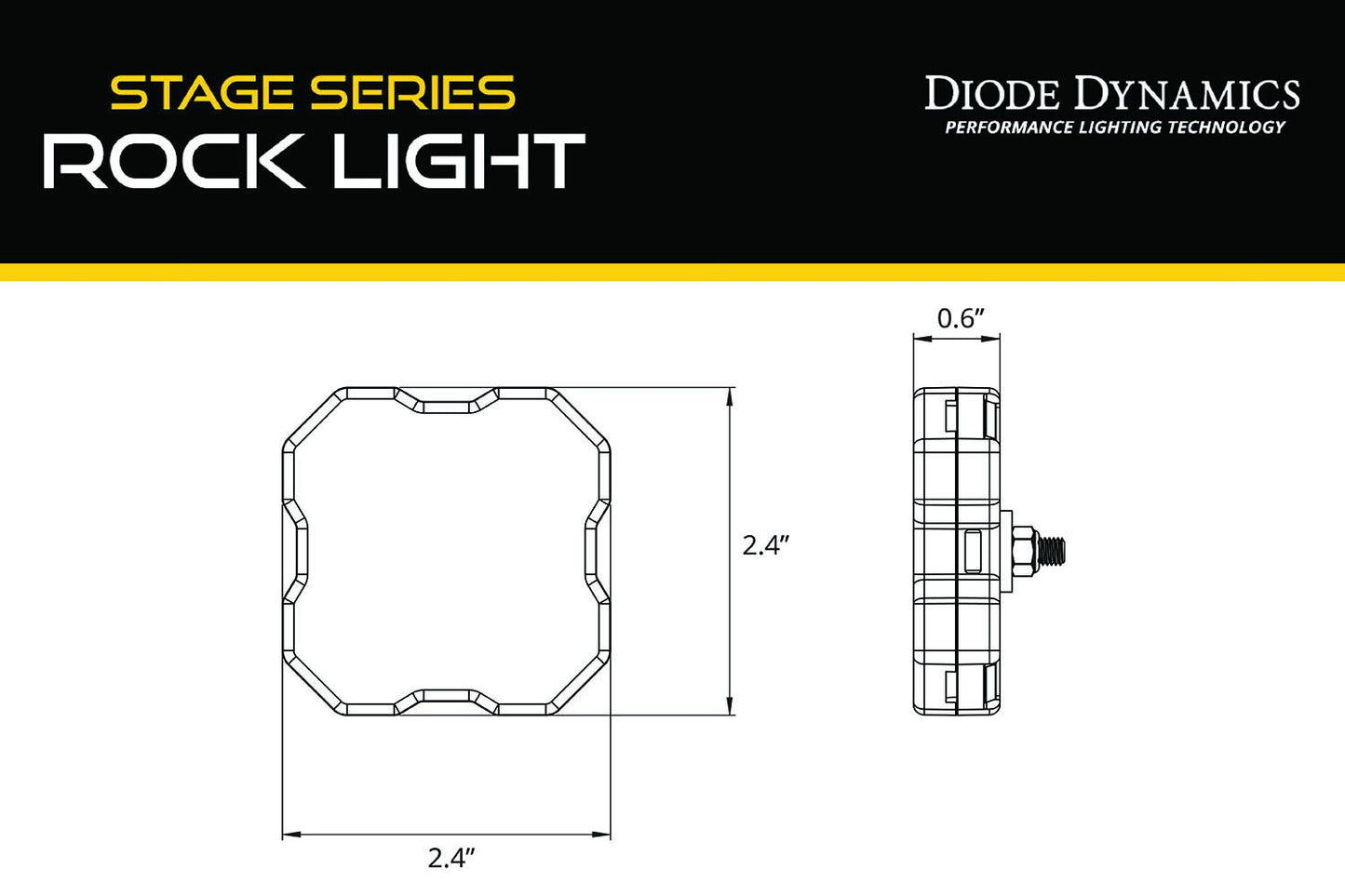

Product Dimensions (in)	2.4 x 2.4 x 0.6
