Stage Series Reverse Light Kit for 2021-2023 Ford F-150
Stage Series Reverse Light Kit for 2021-2023 Ford F-150
SKU: SKU: DD7373P
Hurry up! Only 7 items in stock.
Couldn't load pickup availability
Product Details
Description
Overview. There are plenty of ways to add light behind your 2021+ F-150, but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. This kit includes an integrated red running light, and our reverse light wiring harness, for simple installation and operation! Thanks to Stage Series TIR optic technology, this kit provides a huge amount of extra reverse light. The included switch allows you to toggle it on any time, or activate automatically with your reverse lights, for a truly integrated solution.

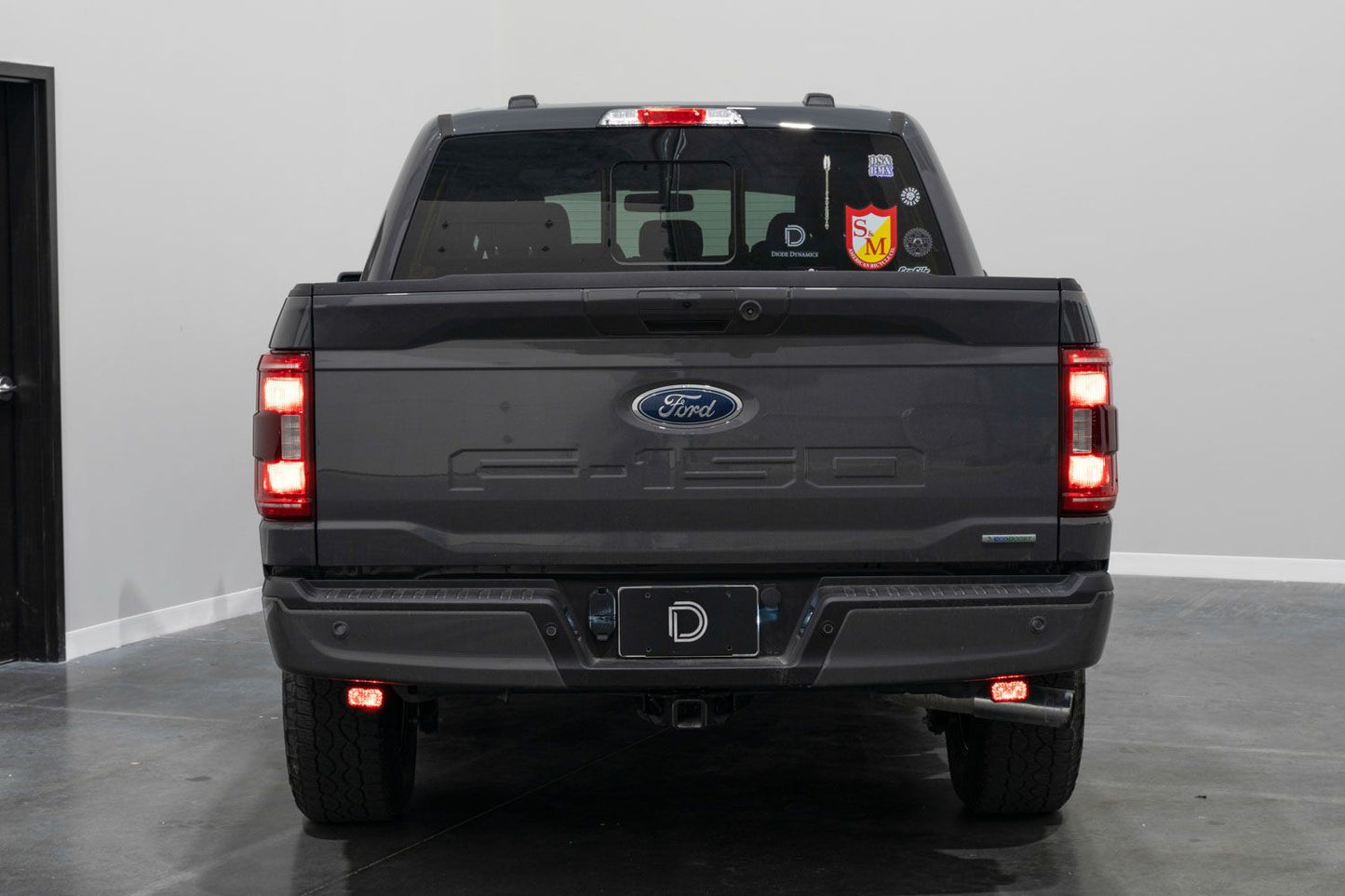

Easy Operation. The harness included with the kit connects to your truck's wiring for simple, everyday operation. The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.
Backlight Functionality. The Stage Series LED pods included with this kit feature a distinctive backlight in a vibrant red color which functions as an additional accent light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of our pods is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
Functional Patterns. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light on the SSC1 LED pod, and a 60x60 degree spread on the SSC2 LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.
Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions.
Features:
- Allows you to mount SSC1 or SSC2 pods underneath the 2021-2023 Ford F-150 rear bumper.
- Connects to vehicle wiring for simple, everyday operation of lights.
- Provides high-power reverse light, and red accent light.
- Designed and assembled in USA.

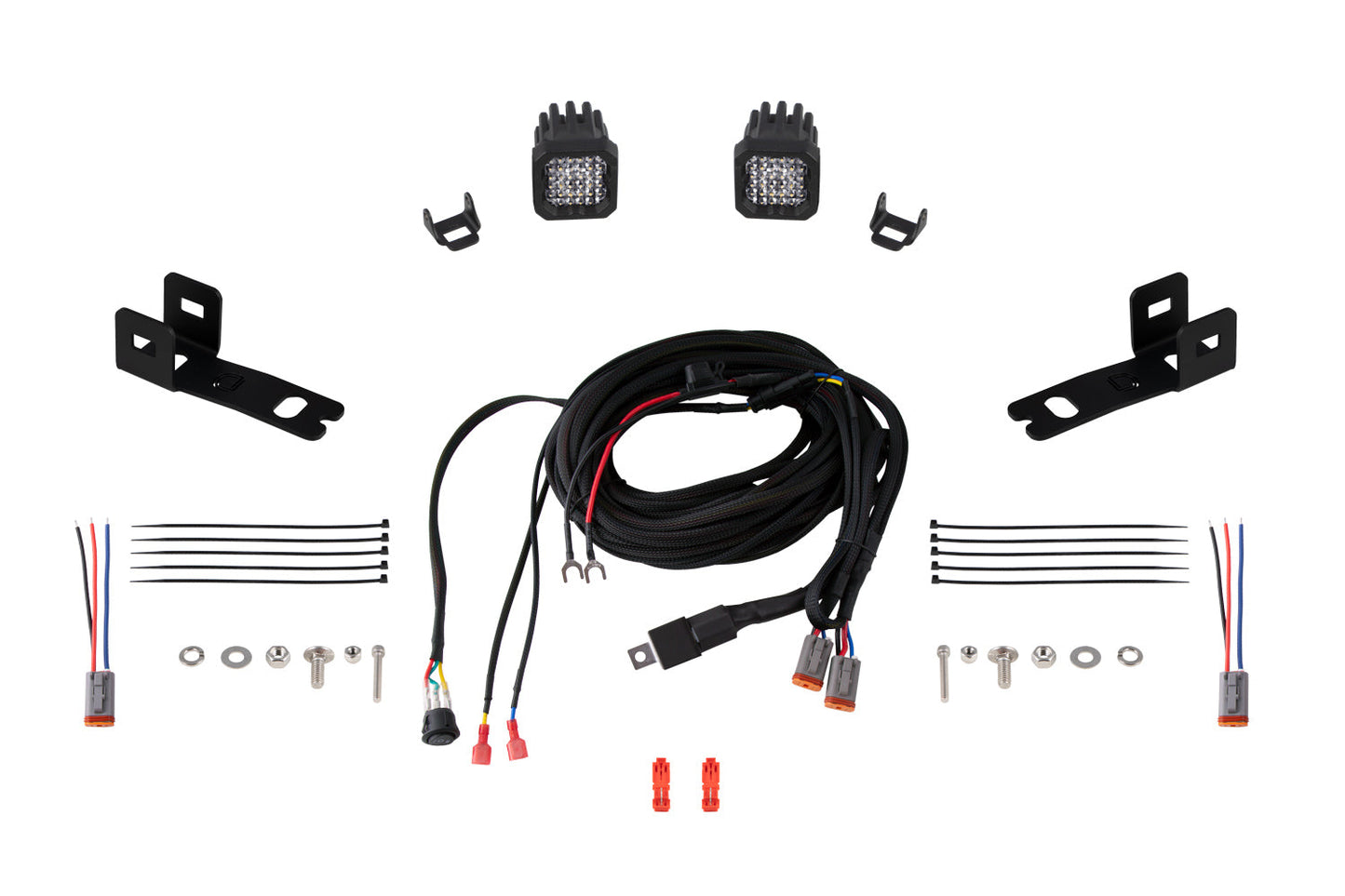

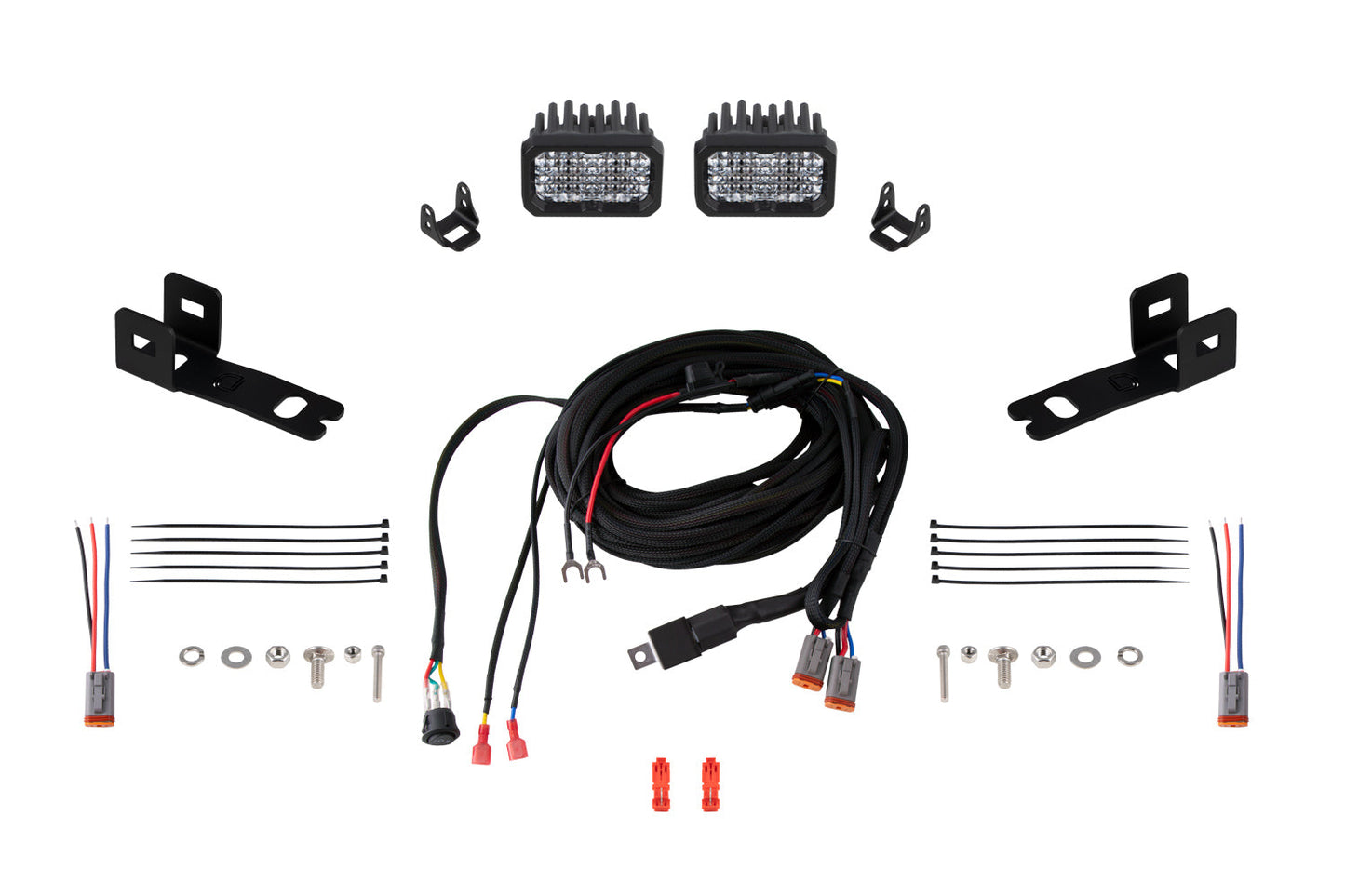

In the Box:
- Two (2) SSC1 or SSC2 Standard LED Pods
- One (1) Adapter Harness for 2021+ Ford F-150
- One (1) Universal Reverse Light Wiring Harness

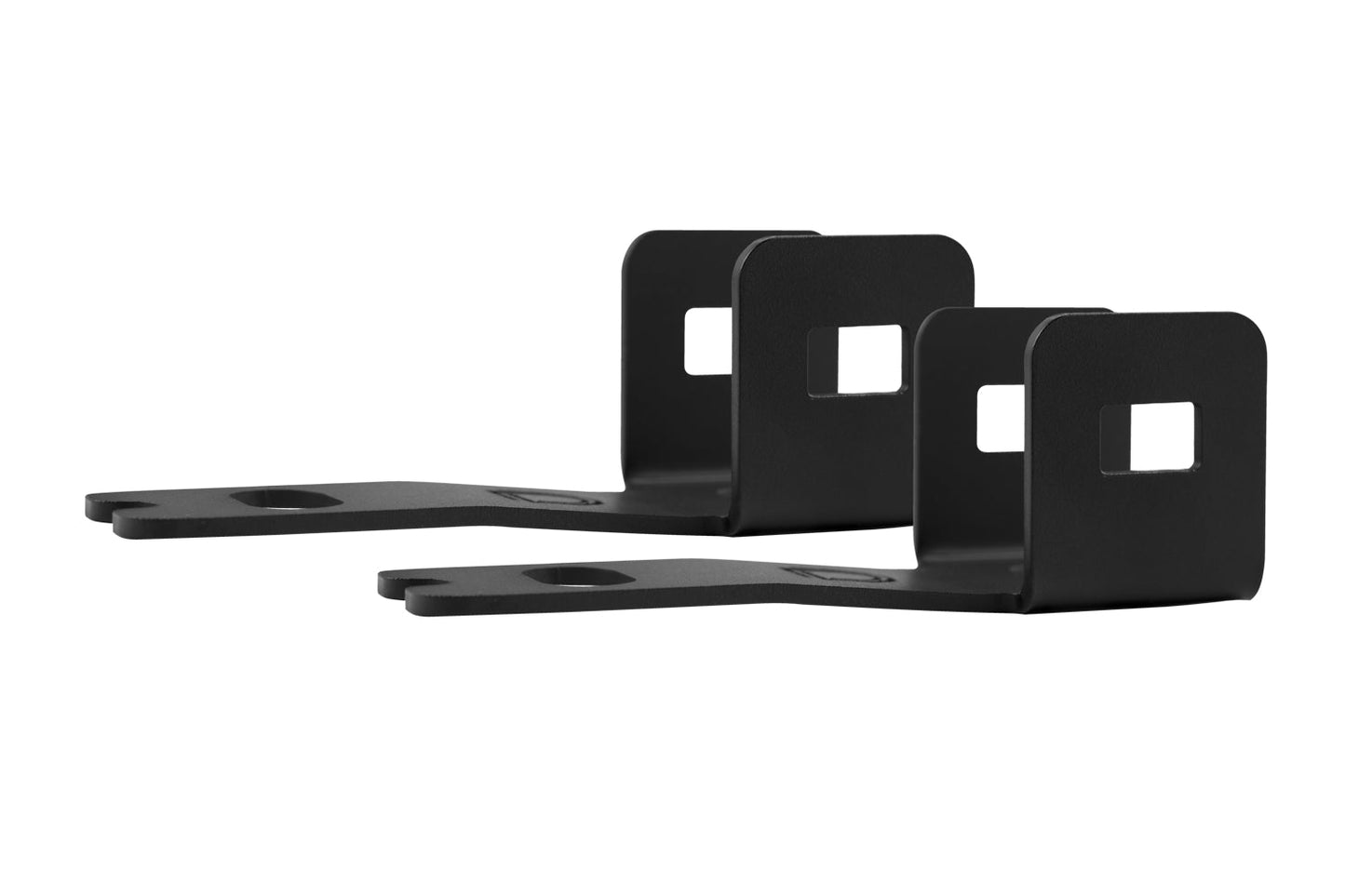

- Two (2) Mounting Brackets for 2021+ Ford F-150
- Two (2) Universal mounting brackets
- Ten (10) Zip Ties
- Two (2) T-Taps
- Mounting hardware
Specs
| Stage Series Reverse Light Kit | |
|---|---|
| Color Temp (CCT) | 6000K |
| Beam Angle | Flood, 80°x50° |
| Power (watts) | SSC1 Sport: 12.8 SSC1 Pro: 19 SSC2 Sport: 7.7 SSC2 Pro: 25.6 |
| Operating Voltage | 9-16V |
| Current (amps @ 12.8V) | SSC1 Sport: 1 SSC1 Pro: 1.5 SSC2 Sport: 0.6 SSC2 Pro: 2 |
| Polarity | Polarity Specific |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| LED Emitter | Luxeon Z ES, Cree XP-L HI, Cree XHP50 |
| Connector(s) | Deutsch DT Input |
| Driver Features | Constant Current |
| Materials | Polycarbonate Lens, Aluminum Casting, Rubber Gasket |
| Cooling | Passive, Pin-Fin heatsink |
| Compliance Ratings | SAE J575 Durability Test |
| Intrusion Ratings | IP67 Weatherproof |
Fitment
2021-2023 Ford F-150
NOTE: This kit is not compatible with the Tremor and Raptor trim levels.
