SS3 Universal Roll Bar Bumper Light Kit
SS3 Universal Roll Bar Bumper Light Kit
SKU: SKU: DD7674
Hurry up! Only 7 items in stock.
Couldn't load pickup availability
Product Details
Description

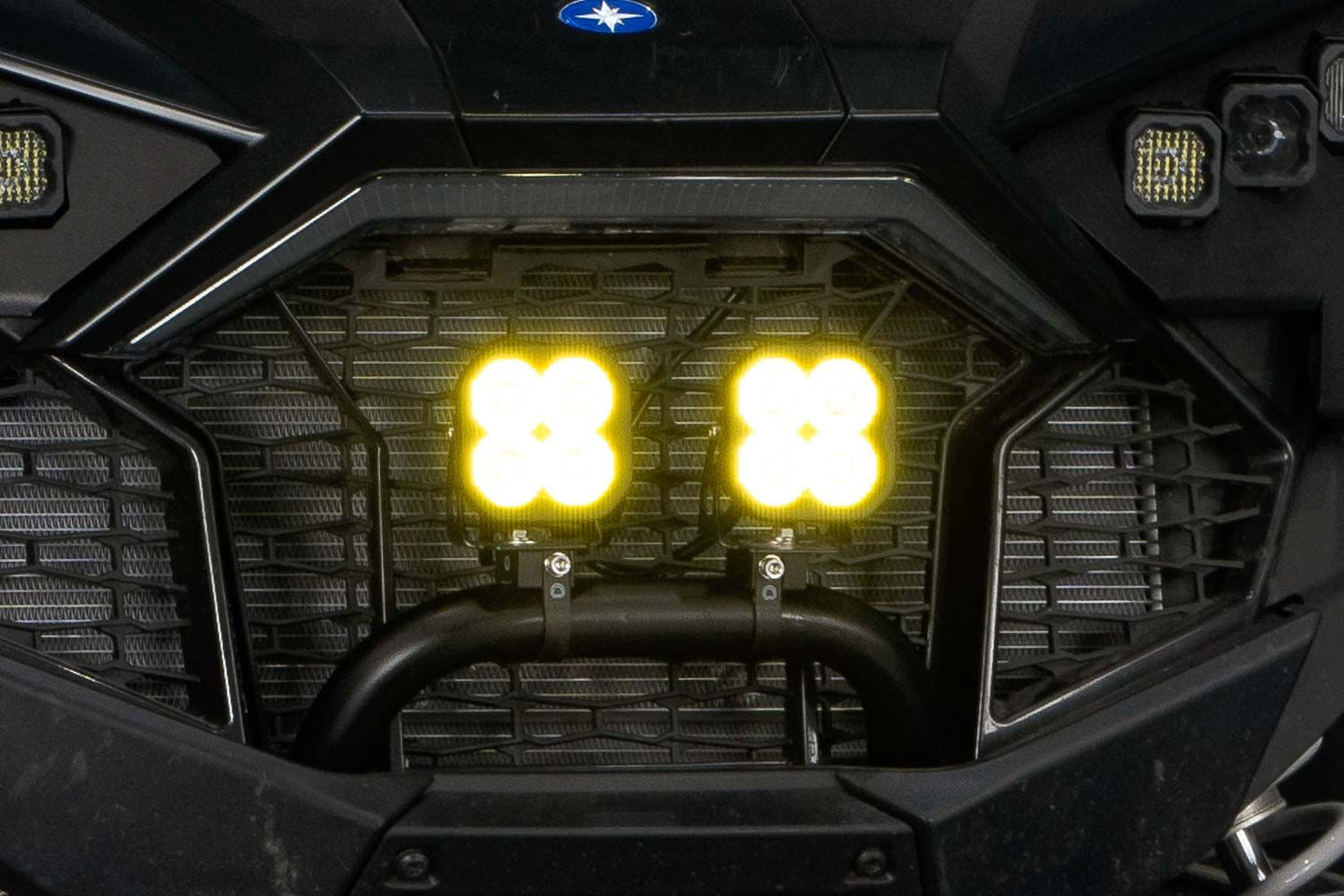

The Bumper LED Pod Kit from Diode Dynamics allows you to mount two SS3 LED pods on the factory roll bar in the lower bumper area without any cutting or drilling. If you ride in dusty conditions, this is the perfect kit for you. The lower mounting point cuts through dust and fog, giving you more visibility in undesirable conditions.
Designed for Performance. Featuring the highest output intensity of any 3-inch LED pod on the market, these lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.
Backlight Functionality. The Stage Series 3 LED Pods included in this kit feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.
Features
- Bolt-on fitment compatible with UTV bumper roll bars.
- Ultra-high intensity, with custom-engineered TIR optics.
- Brilliant amber backlight.
- Torture-tested, heavy-duty construction.
- Assembled in USA.

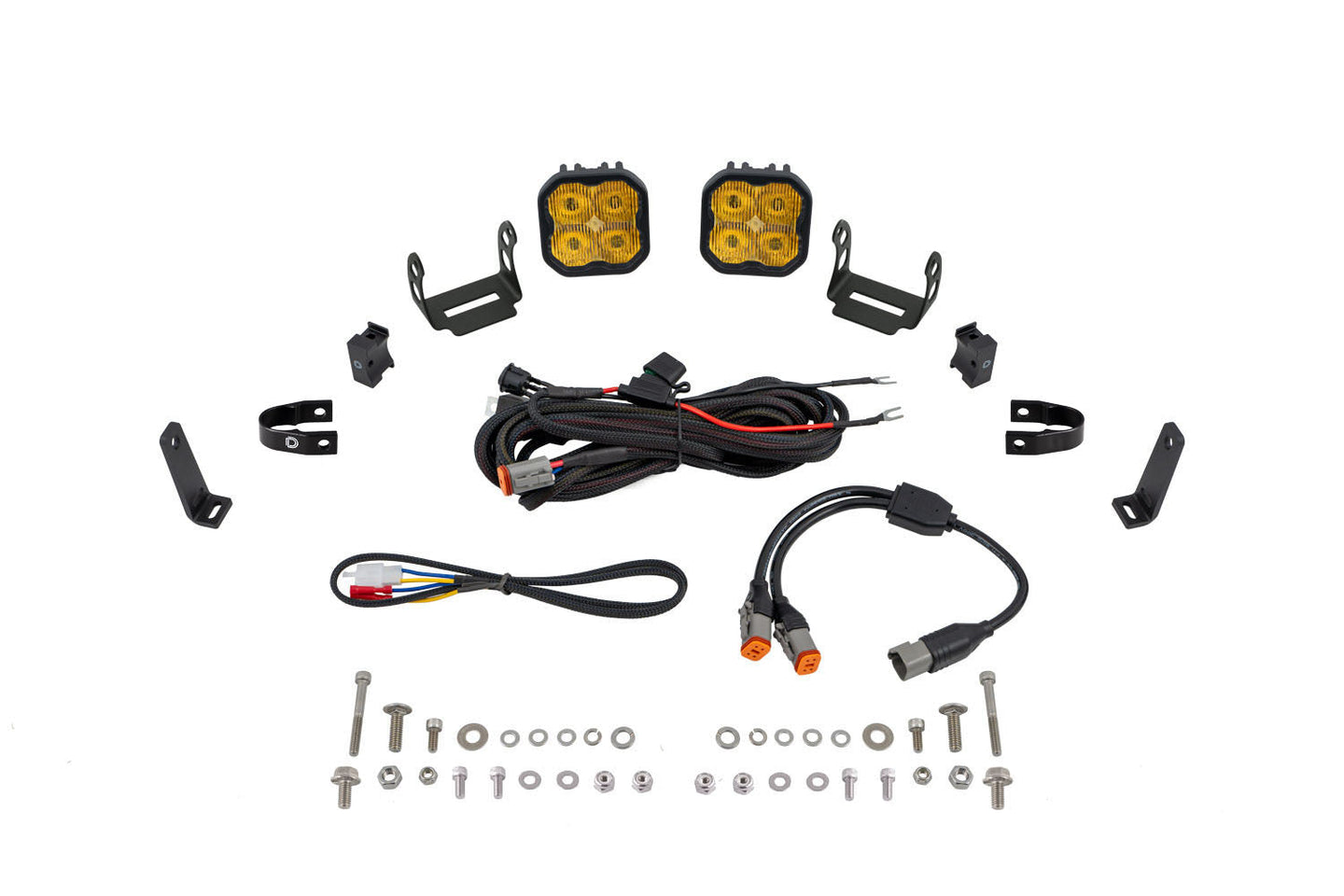

Included in the box:
- Two (2) SS3 3in LED Pods
- Two (2) 1 Roll Bar Mount Kits
- One (1) Heavy-Duty Single Output 3Way 4P Harness
- One (1) DT 4P Splitter 2Way Harness
- Included Hardware
- Installation Guide
Specs
| SS3 Universal Roll Bar Bumper Light Kit | |
|---|---|
| Color Temp (CCT) | 6000K |
| Beam Angle | Flood, 80°x50° |
| Operating Voltage | 9-16V |
| Polarity | Polarity Specific |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| LED Emitter | Luxeon Z ES, Cree XP-L HI, Cree XHP50 |
| Connector(s) | Deutsch DT Input |
| Driver Features | Constant Current |
| Materials | Polycarbonate Lens, Aluminum Casting, Rubber Gasket |
| Cooling | Passive, Pin-Fin Heatsink |
| Compliance Ratings | SAE J575 Durability Test |
| Intrusion Ratings | IP67 Weatherproof |
Fitment
1", 1.25", 1.5", 1.75", or 2" Roll Bar Mount Kits
