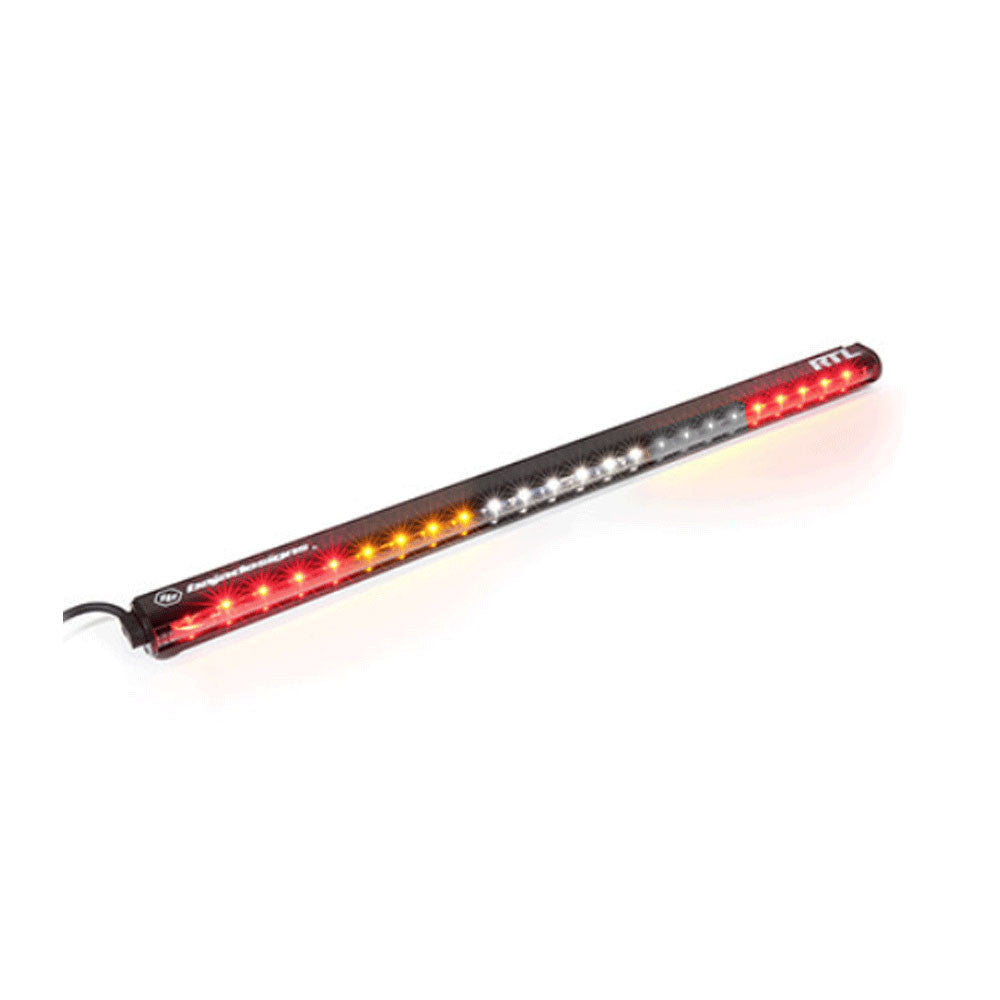

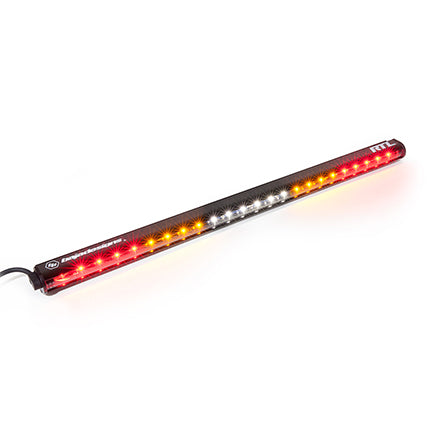

RTL LED Rear Light Bar - Universal

Looking for more safety out on the race course? Baja Designs' RTL, or Rear Tail Light, is your answer. This light features race-legal rear taillight specifications and is a must for all drivers looking for that reassurance of being seen when leading the pack. Lighting Features: Running Light, Brake Light and the following:

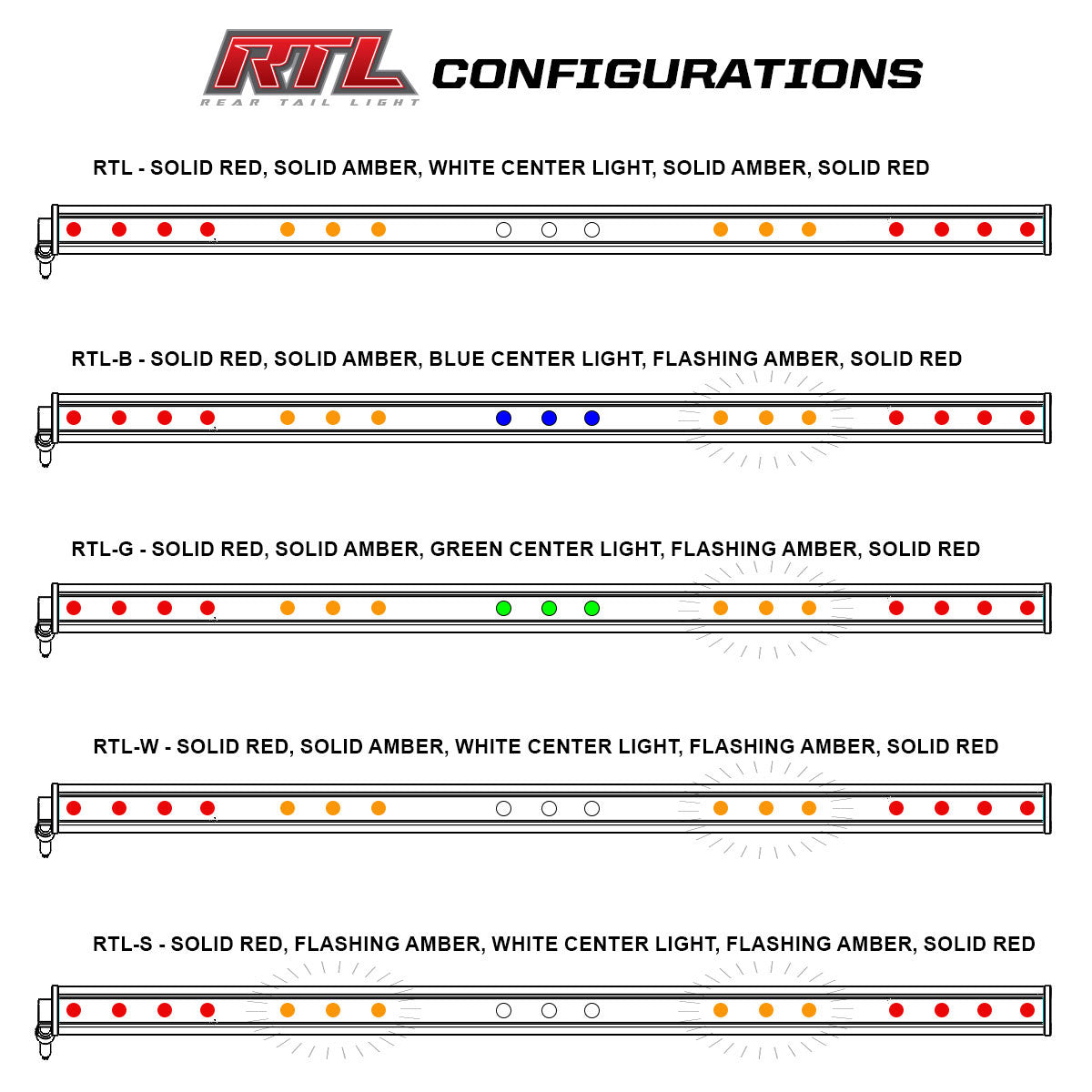

RTL Configurations:

RTL Clear: Solid Red, Solid Amber, White Center Light, Solid Amber, Solid Red

RTL-B: Solid Red, Solid Amber, Blue Center Light, Flashing Amber, Solid Red (Race Series Specific)

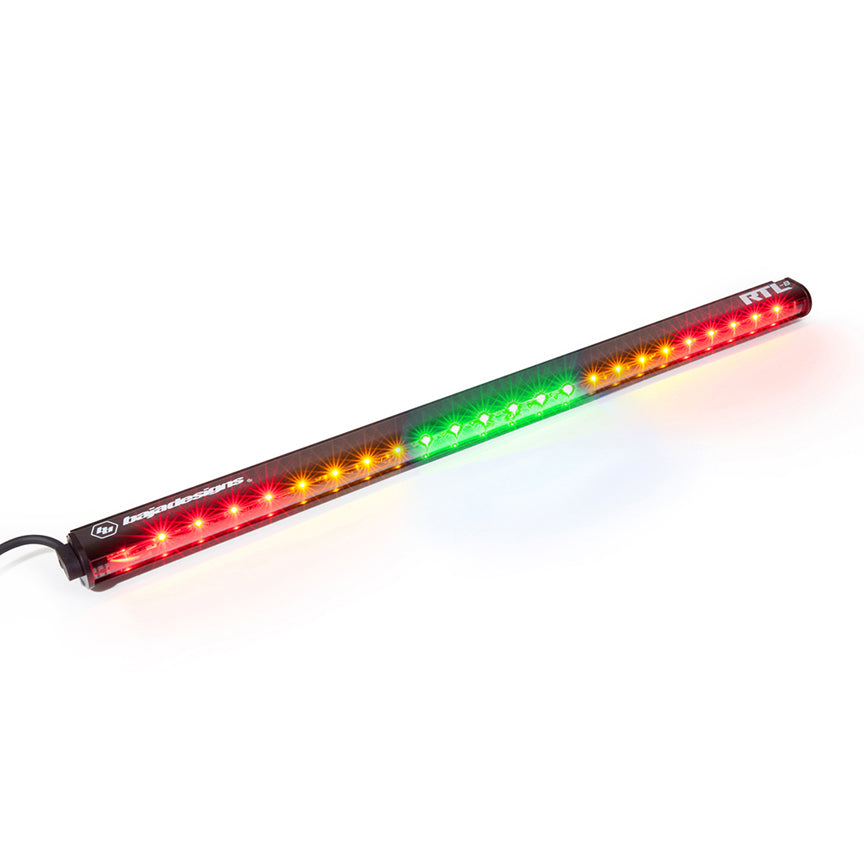

RTL-G: Solid Red, Solid Amber, Green Center Light, Flashing Amber, Solid Red (Race Series Specific)

RTL-W: Solid Red, Solid Amber, White Center Light, Flashing Amber, Solid Red

RTL-S: Solid Red, Flashing Amber, White Center Light, Flashing Amber, Solid Red (amber sections offer individual controls or can be configured to function as turn signals for on-road driving when paired with an external flasher or an sPOD/similar switch panel unit)

• Satisfaction Guarantee - 30-Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 Percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

NOTE: The RTL bar does not come with a wiring harness. Depending on the application, you need 640127 (Automotive RTL Harness) or 640116 (UTV RTL Harness). RTL-S will need 640134 (RTL-S Turn Signal Harness).

Dimensions

• Length (in.) 32.125
• Height (in.) 1.5
• Depth (in.) 2.15
• Weight (lbs.) 3.75

Standards & Compliance
Patent No. D802,187
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft and Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)

RTL LED Rear Light Bar
Average Rated Life (hr.)	49,930
Beam Pattern	Rear Tail Light
Description	No Turn Signal
Housing Color	Black
Housing Material	Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color	White
Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	Beam
Lighting Technology	LED
Lighting Type	Rear Projecting
Mounting Hardware Description	Mounting Hardware
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	RTL-W 30 Inch LED Rear Tail Light Bar
Universal or Specific	Universal
Wattage (W)	30 (Brake Light); 12 (Running Light); 18 (Center Light)
Wiring Harness Included	No

Universal
