OnX6 Straight Racer Edition LED Light Bar - Universal
OnX6 Straight Racer Edition LED Light Bar - Universal
SKU: SKU: 411002
Hurry up! Only 9 items in stock.
Couldn't load pickup availability
Product Details
Description

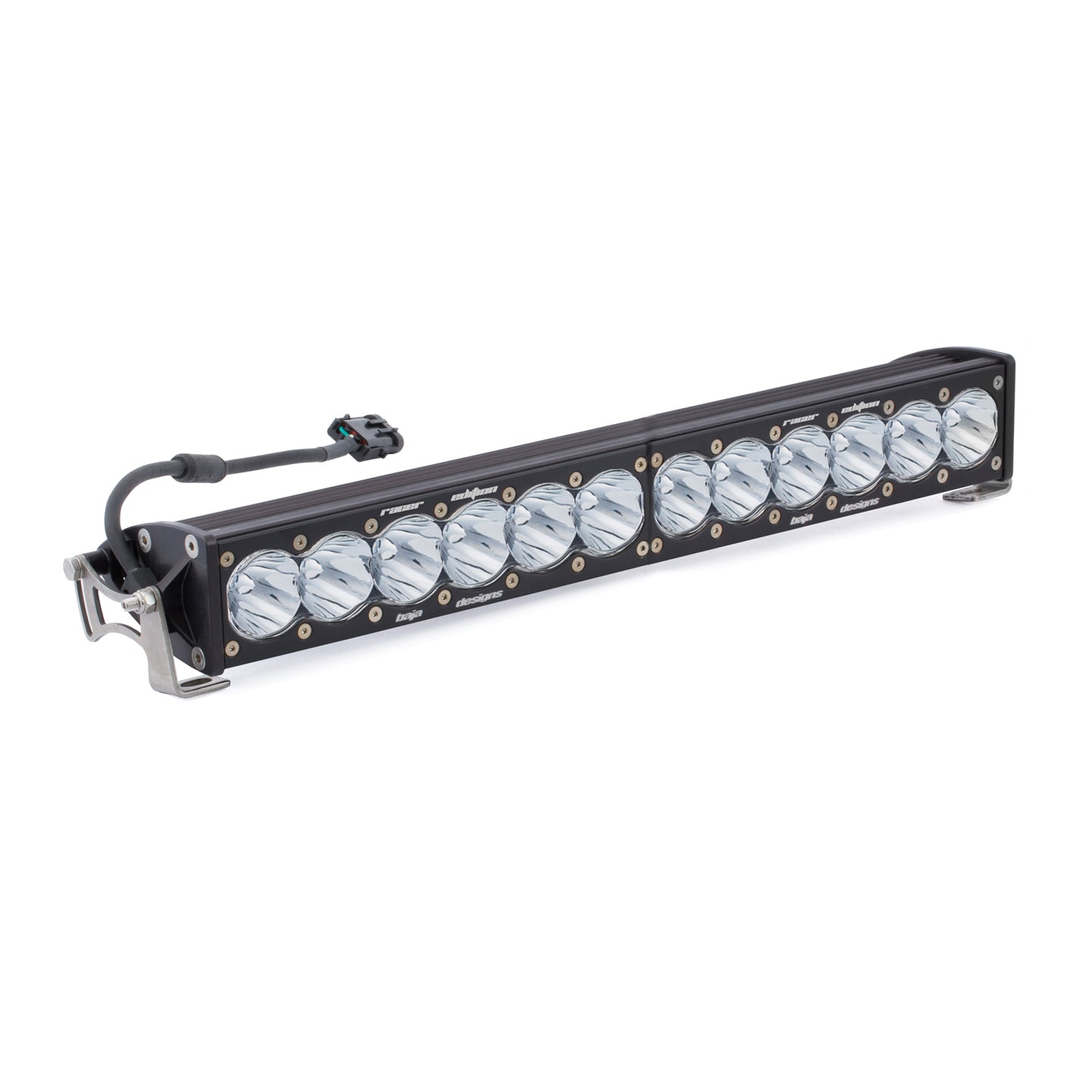

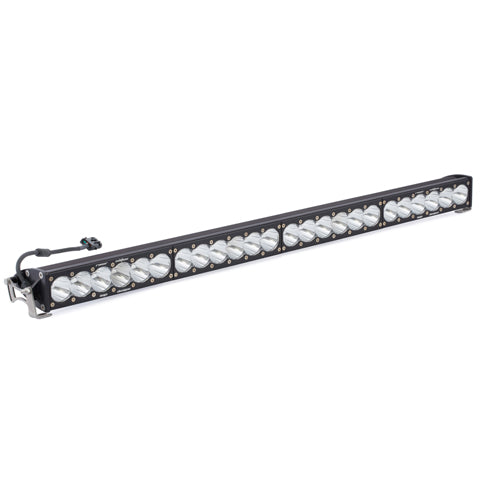

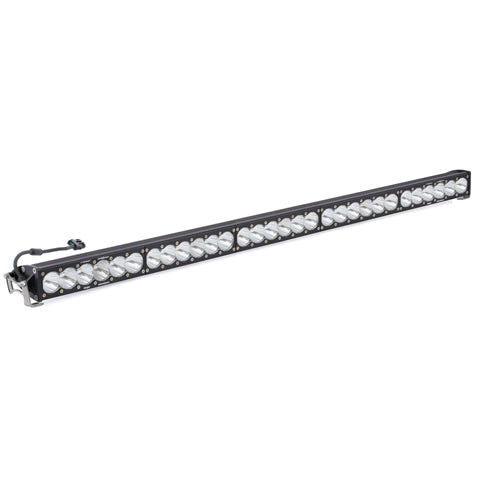

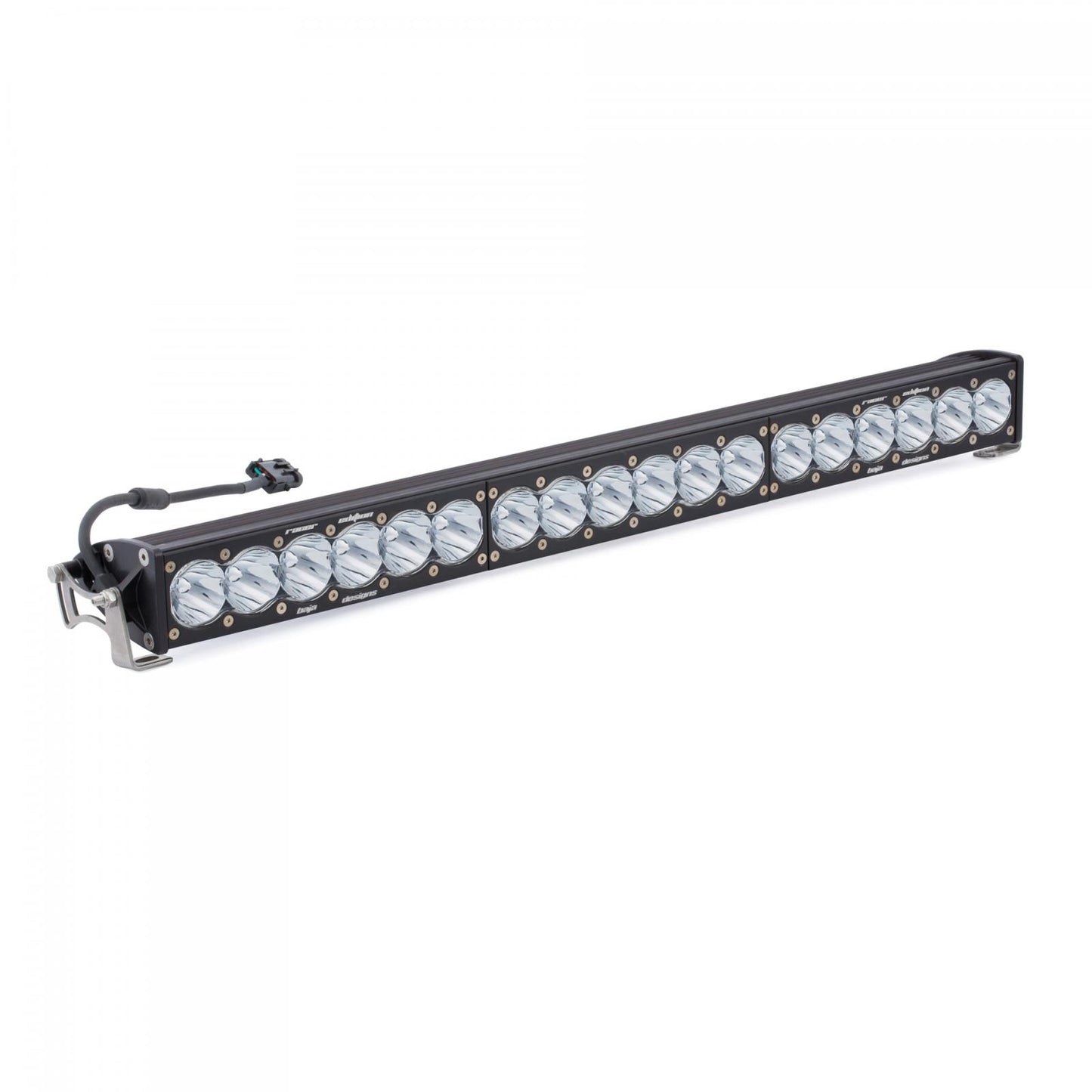

The biggest in our Racer Edition line, the 50-inch OnX6 Racer Edition Light Bar also packs the hardest punch. If you have enough room to mount it, the 50-inch OnX6 Racer Edition Light Bar delivers all the power you need for high-speed nighttime driving, either on-road or off.
The OnX6 Racer Edition LED Light Bar is BRIGHTER, BOLDER, BETTER.
Baja Advantage:
- Satisfaction Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Features:
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Racer Edition Spot: A 4 degree beam focus for illumination WAY down the trail or road. The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)
Includes:
OnX6 Racer Edition LED Light Bar
Mounting Brackets
NOTE: This bar does not come with a wiring harness. You will need PN:640119 (Hi-Power w/Mode Switch 2-light max wiring harness)
Specs
| OnX6 Straight Racer Edition LED Light Bar | |
|---|---|
| Amperage Rating (A) 10" | 5.25 |
| Amperage Rating (A) 20" | 10.5 |
| Amperage Rating (A) 30" | 15.75 |
| Amperage Rating (A) 40" | 21 |
| Amperage Rating (A) 50" | 26.25 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Spot |
| Bezel Material | Billet Machined Aluminum |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity 10" | 6 |
| Lighting Quantity 20" | 12 |
| Lighting Quantity 30" | 18 |
| Lighting Quantity 40" | 24 |
| Lighting Quantity 50" | 30 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 10 Inch Racer Edition LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) 10" | 63 |
| Wattage (W) 20" | 126 |
| Wattage (W) 30" | 189 |
| Wattage (W) 40" | 252 |
| Wattage (W) 50" | 315 |
| Wiring Harness Included | No |
Fitment
Universal
