Sold out
-
-
-
-

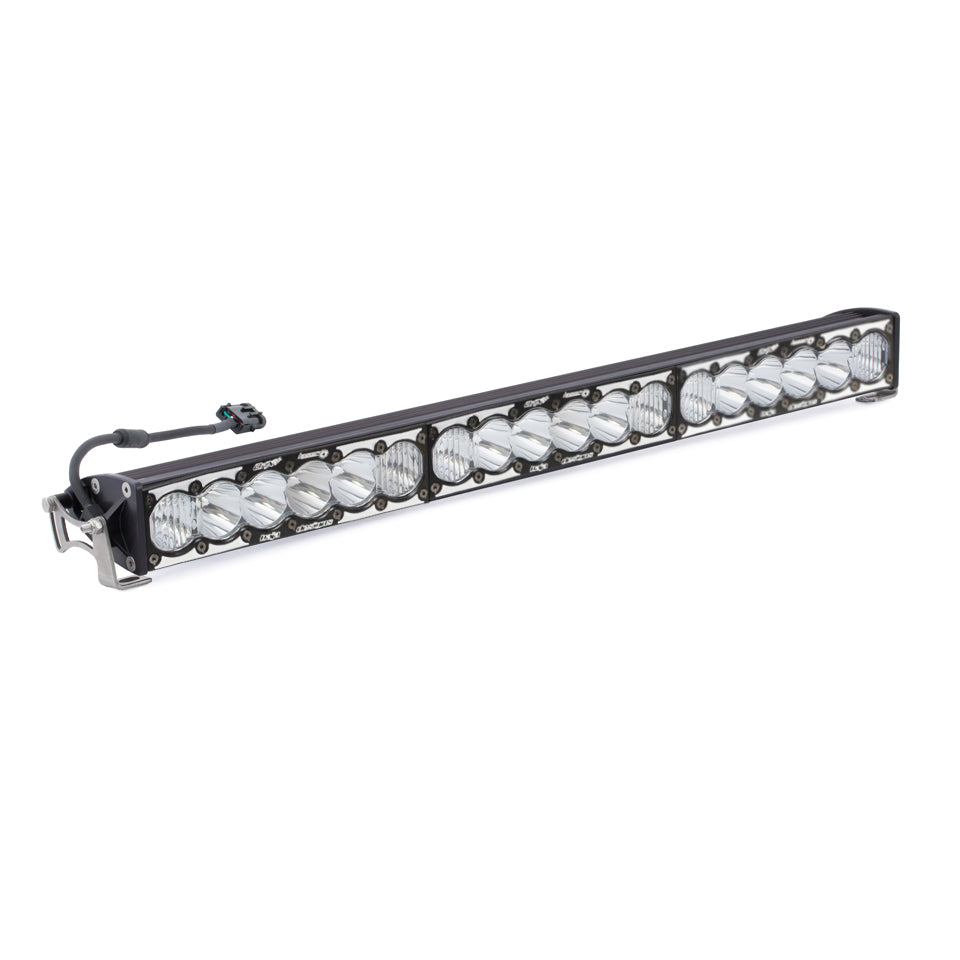

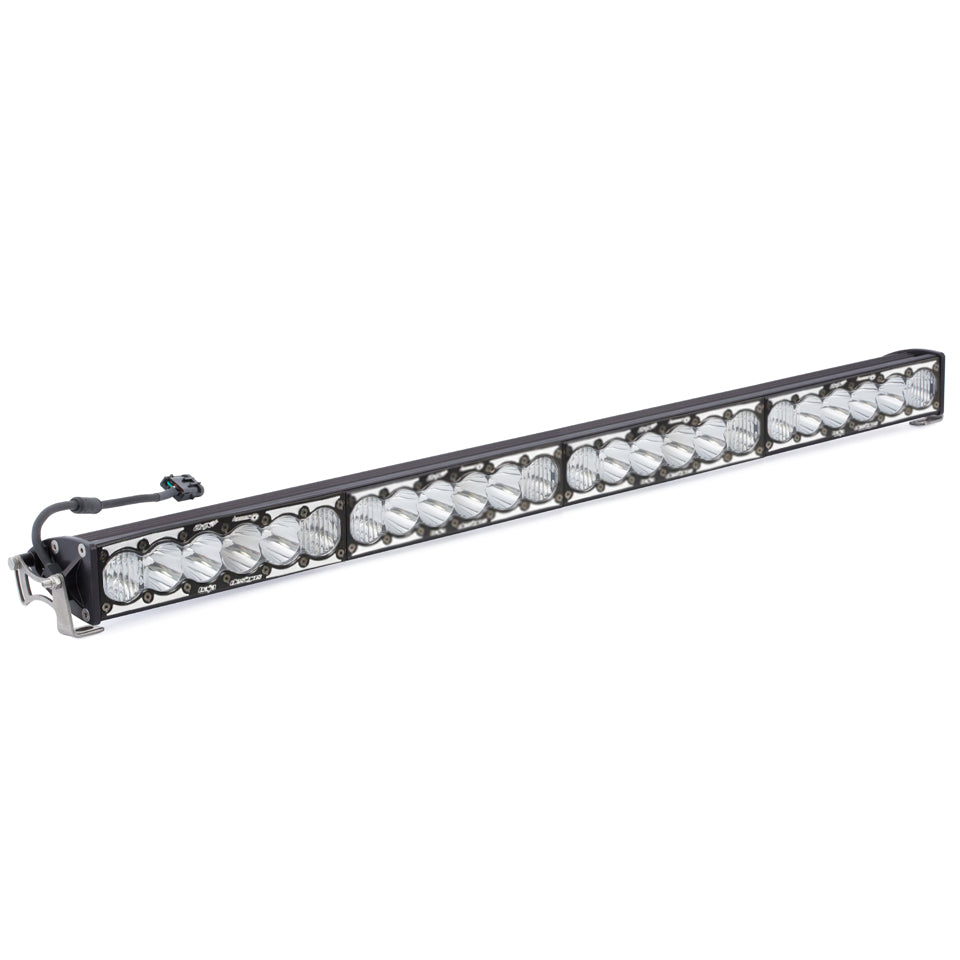

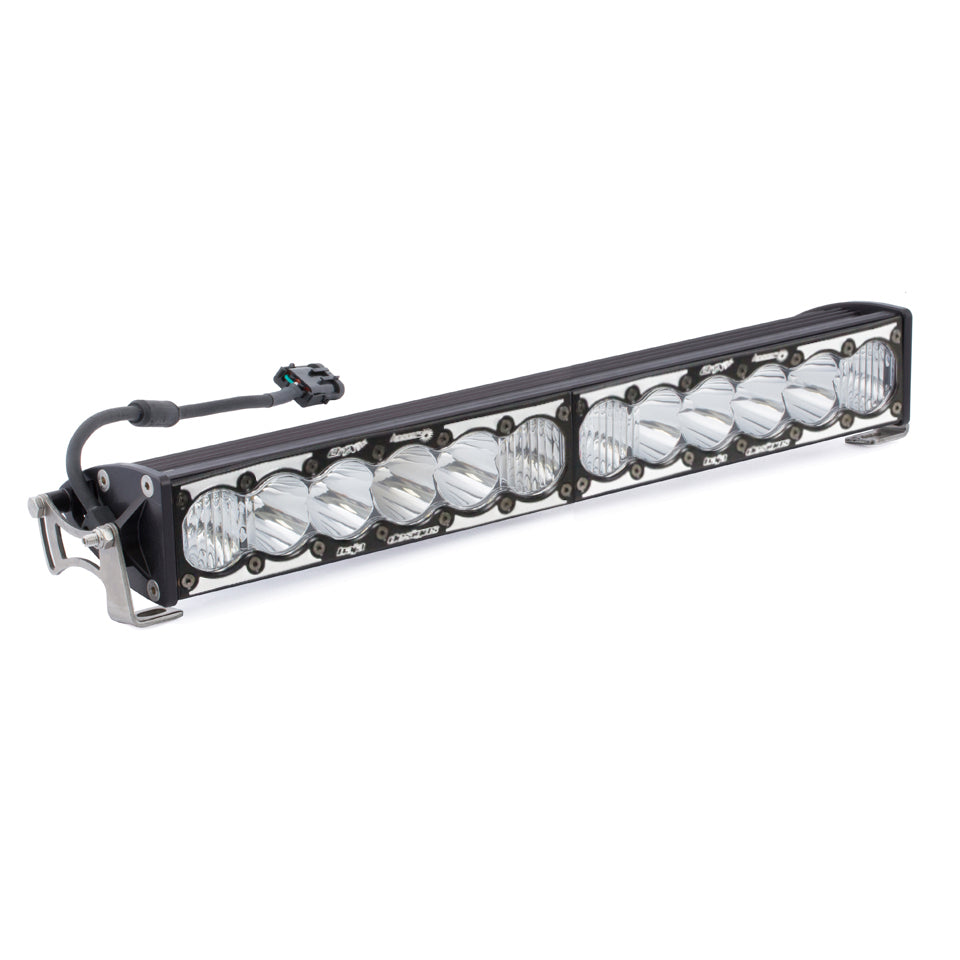

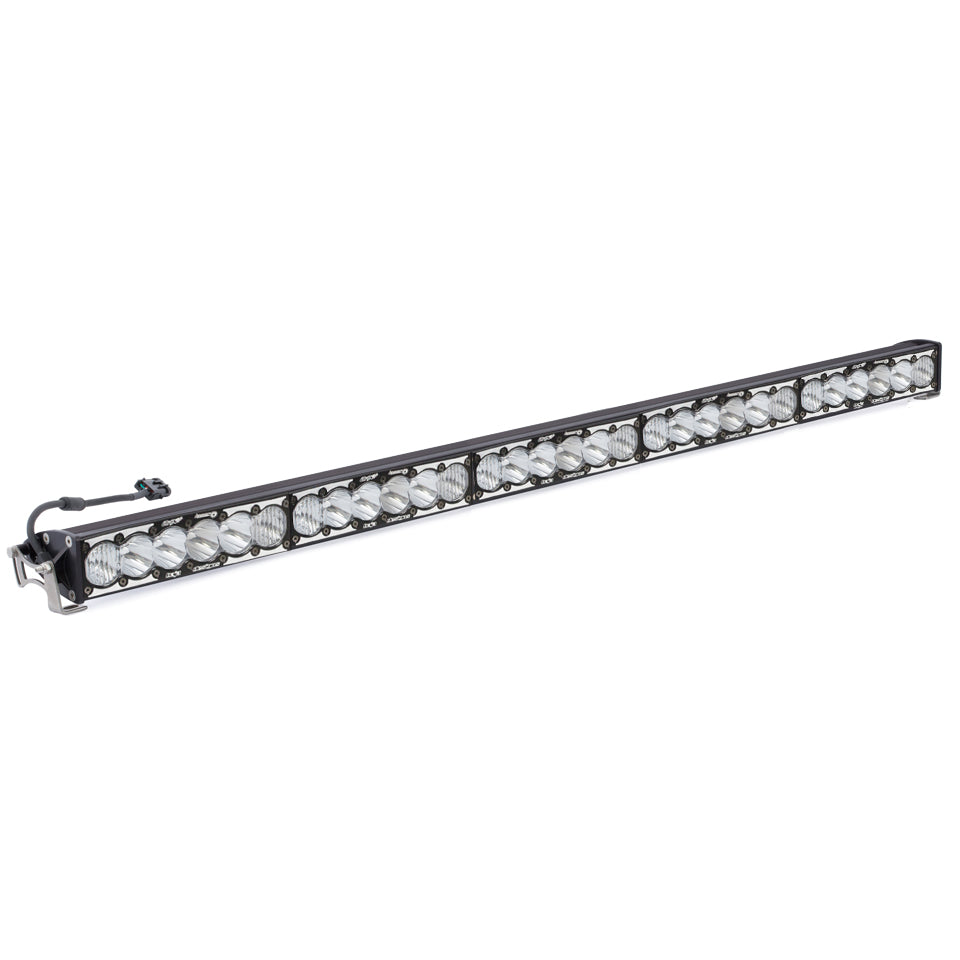

OnX6 Hybrid LED/Laser Light Bar - Universal
OnX6 Hybrid LED/Laser Light Bar - Universal
SKU: SKU: 451007
Out of stock
Product Details
Description
The new Baja Designs Laser Light series is at the pinnacle of distance lighting. The Laser Light is capable of throwing light 350 percent farther than our current OnX6+ Light Bar. We have created a Hybrid light in order to give the user the ultimate lighting package.

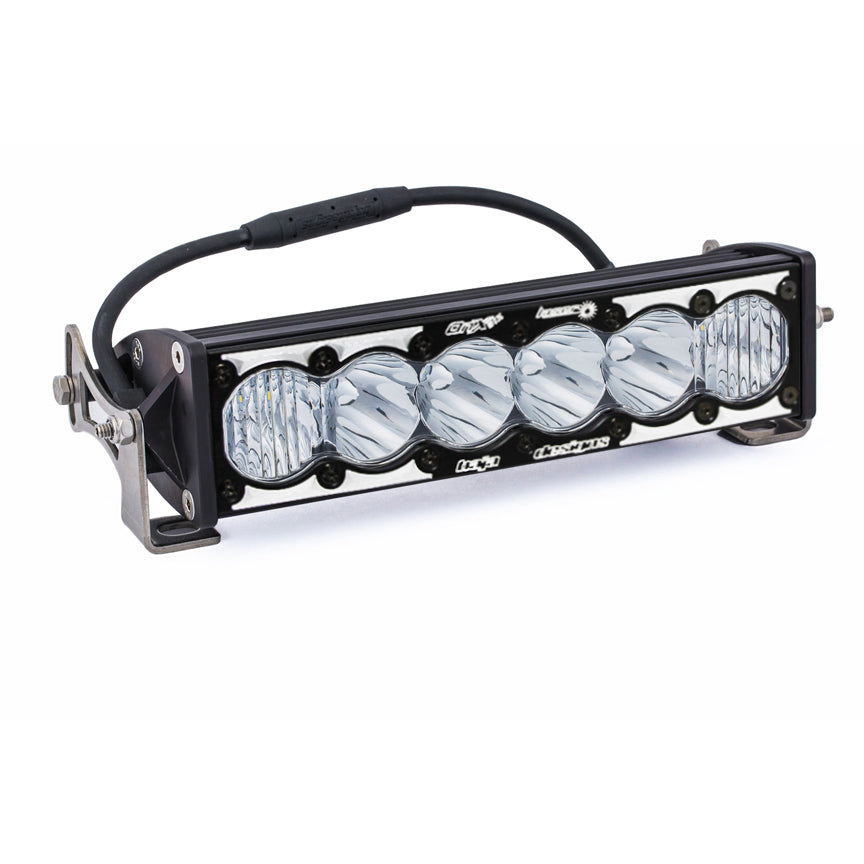

A 10 inch OnX6 Hybrid projects 2 laser chips and 4 LED chips through our High Speed Spot optic to deliver a far reaching, yet smooth blend of light elevating forward projection lighting into the next generation!
If you want to stay ahead of the competition with farthest reaching product on the market, look no further.
Features:
- Offered in multiple sizes, from 10in to 50in.
- Only the 10in. Hybrid light bar allows for operation with two switches. One to control the four LEDs and one to control the two laser chips.
- OnX6 Hybrid bars sized 20in and above only function with one on/off switch
- Hybrid bars do not come with harness. The proper harness will be PN:640119
- NOTE: 40in/50in Hybrid light bars are extremely high output and are built as dual power cord/dual control. You will need two harnesses (PN:640119) to power the 40in/50in bars. Please verify that your vehicle has the electrical output to run these products before purchase.
Baja Advantage:
- Satisfaction Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
Specs
| OnX6 Hybrid LED/Laser Light Bar | |
|---|---|
| Amperage Rating (A) | 7.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Hybrid Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) 10" | 7,760 |
| Brightness (Lumens) 20" | 15,520 |
| Brightness (Lumens) 30" | 23,280 |
| Brightness (Lumens) 40" | 31,040 |
| Brightness (Lumens) 50" | 38,800 |
| Description | Hybrid Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity 10" | 6 |
| Lighting Quantity 20" | 12 |
| Lighting Quantity 30" | 18 |
| Lighting Quantity 40" | 24 |
| Lighting Quantity 50" | 30 |
| Lighting Technology 10" | 2 Laser / 4 LED |
| Lighting Technology 20" | 4 Laser / 8 LED |
| Lighting Technology 30" | 6 Laser / 12 LED |
| Lighting Technology 40" | 8 Laser / 16 LED |
| Lighting Technology 50" | 10 Laser / 20 LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6 10 Inch Hybrid LED/Laser Light Bar |
| Universal or Specific | Universal |
| Wattage (W) 10" | 95 |
| Wattage (W) 20" | 190 |
| Wattage (W) 30" | 285 |
| Wattage (W) 40" | 380 |
| Wattage (W) 50" | 475 |
| Wiring Harness Included | No |
