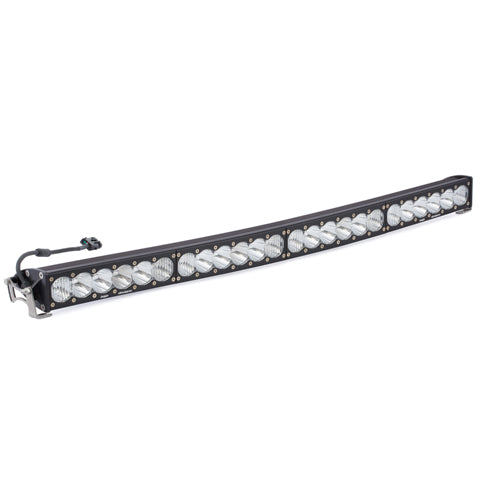

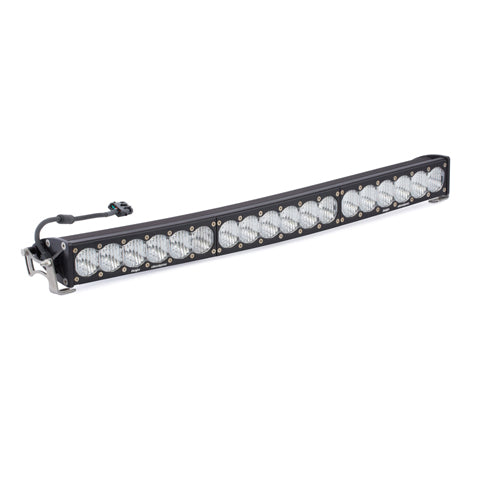

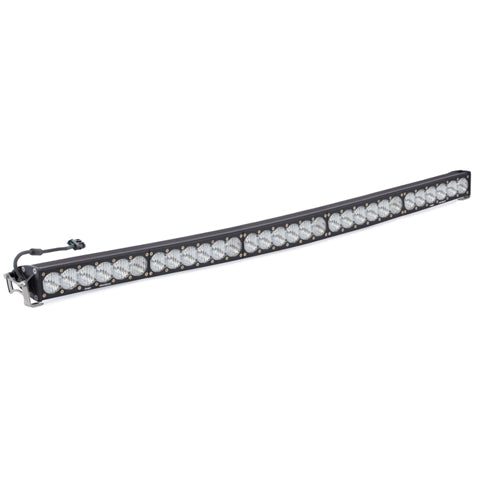

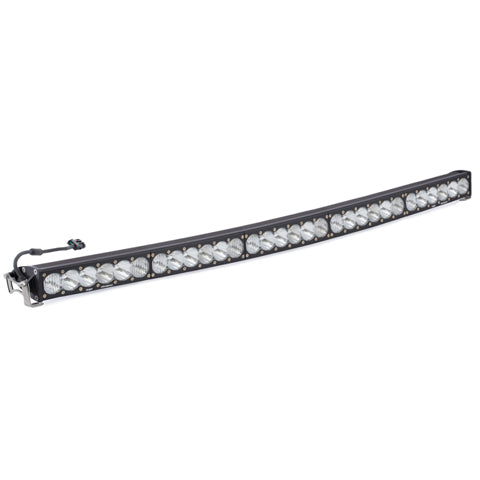

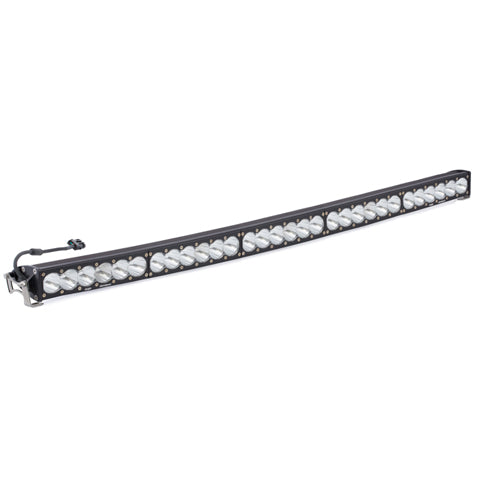

OnX6 Arc LED Light Bar - Universal
OnX6 Arc LED Light Bar - Universal
SKU: SKU: 523001
Hurry up! Only 3 items in stock.
Couldn't load pickup availability
Product Details
Description
The OnX6+ Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility. We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.
Baja Advantage:
- Satisfaction Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Features:
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
OnX6 30 inch LED Light Bar Arc Series
Mounting Brackets
NOTE: This bar does not come with a wiring harness. You will need PN:640119 (Hi-Power w/Mode Switch 2-light max wiring harness)
NOTE: 50in OnX6+ does NOT have a Hi-Lo Function, The light bar is pre-dimmed
Specs
| OnX6 Arc LED Light Bar | |
|---|---|
| Amperage Rating (A) 30" | 21.7 (High); 17.1 (Low) |
| Amperage Rating (A) 40" | 26.8 (High); 22.4 (Low) |
| Amperage Rating (A) 50" | 28.2 (High) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot / Driving/Combo / Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) 30" | 32,070 (High); 25,610 (Low) |
| Brightness (Lumens) 40" | 39,220 (High); 32,760 (Low) |
| Brightness (Lumens) 50" | 39,910 (High) |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 18 / 24 / 30 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 30 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) 30" | 278 (High); 222 (Low) |
| Wattage (W) 40" | 340 (High); 284 (Low) |
| Wattage (W) 50" | 346 (High) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Fitment
Universal
