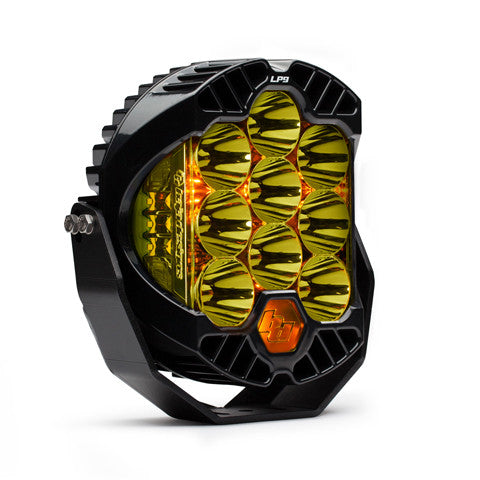

LP9 Racer Edition LED Auxiliary Light Pod - Universal

LP9 Racer Edition LED Auxiliary Light Pod - Universal

SKU: 330001

$669.95
$669.95
Shipping calculated at checkout.

20 in stock

Expected delivery date:
22 Oct Usually ready in 2-3 days.

Warranty Information

Product Details

Description

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light.

The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode light it will fulfill all your lighting needs.

Available in a standard model that is perfect for a wide arrange of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances.


Baja Advantage:

  • Satisfaction Guarantee - 30 Day Money Back Guarantee
  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService - Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It.
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Only LED Driven At 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color

Features:

  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing

Light Pattern - High Speed Spot: A longer and narrower 6 degree beam Focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Specs

LP9 Racer Edition LED Auxiliary Light Pod
Amperage Rating (A)9.600
Average Rated Life (hr.)49,930
Backlight Amperage Rating (A)0.200
Backlight Wattage (W)2.800
Beam PatternRacer Edition Spot
Bezel MaterialPowder Coat Cast Aluminum
Brightness (Lumens)8374
DescriptionRacer Edition Spot; Clear
Housing ColorBlack
Housing MaterialPowder Coat Cast Aluminum
Lens ColorClear
Lens MaterialHardcoated Polycarbonate
Light Quantity1
Lighting ModesHigh Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity9
Lighting TechnologyLED
Lighting TypeForward Projecting
Mounting Hardware IncludedYes
Mounting Hardware MaterialStainless Steel
Overvoltage ProtectionBuilt-In
Product TypeLP9 Racer Edition LED Light Pod
Secondary Amperage Rating (A)1.520
Secondary Brightness (Lumens)2302
Secondary Light Quantity6 LEDs
Secondary Lighting TechnologyLED
Secondary Lighting TypeIntegrated Peripheral Technology (IPT)
Secondary Wattage (W)21
Terminal ConnectorDT06-4S Deutsch
Terminal TypeMating Connector
Universal or SpecificUniversal
Wattage (W)132.480
Wiring Harness IncludedNo

Fitment

Universal

GET TO KNOW THE LP SERIES

  • Direct Ducted Cooling (DDC)

    With so much power, a cooling system was an integral part of making the LP series perform at the highest level. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.

  • Integrated Peripheral Technology (IPT)

    One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.

  • Unique Design

    The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.

  • Color Backlight Options

    Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.

  • uService Lens Replacement

    Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.
