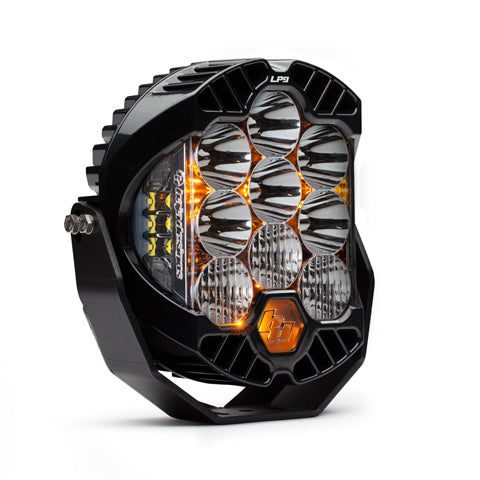

LP9 Pro LED Auxiliary Light Pod with Driving/Combo Pattern

LP9 Pro LED Auxiliary Light Pod with Driving/Combo Pattern

SKU: 320003

$643.95
$643.95 $643.95
Shipping calculated at checkout.

174 in stock

Expected delivery date:
20 Oct Usually ready in 2-3 days.

Warranty Information

Product Details

Description

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A.

The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

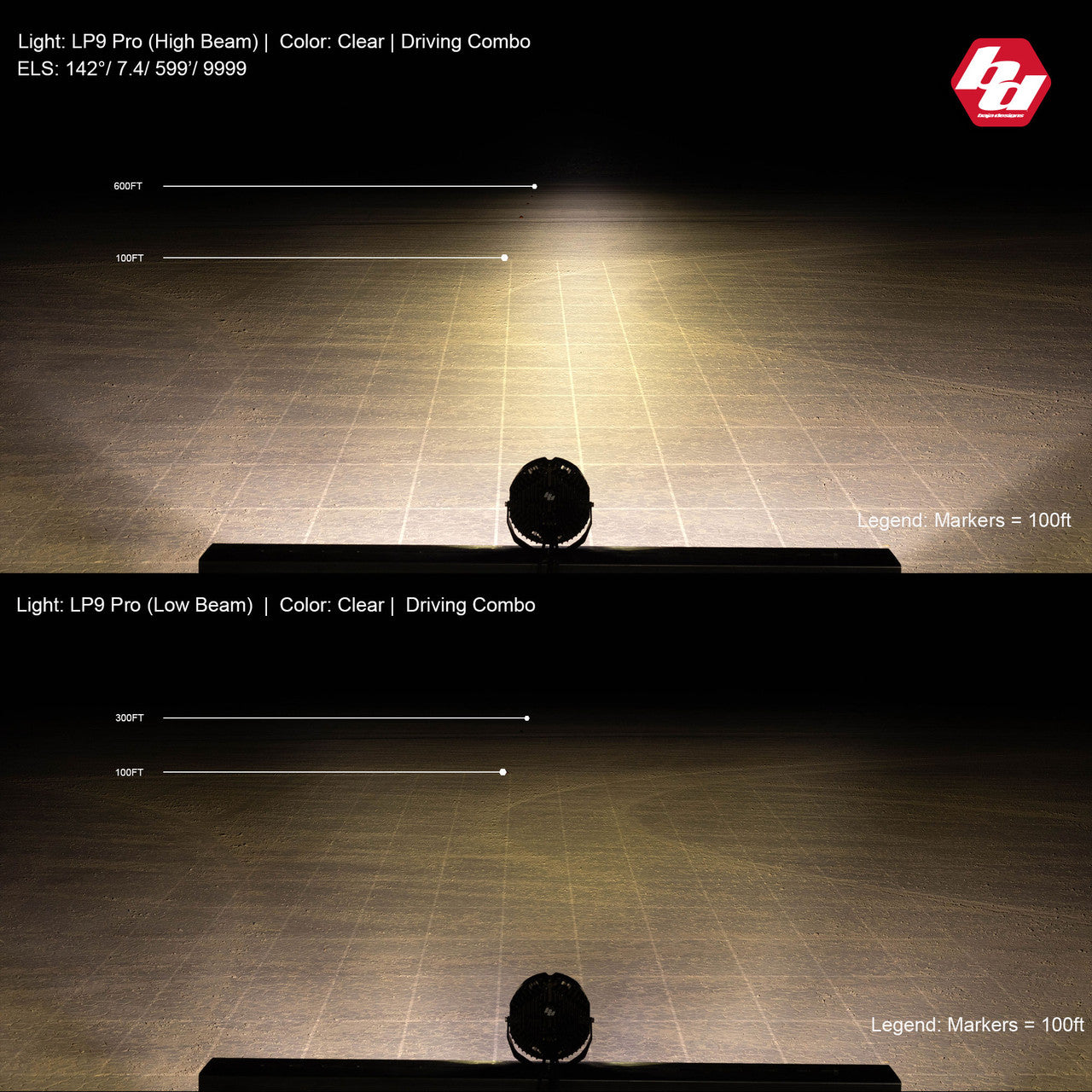

The LP9 Pro is available in multiple patterns to suit your needs. The driving/combo pattern provide maximum trail coverage in a single light. The driving/combo pattern is equipped with both driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3).

The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.

The addition of red, blue, or green backlight options alongside our original amber on the LP6 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention

Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for Exhibition Use Only. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.

NOTE: This light does not come with a wiring harness.

  • LP9 Pro LED Auxiliary Light Pod
  • Light Pattern: Driving/Combo
  • Lens Color: Clear
  • Backlight: Available in Amber, Blue, Green, Red
  • Satisfaction Guarantee - 30-Day Money Back Guarantee
  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService - Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Safely Driving LEDs at 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color

Specs

LP9 Pro LED Light Pod
Product TypeLP9 Pro LED Light Pod
DescriptionDriving/Combo; Clear
Beam PatternDriving/Combo
Lighting ModesHigh Beam / Low Beam / Day-Time Running Backlighting
Lighting TypeForward Projecting
Lighting TechnologyLED
Lighting Quantity9
Brightness (Lumens)12,547
Wattage (W)124.200
Amperage Rating (A)9
Average Rated Life (hr.)49,930
Backlight Amperage Rating (A)0.200
Backlight Wattage (W)2.800
Secondary Lighting TypeIntegrated Peripheral Technology (IPT)
Secondary Lighting TechnologyLED
Secondary Light Quantity6 LEDs
Secondary Brightness (Lumens)2,302
Secondary Wattage (W)21
Secondary Amperage Rating (A)1.520
Lens ColorClear
Lens MaterialHardcoated Polycarbonate
Housing ColorBlack
Housing MaterialPowder Coat Cast Aluminum
Bezel MaterialPowder Coat Cast Aluminum
Terminal ConnectorDT06-4S Deutsch
Terminal TypeMating Connector
Mounting Hardware MaterialStainless Steel
Mounting Hardware IncludedYes
Wiring Harness IncludedNo
Overvoltage ProtectionBuilt-In
Universal or SpecificUniversal
Light Quantity1

Fitment

Universal

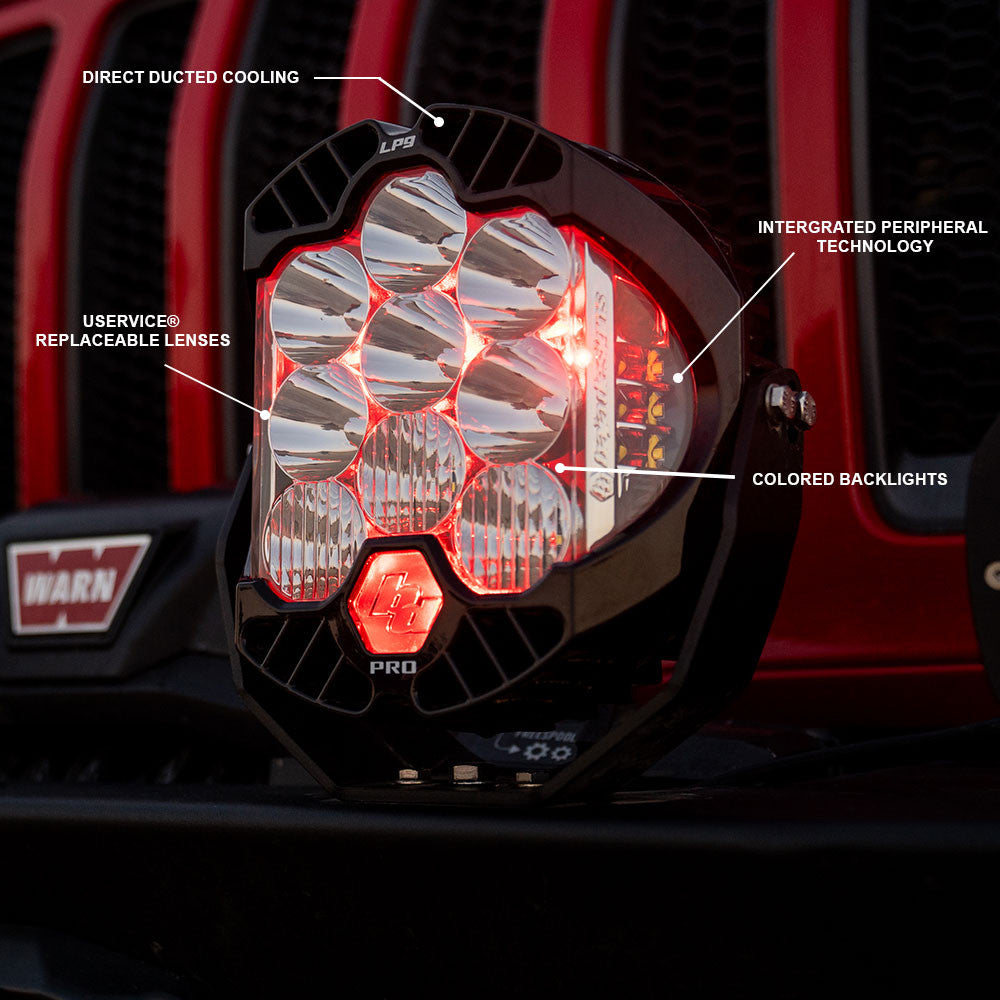

GET TO KNOW THE LP SERIES

  • Direct Ducted Cooling (DDC)

    With so much power, a cooling system was an integral part of making the LP series perform at the highest level. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.

  • Integrated Peripheral Technology (IPT)

    One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.

  • Unique Design

    The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.

  • Color Backlight Options

    Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.

  • uService Lens Replacement

    Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.

Baja Designs LP Series - Inside Look
