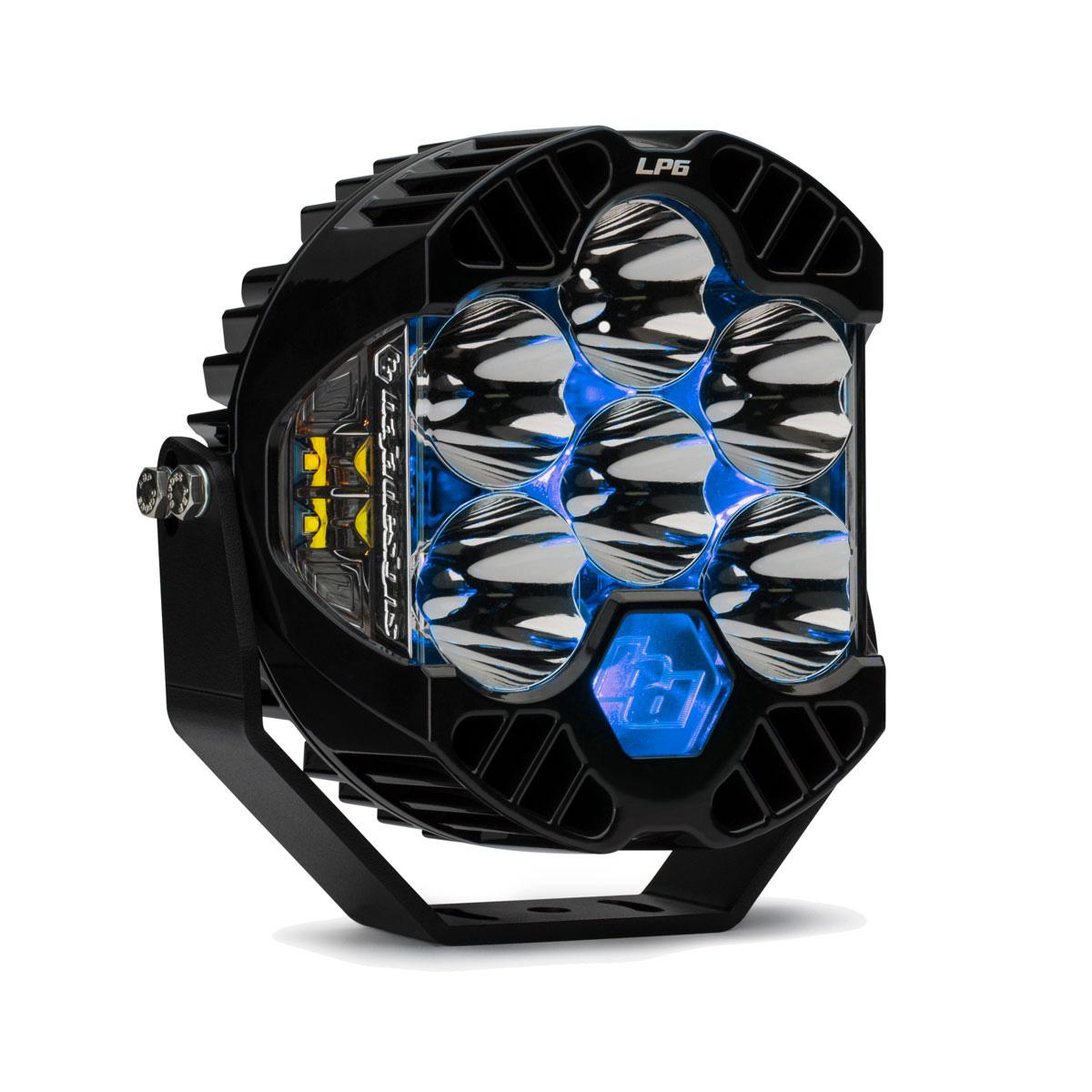

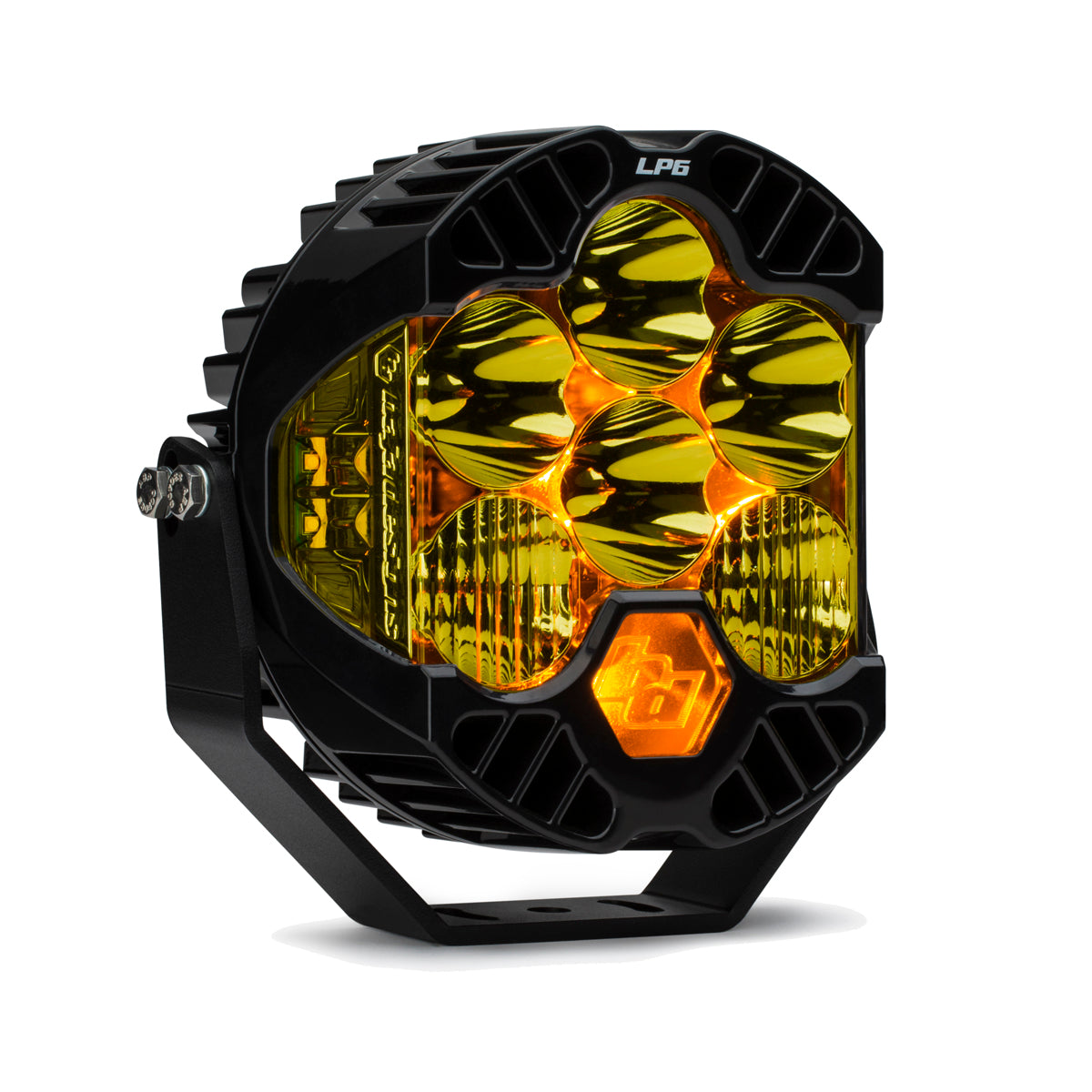

LP6 Pro LED Auxiliary Light Pod - Universal
LP6 Pro LED Auxiliary Light Pod - Universal
SKU: SKU: 270001
130 in stock
Couldn't load pickup availability









Product Details
Description
The LP6 Pro stands as a 6-inch powerhouse, delivering a total of 11,225 lumens and a 200-degree spread of usable LED light through our dedicated Integrated Peripheral Technology (IPT). For optimal performance, the LP6 integrates Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. Featuring colored daytime running light, low power, and high-power modes, the LP6 effortlessly caters to all your lighting needs.
Available in various patterns, the LP6 Pro suits diverse preferences. The Driving/Combo pattern offers maximum trail coverage with a blend of driving (42 degrees) and spot (8 degrees) optics for both near-field and distance applications. The Spot pattern, with its longer and narrower 8-degree beam focus, illuminates further down the trail or road, ideal for use with additional wide cornering or driving/combo auxiliary lights in Lighting Zones 4 & 5.
With additional red, blue, or green backlight options alongside the original amber, the LP6 Pro allows enthusiasts to customize their vehicle for shows, photo shoots, or anywhere attention is desired.
Baja Advantage:
- Satisfaction Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Light Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5).
Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are intended for exhibition use only. Avoid usage on public roads to prevent confusion with law enforcement or emergency vehicles. The owner/driver is responsible for adhering to all highway equipment laws and safety regulations.
Specs
LP6 Pro LED Auxiliary Light Pod | |
---|---|
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | High Beam / Low Beam / Day-Time Running Backlighting |
Lighting Quantity | 6 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | LP6 Pro LED Light Pod |
Secondary Amperage Rating (A) | 1.000 |
Secondary Brightness (Lumens) | 1972 |
Secondary Light Quantity | 4 LEDs |
Secondary Lighting Technology | LED |
Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
Secondary Wattage (W) | 15 |
Terminal Connector | DT06-4S Deutsch |
Terminal Type | Mating Connector |
Universal or Specific | Universal |
Main Wattage (W) | 103.500 |
Main Amperage Rating (A) | 7.500 |
Average Rated Life (hr.) | 49,930 |
Backlight Amperage Rating (A) | 0.300 |
Backlight Wattage (W) | 4.140 |
Beam Pattern | Spot |
Bezel Material | Powder Coat Cast Aluminum |
Brightness (Lumens) | 11225 |
Description | Spot; Clear |
Housing Color | Black |
Housing Material | Powder Coat Cast Aluminum |
Fitment
Universal

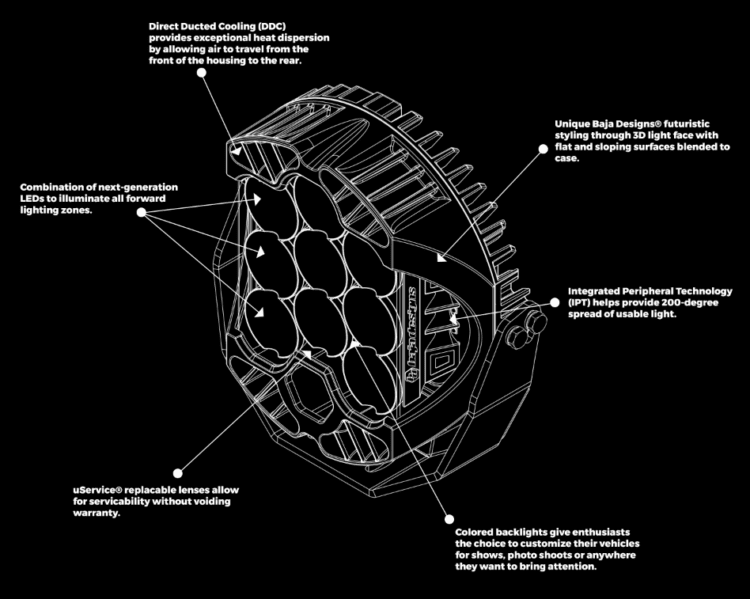

GET TO KNOW THE LP SERIES
-

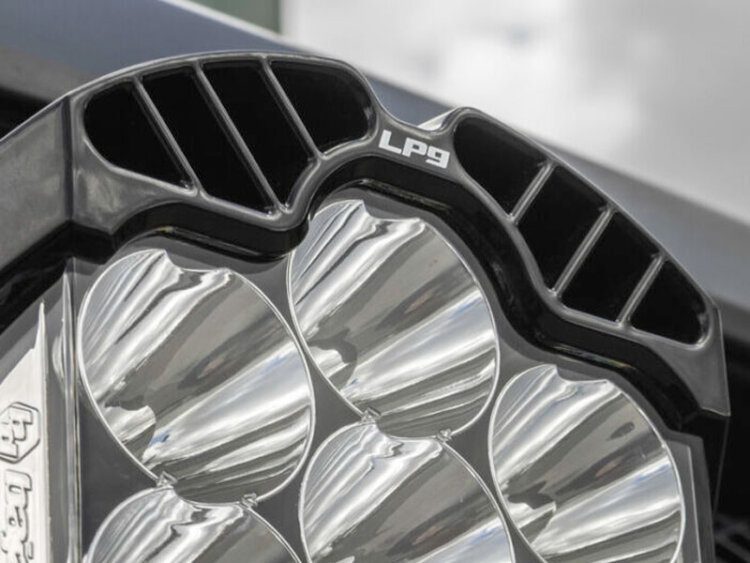

Direct Ducted Cooling (DDC)
With so much power, a cooling system was an integral part of making the LP series perform at the highest level. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.
-
Integrated Peripheral Technology (IPT)
One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.
-
Unique Design
The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.
-

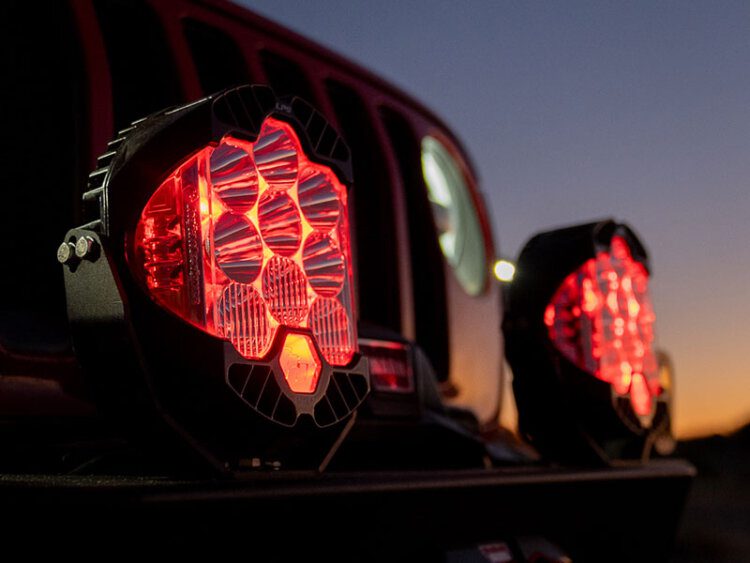

Color Backlight Options
Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.
-

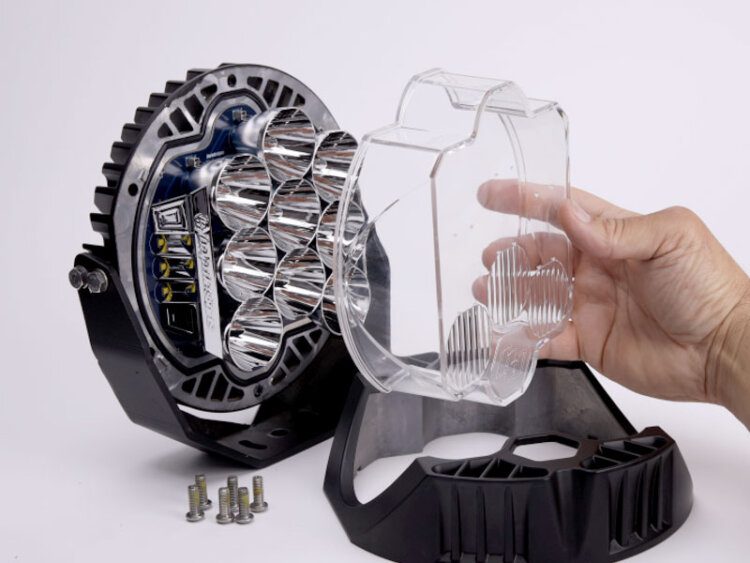

uService Lens Replacement
Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.
Baja Designs LP Series - Inside Look
