GMC Sierra S8 30-Inch Behind the Grille Light Bar Kit
GMC Sierra S8 30-Inch Behind the Grille Light Bar Kit
SKU: SKU: 447850
Hurry up! Only 4 items in stock.
Couldn't load pickup availability

Product Details
Description
For anyone that's interested in serious lighting performance with styling in mind, the S8 behind-the-grille kit for the GMC Sierra 2500HD/3500HD ('20-23) will provide you with 19,050 raw lumens and an amber backlit feature without cutting or drilling. This kit will include a wiring harness, a 3-pin splitter, and an amber backlit fuse tap kit. This combination will enable users to tap into their vehicle's ignition which will automatically trigger the amber backlit LEDs. A turn-key solution with attractive safety features, pleasing to the eye while drawing minimal amps will keep you safe while on the trails.
Baja Advantage:
- Satisfaction Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 Percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Features:
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
- (S8 Patent D780,964)

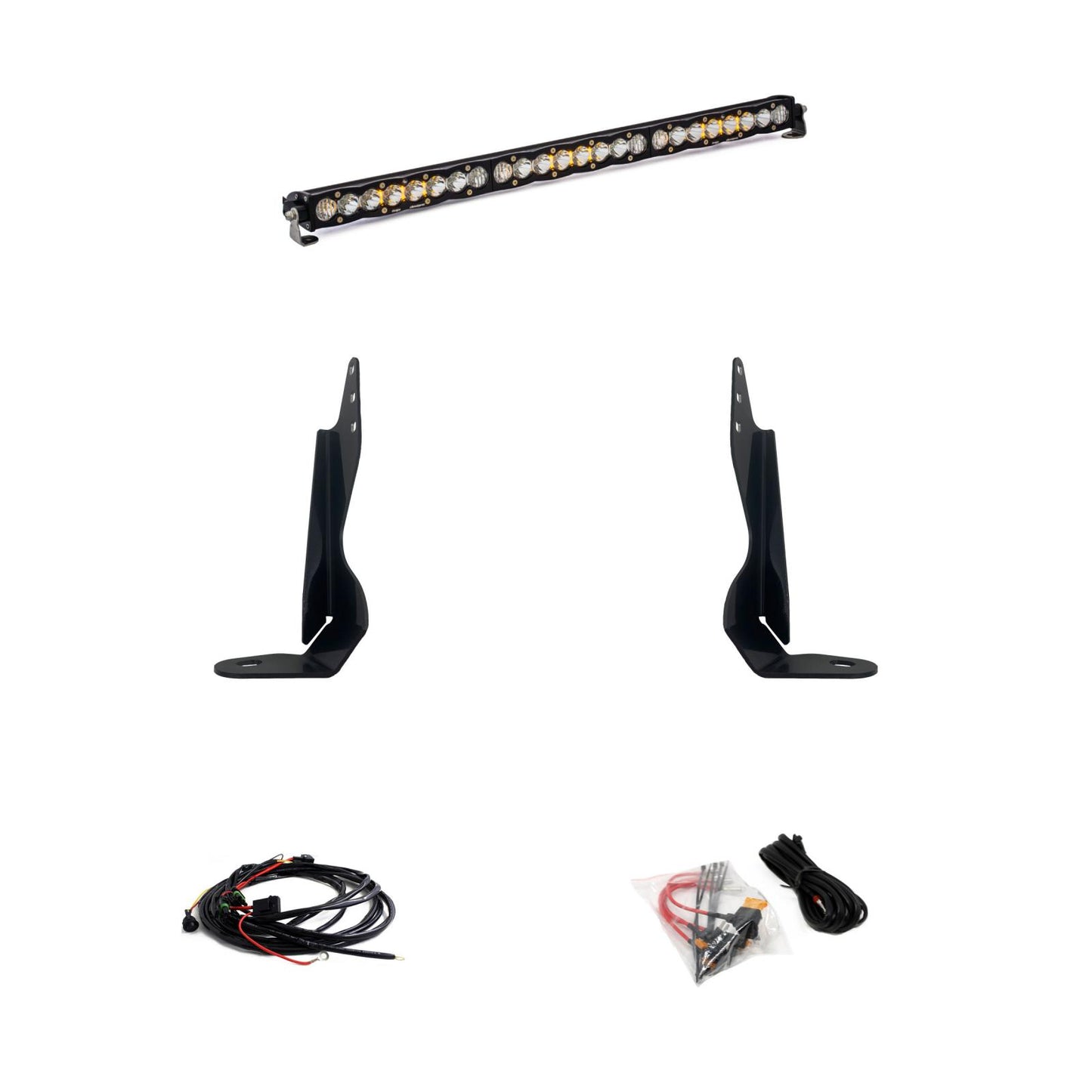

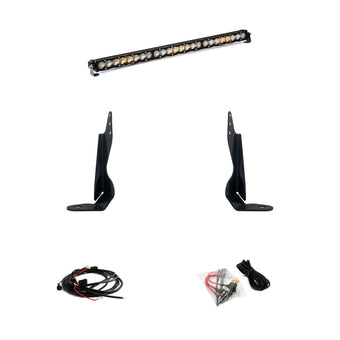

Kit Includes:
- (1x) S8 30" light bar, driving combo clear
- (2x) Behind the grille mounting brackets
- (1x) Wiring harness - 640115
- (1x) S8 backlight wiring harness add-on - 640177
- All Necessary Mounting hardware
Light Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Specs
GMC S8 30-Inch Behind the Grille Light Bar Kit Amperage Rating (A) 12.0 Average Rated Life (hr.) 49,930 Beam Pattern Driving/Combo Bezel Material Billet Machined Aluminum Brightness (Lumens) 19,050 Description Driving/Combo; Clear Housing Color Black Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize Lens Color Clear Lens Material Hardcoated Polycarbonate Light Quantity 1 Lighting Modes Beam/Amber Backlit Feature Lighting Quantity 24 Lighting Technology Cree LED Lighting Type Forward Projecting Mounting Hardware Description Mounting Brackets Mounting Hardware Included Yes Mounting Hardware Material Stainless Steel Overvoltage Protection Built-In Product Type S8 30 Inch LED Light Bar Universal or Specific Universal Wattage (W) 180 Wiring Harness Included No
Fitment
2020-2023 GMC Sierra 2500 HD
2020-2023 GMC Sierra 3500 HD
