GMC S8 Dual 30 Inch Grille Light Bar Kit
GMC S8 Dual 30 Inch Grille Light Bar Kit
SKU: SKU: 447854
Hurry up! Only 3 items in stock.
Couldn't load pickup availability


Product Details
Description
This is a turn key solution for anyone that is interested in serious lighting performance with styling in mind. This Dual S8 behind the grill kit will provide you with over 38,000 lumens and an amber backlit feature without cutting or drilling!
This kit will include a wiring harness, 3-pin splitter, and amber backlit fuse tap kit. This combination will enable users to tap into their vehicle's ignition which will automatically trigger the amber backlit LEDs. This attractive safety feature is pleasing to the eye, while drawing minimal amps and keeping you visible while out on the trail.
The Baja Designs Advantage:
• Satisfaction Guarantee – 30-Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService – Replaceable Lenses and Optics
• ClearView – All the Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Safely Driving LEDs at 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

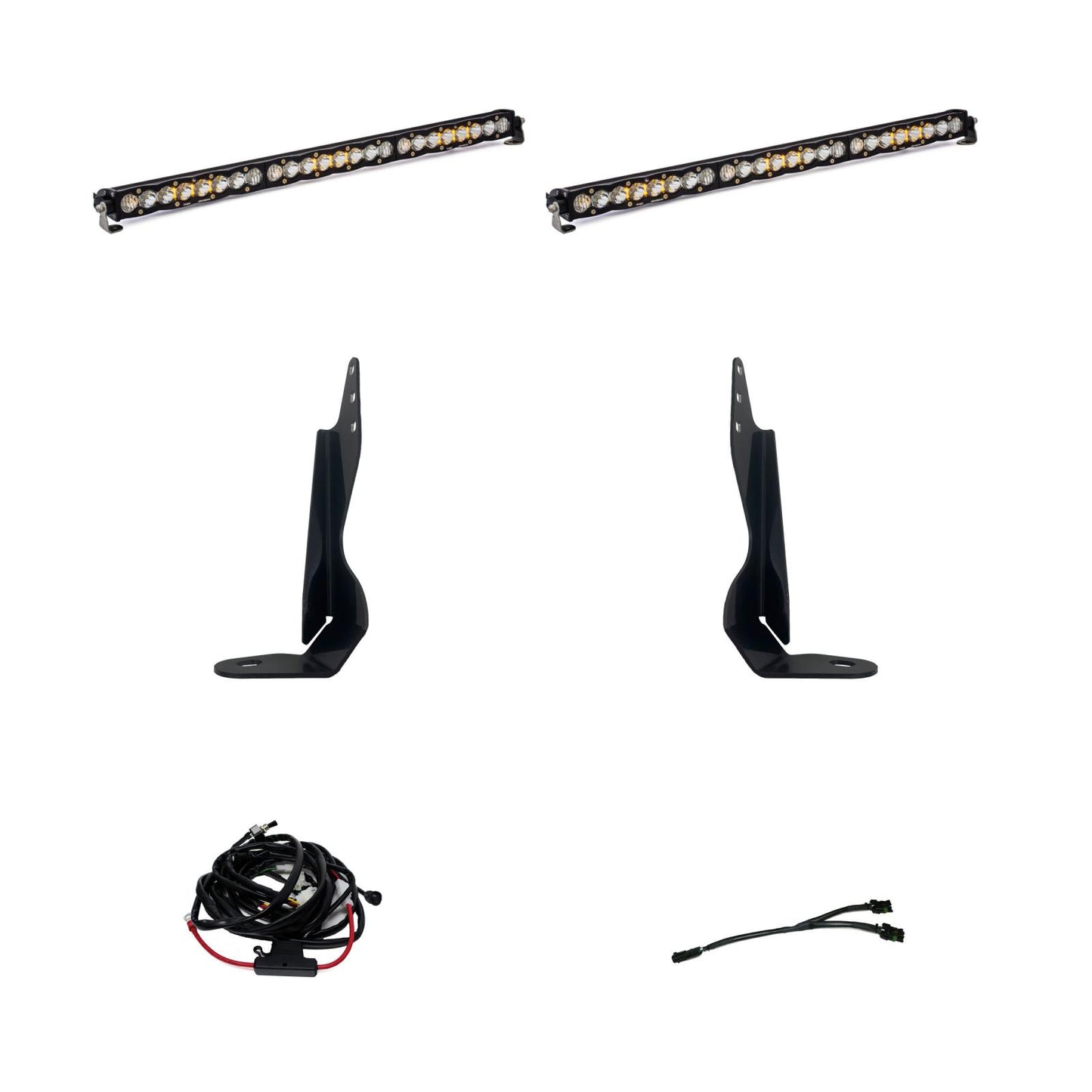

Kit Includes:
- x2 S8 30 inch Driving Combo
- Wiring
- Hardware
- Brackets
Light Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3).
NOTE: This kit does not fit the GMC AT4 model due to the difference in the grille.
Specs
S8 Dual 30 Inch Grille Light Bar Kit | |
Amperage Rating (A) | 12.0 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 19,050 |
Description | Driving/Combo; Clear |
Housing Color | Black |
Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam/Amber Backlit Feature |
Lighting Quantity | 24 |
Lighting Technology | Cree LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Mounting Brackets |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | S8 30 Inch LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 180 |
Wiring Harness Included | No |
Fitment
2020-2022 GMC Sierra 2500 HD
2020-2022 GMC Sierra 3500 HD
Note: This kit is not compatible with GMC AT4 models due to grille design differences.
