Ford XL Linkable Bumper Light Kit
Ford XL Linkable Bumper Light Kit
SKU: SKU: 448067
11 in stock
Couldn't load pickup availability
Product Details
Description
Full adjustment; total performance. The Baja Designs 6XL Linkable LED light bar bumper kit for the 2021-on Ford Raptor is designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. Built around our popular XL Sport shallow moto housing, each light in the XL Linkable kit offers up 3,162 raw lumens each from our next generation LED that provide a smooth blend due to the use of our wide cornering, driving combo and spot lenses, illuminating zones 1, 2, 3 and 4 simultaneously. The XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of the Raptor's bumper. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks, the 6XL Linkable light bar kit will elevate your Ford Raptor.
Baja Advantage:
- Satisfaction Guarantee 30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color

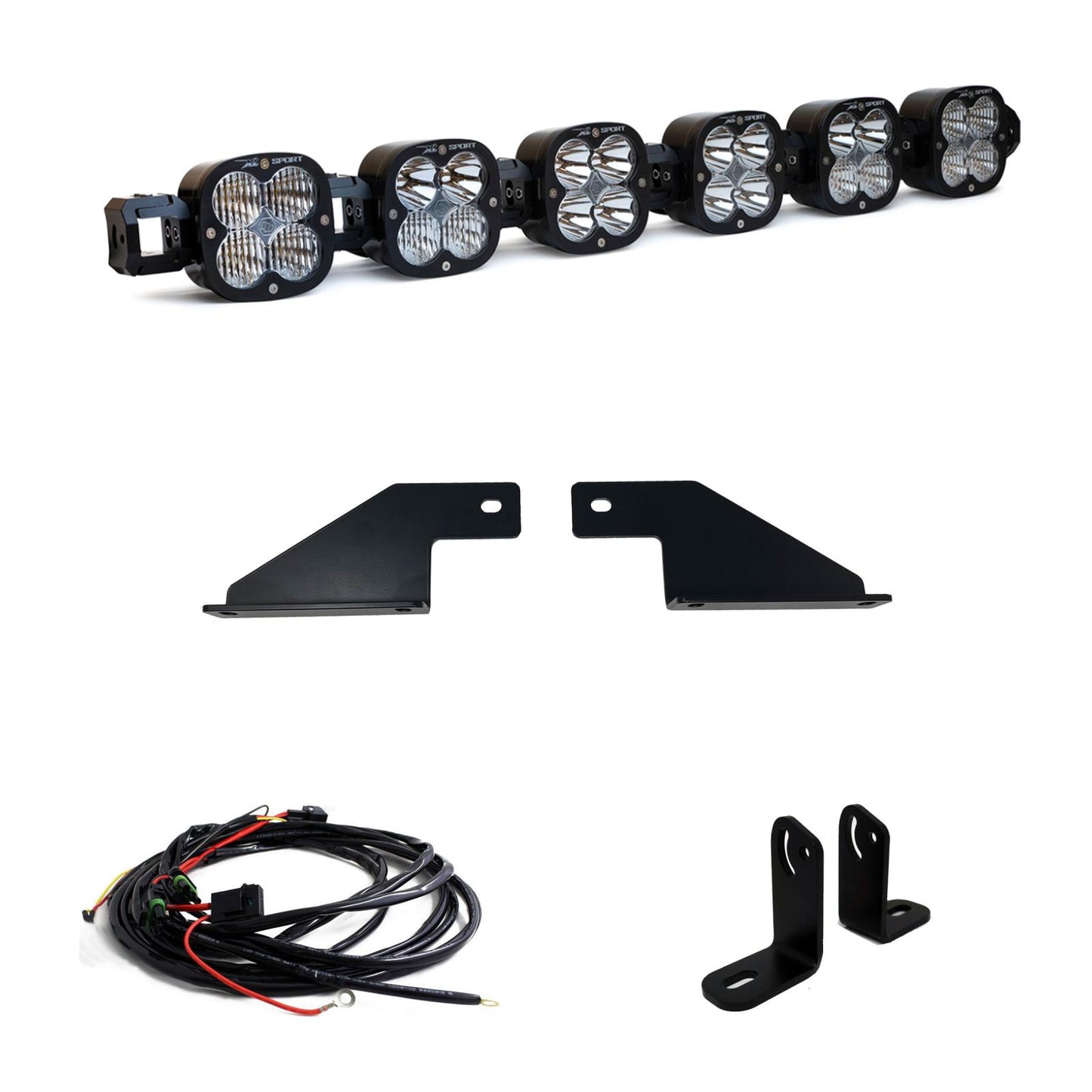

Included:
- x1 6 XL Linkable Kit
- x2 Mounting Brackets
- x1 Pre-Load L Bracket Kit
- x1 Wiring Harness
- All necessary hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Specs
| XL Linkable Bumper Light Kit | |
| Amperage Rating (A) | 12 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Multi-Pattern |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 18,972 |
| Description | 6XL Sport; Multi-Pattern; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 6 |
| Lighting Modes | Beam |
| Lighting Quantity | 24 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL Linkable LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 156 |
| Wiring Harness Included | Yes |
Fitment

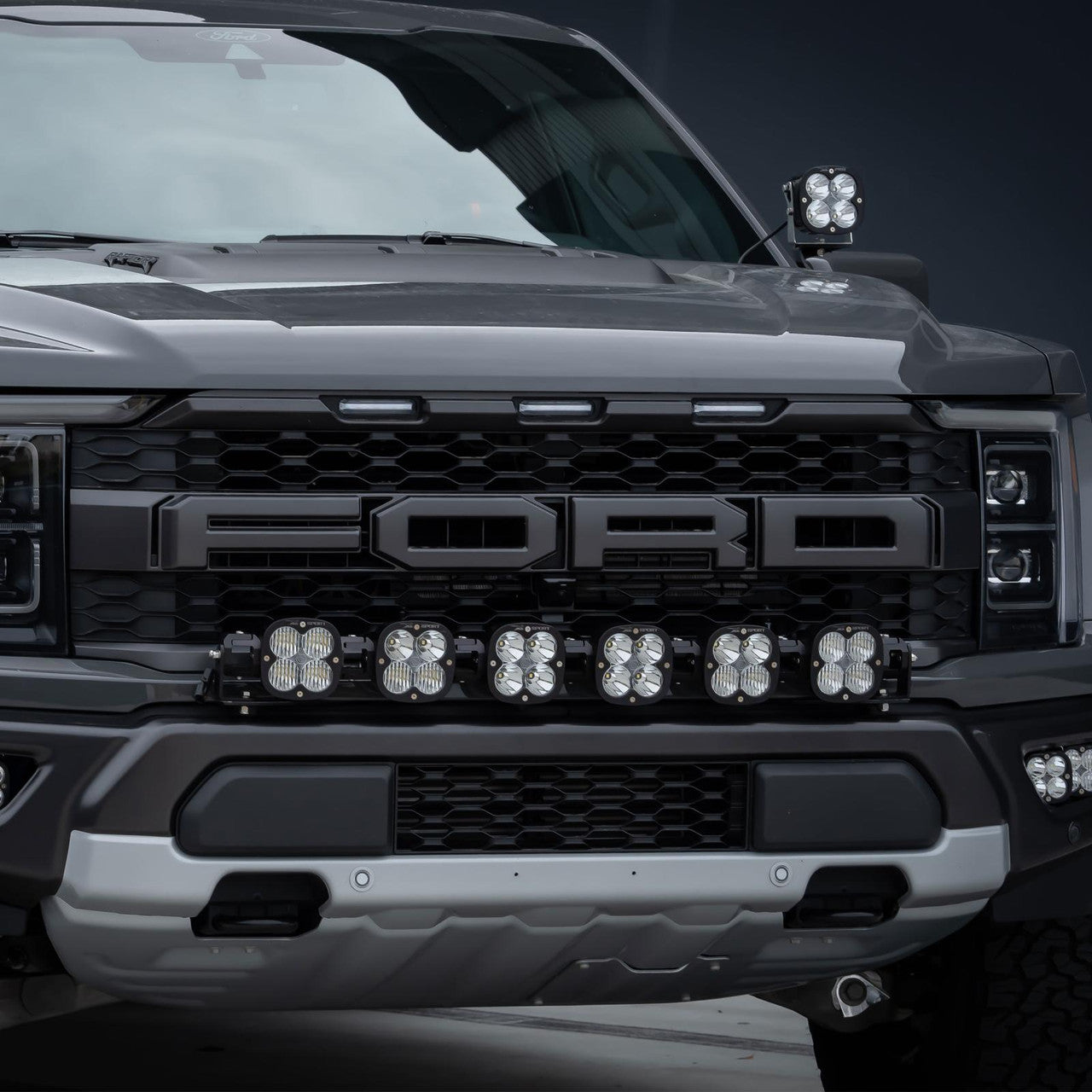

2021-2024 Ford F-150 Raptor
