Ford Squadron SAE/Sport Fog Pocket Light Kit

The Baja Designs Squadron SAE/Squadron Sport fog pocket light kit for the 2021-2023 Ford F-150 trucks w/ daytime running lights is a premium, high-performance upgrade engineered for both on-road and off-road use. This all-inclusive LED fog light kit includes one pair of Squadron SAE road-legal fog lights offering 2,420 raw lumens each and one pair of Squadron Sport lights in a versatile Driving/Combo lens pattern producing 3,162 raw lumens each, delivering powerful illumination exactly where you need it. For convenience and full control, one pair of lights connects to your OEM F-150 fog light switch, while both pairs can be activated via the included toggle switch harness or your factory upfitter switch (depending on what kit you choose).

The next-generation Squadron SAE is engineered with advanced aspheric projector optics and cutting-edge LED technology, producing a 56% increase in luminous output over previous SAE models. These lights are SAE J583 compliant, providing a sharp, road-safe beam pattern ideal for fog, dust, rain, and low-visibility conditions. Built to illuminate Zone 1 with a controlled, glare-free cutoff, the Squadron SAE delivers unmatched clarity and safety. For trail illumination, the Squadron Sport offers lighting into zones 1-4, giving your clarity while staying safe when off the beaten path. Designed specifically for Ford F-150 trucks with Daytime Running Lights (DRL), this kit is backed by Baja Designs’ limited lifetime warranty and a 30-day satisfaction guarantee, giving you total confidence on and off the road.

NOTE: This kit comes with everything you need to install and is designed to be used on the F-150 with Daytime Running Lights (DRL).

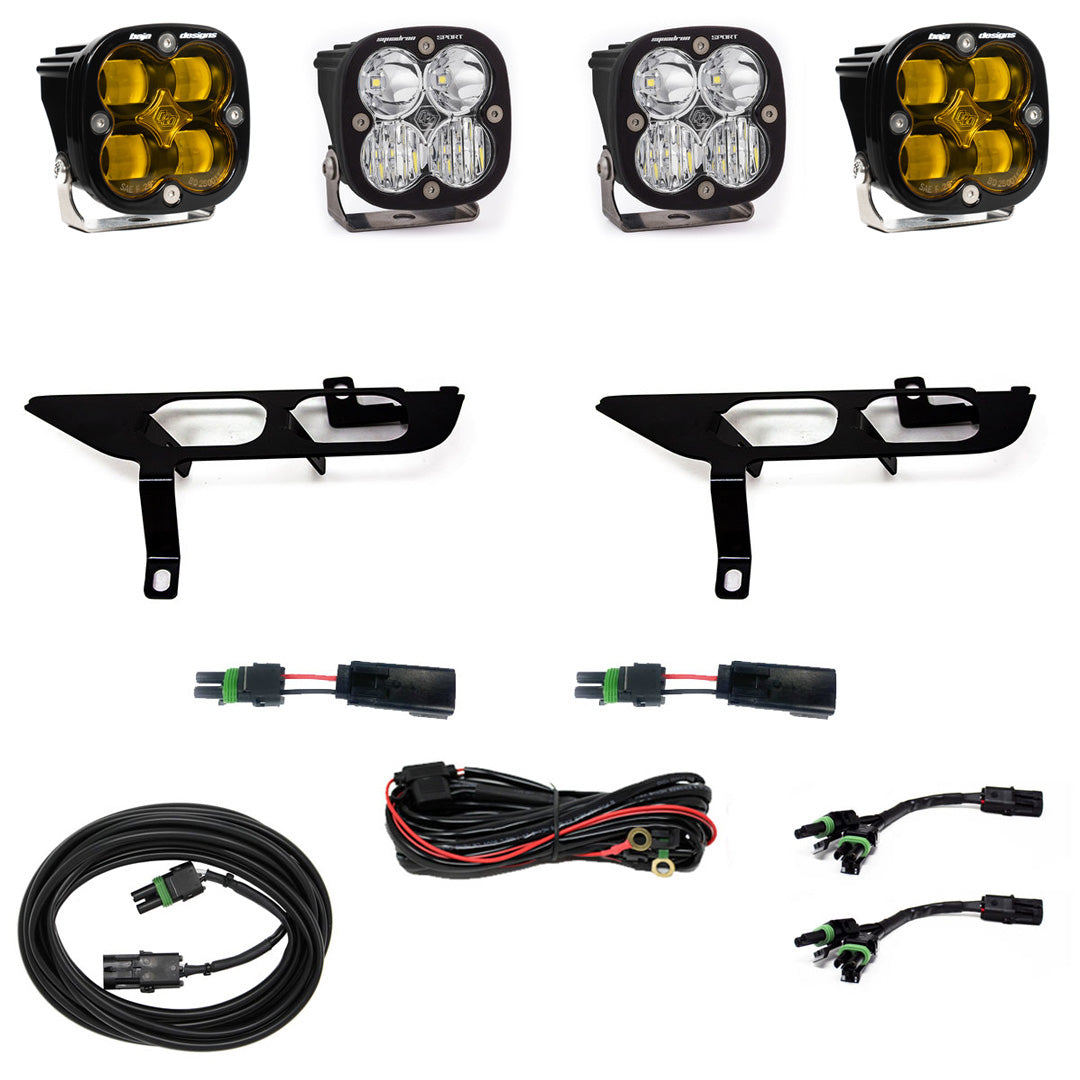

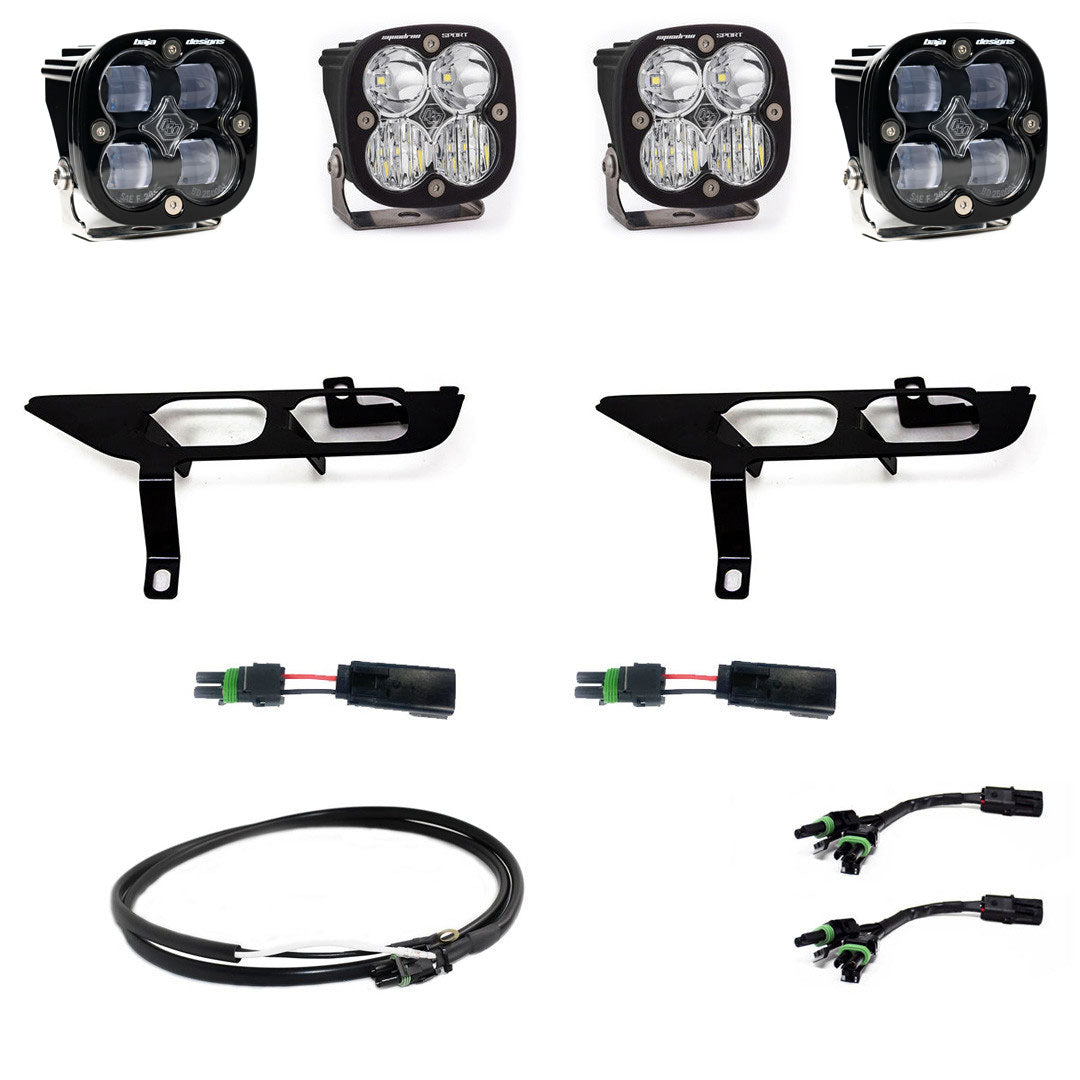

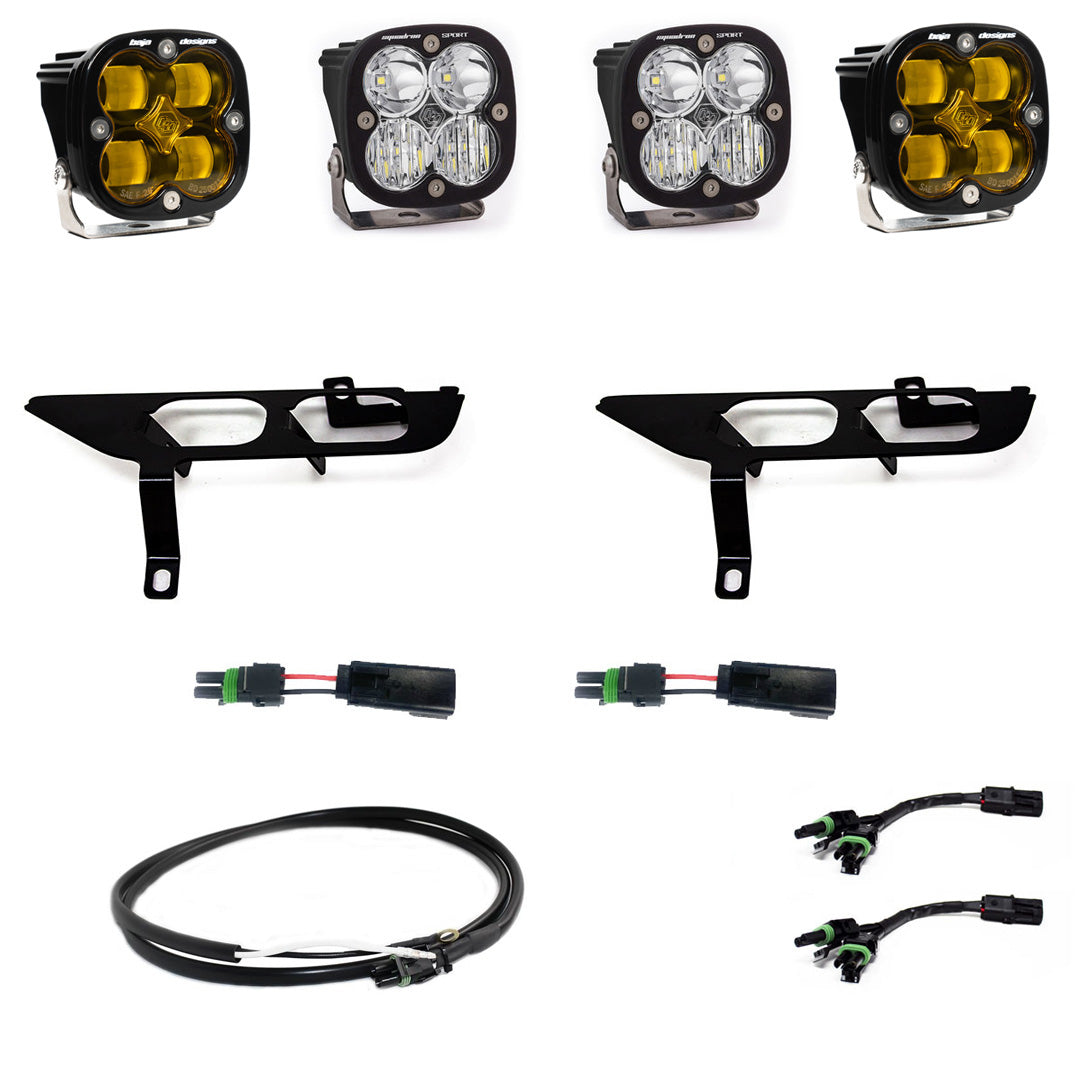

Toggle Kit Includes:

(2x) Squadron SAE – Clear or Baja Amber

(2x) Squadron Sport – Clear Driving Combo

(2x) Mounting Brackets

(2x) Adaptor Harness (600043)

(2x) Splitter Harness (613607)

(1x) Toggle Harness (640139)

(1x) 55” Splitter Harness (613606)

(2x) Anti-Backfeed Harness (600017)

Upfitter Kit Includes:

(2x) Squadron SAE – Clear or Baja Amber

(2x) Squadron Sport – Clear Driving Combo

(2x) Mounting Brackets

(2x) Adaptor Harness (600043)

(2x) Splitter Harness (613607)

(1x) Upfitter Harness (640093)

(1x) 55” Splitter Harness (613606)

(2x) Anti-Backfeed Harness (600017)

Squadron SAE Specifications (Per Light):

• Lumens: 2,420
• Wattage/Amps: 29W/2.1A

Squadron Sport Specifications (Per Light):

• Lumens: 3,162
• Wattage/Amps: 30.36 /2.2A

The Baja Designs Advantage:

• Satisfaction Guarantee – 30-Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• ClearView – All the Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Safely Driving LEDs at 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

NOTE: uService® is NOT a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.

Squadron SAE/Sport Fog Pocket Light Kit
Housing Material	Powder Coated Cast Aluminum
Lens Color	Clear or Amber
Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	Beam
Lighting Quantity	4
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	Squadron Sport LED Light Pod
Wattage (W)	30.360
Wiring Harness Included	No
Amperage Rating (A)	2.200
Average Rated Life (hr.)	49,930
Beam Pattern	SAE Fog
Bezel Material	Powder Coated Cast Aluminum
Brightness (Lumens)	3162
Description	SAE Fog; Clear or Amber
Housing Color	Black

2021-2023 Ford F-150
