Ford S8 10 Inch Dual Behind Grille Light Bar Kit
Ford S8 10 Inch Dual Behind Grille Light Bar Kit
SKU: SKU: 448065
Hurry up! Only 4 items in stock.
Couldn't load pickup availability
Product Details
Description

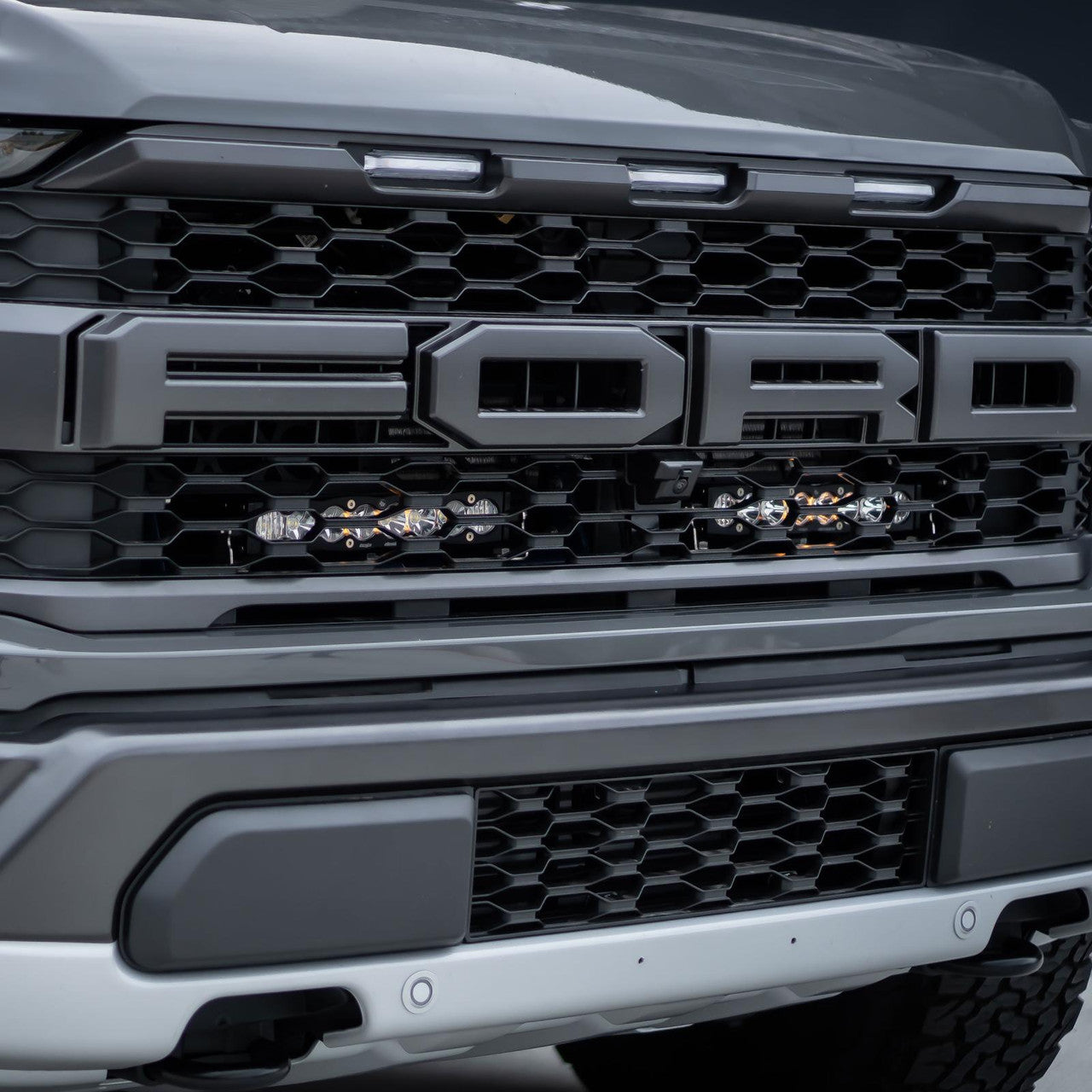

The Baja Designs S8 Behind the Grille kit for the 2021-on Ford Raptor are designed with both functionality and visual appeal in mind. This kit offers two S8 10-inch LED light bars in the choice of clear or baja amber lens colors, mounting brackets, wiring harness and hardware. The S8 10-inch LED light bar produces 6,324 raw lumens each to cut through the darkness to illuminate your favorite trail.
The additional amber backlit feature of the S8 allows you to bring the attention, matching your marker lights while cruising on the trail or the road. This kit comes with the lights, mounting hardware and wiring harness.
To give these kits and easier wiring installation each kit includes an up-fitter harness that will allow you to tap your lights into the factory up-fitter switches. Backed by our 30-day Satisfaction guarantee and Lifetime Limited Warranty for the ultimate in purchase protection.
Note: This kit will not work with adaptive cruise control relocation kits.

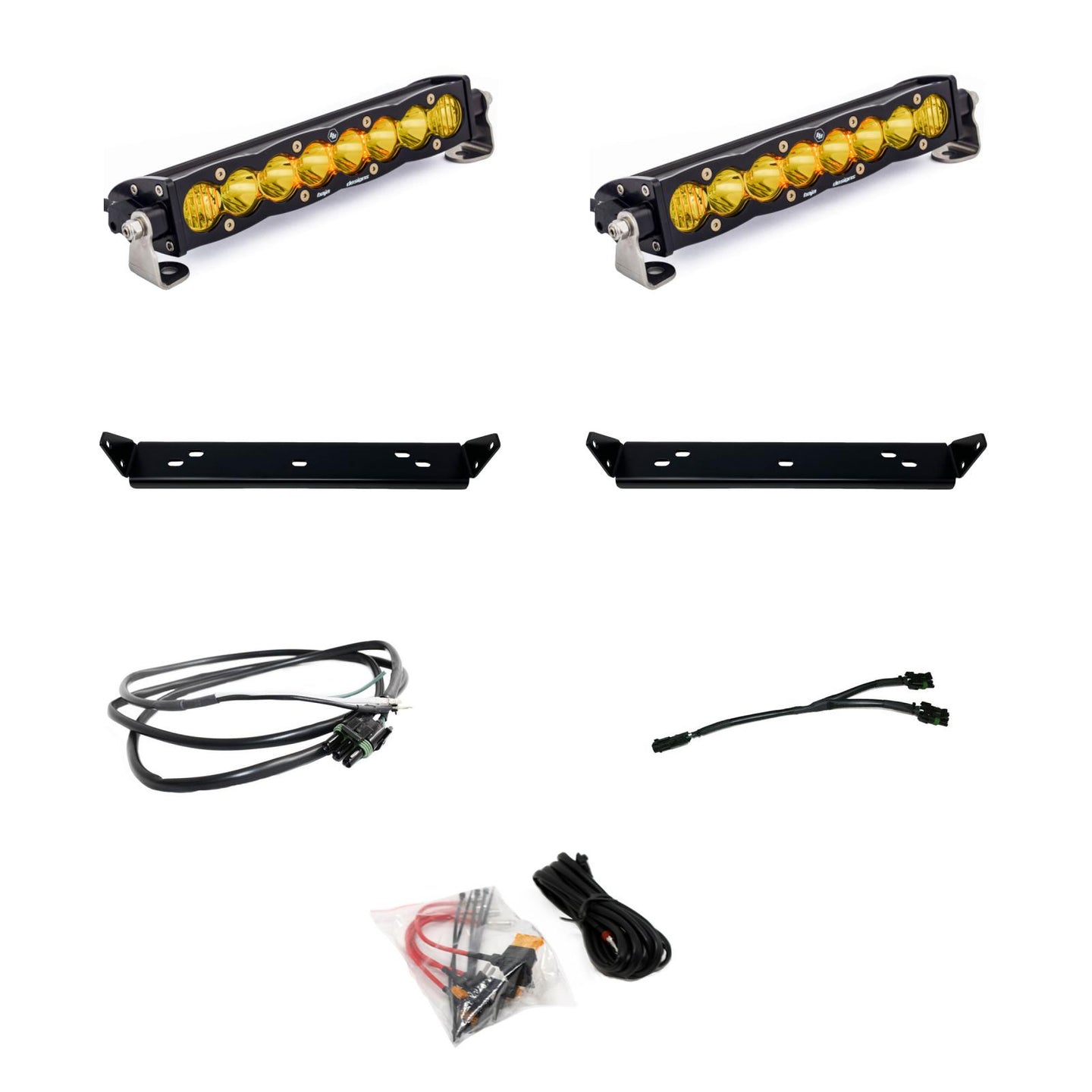

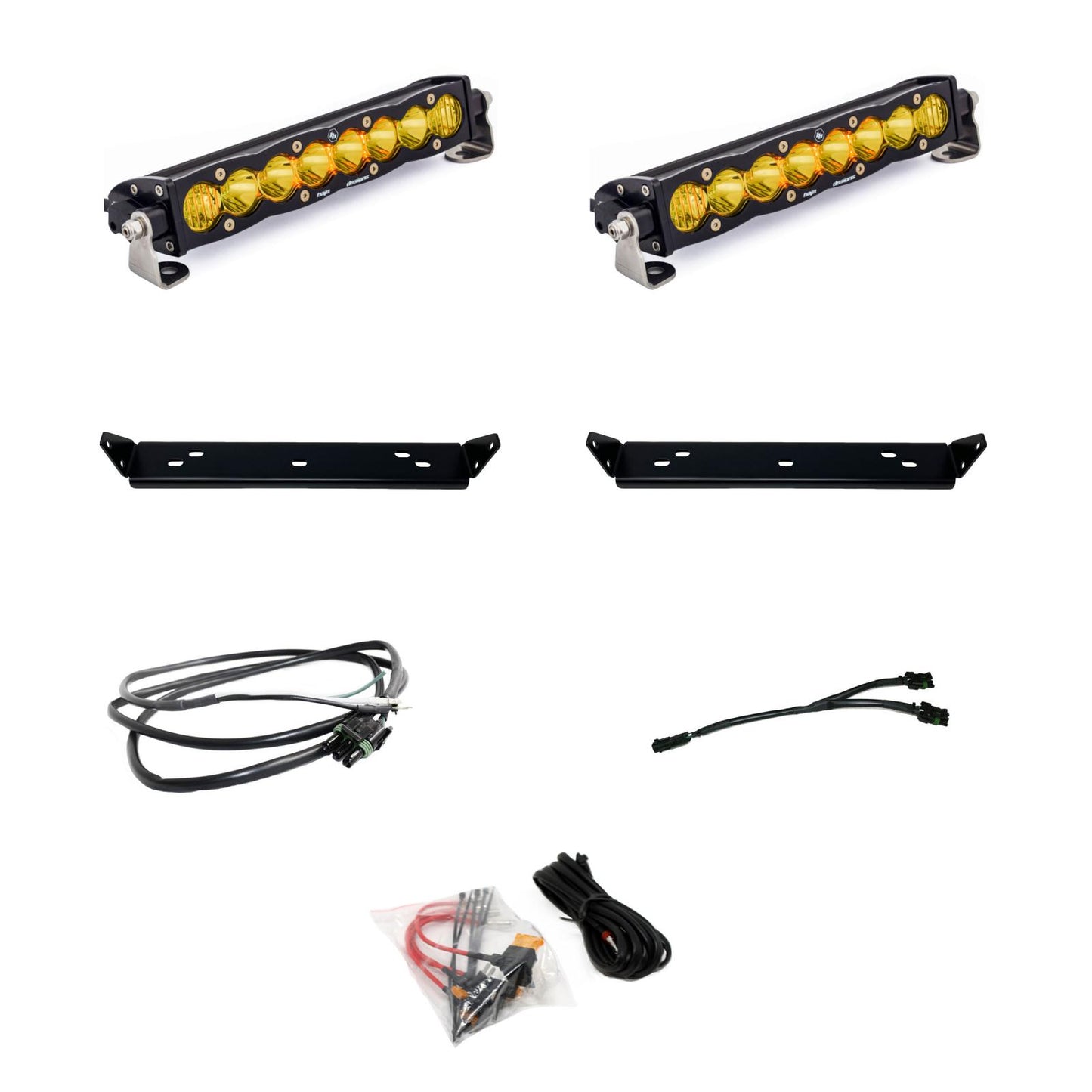

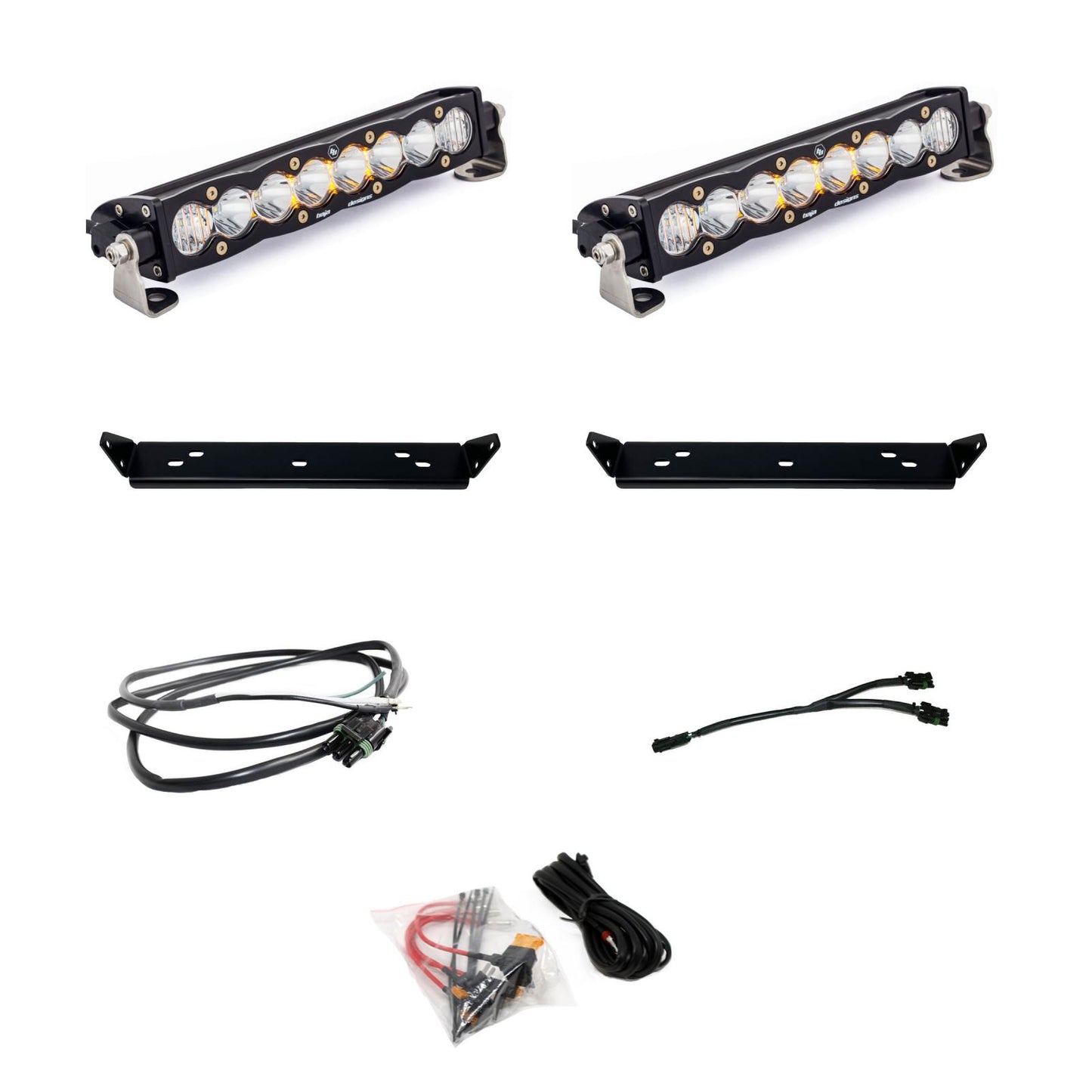

Kit Includes:
- (2x) S8 10-inch Light Bar - Driving Combo Clear or Baja Amber
- (2x) Behind the Grille Mounting Brackets
- (1x) Splitter Wiring Harness
- (1x) Upfitter Wiring Harness
- (1x) S8 Backlit Harness
- All Necessary Mounting Hardware
S8 Specifications (per light):
- 6,324 raw lumens
- 57.96W/4.2A
Specs
| S8 10 Inch Dual Behind Grille Light Bar Kit | |
| Amperage Rating (A) | 4.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 6,324 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Amber Backlit Feature |
| Lighting Quantity | 8 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S8 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 57.960 |
| Wiring Harness Included | No |
Fitment
2021-2024 Ford F-150 Raptor
2024 Ford F-150 Raptor R
2024 Ford F-150 Raptor 37
Ford S8 10 Inch Dual Behind Grille Light Bar Kit
Ford S8 10 Inch Dual Behind Grille Light Bar Kit
The Baja Designs S8 Behind the Grille kit for the 2021-on Ford Raptor are designed with both functionality and visual appeal in mind. This kit offers two S8 10-inch LED light bars in the choice of clear or baja amber lens colors, mounting brackets, wiring harness and hardware. The S8 10-inch LED light bar produces 6,324 raw lumens each to cut through the darkness to illuminate your favorite trail.
The additional amber backlit feature of the S8 allows you to bring the attention, matching your marker lights while cruising on the trail or the road. This kit comes with the lights, mounting hardware and wiring harness.
To give these kits and easier wiring installation each kit includes an up-fitter harness that will allow you to tap your lights into the factory up-fitter switches. Backed by our 30-day Satisfaction guarantee and Lifetime Limited Warranty for the ultimate in purchase protection.
Note: This kit will not work with adaptive cruise control relocation kits.
Kit Includes:
- (2x) S8 10-inch Light Bar - Driving Combo Clear or Baja Amber
- (2x) Behind the Grille Mounting Brackets
- (1x) Splitter Wiring Harness
- (1x) Upfitter Wiring Harness
- (1x) S8 Backlit Harness
- All Necessary Mounting Hardware
S8 Specifications (per light):
- 6,324 raw lumens
- 57.96W/4.2A
