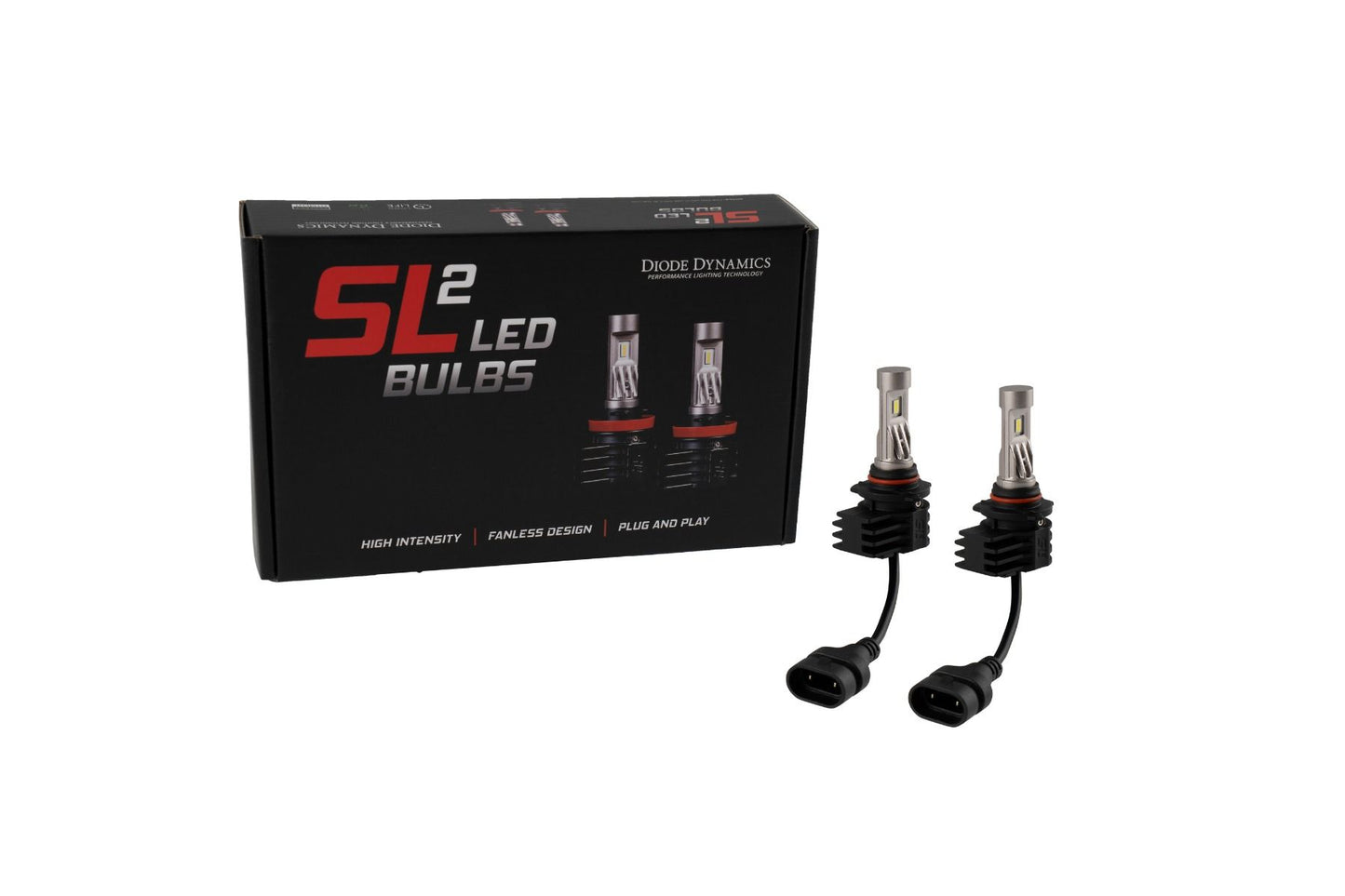

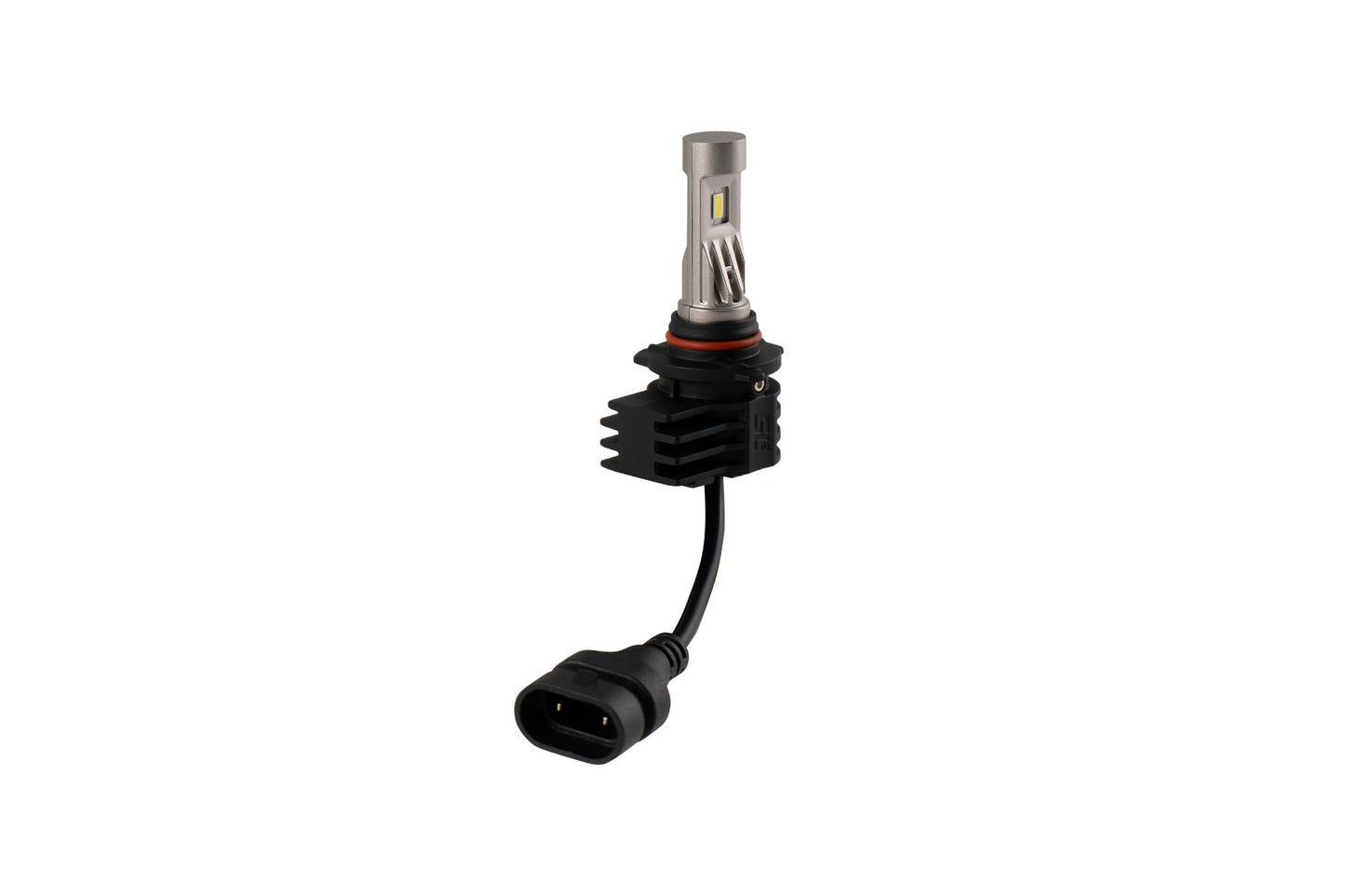

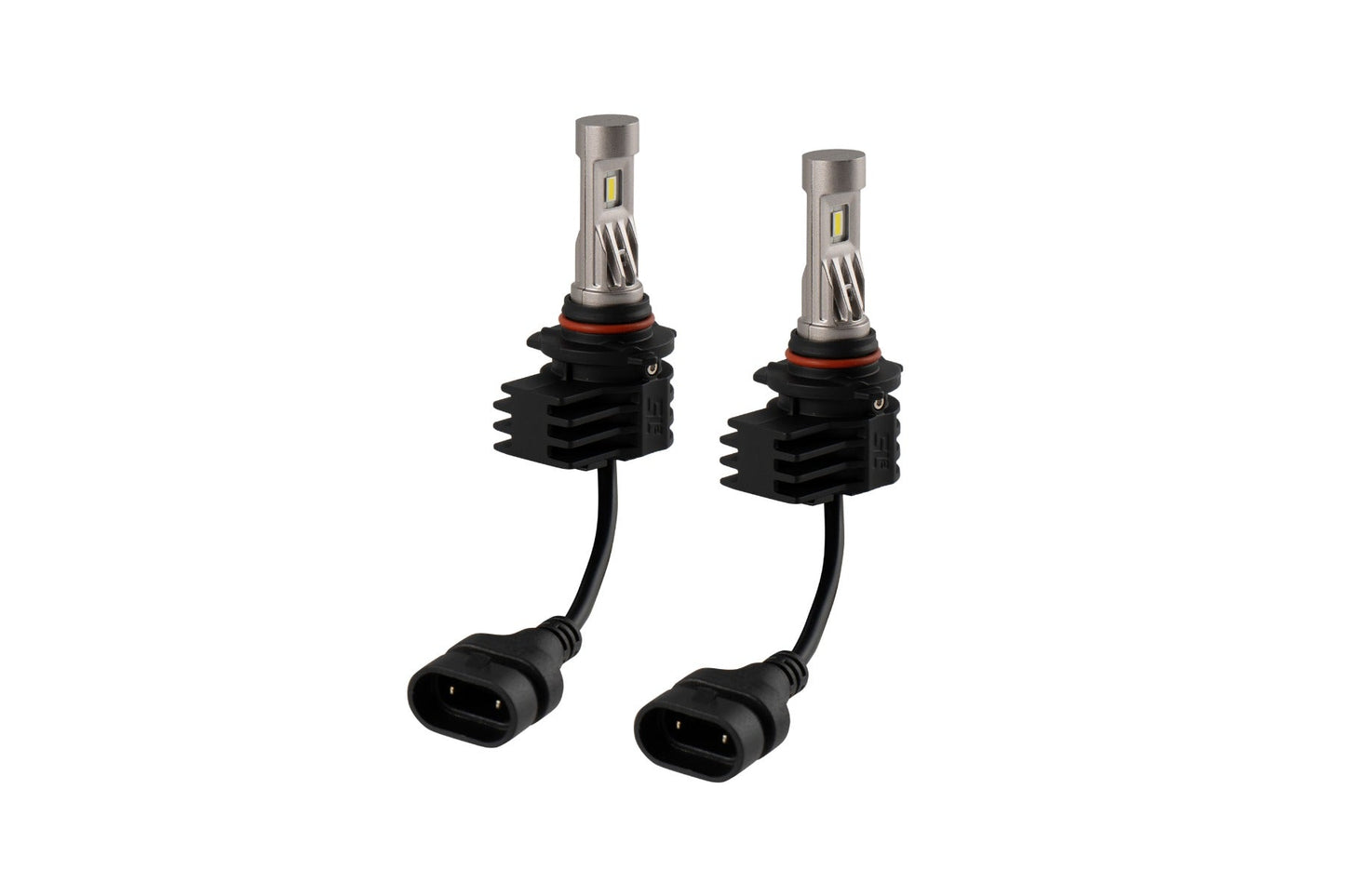

9005/9011/H10 SL2 LED Bulb
9005/9011/H10 SL2 LED Bulb
SKU: SKU: DD0463S
38 in stock
Couldn't load pickup availability
Product Details
Description
Introducing the SL2 LED Bulb! As a replacement for our popular SLF bulb the SL2 features a number of upgrades including a more compact design internal driver and improved reliability. The all-new SL2 LED bulb is a direct plug-and-play replacement providing a significant upgrade in performance.
Optimized Optical Focus. Don't be fooled by high lumen numbers. Your vehicle's fog lights are designed to focus light. If the light source in the housing is out of focus it doesn't matter how bright it is. You won't have a focused hotspot of light to shine down the road where you need it you'll just have more glare.
To fix this the SL2 LED bulb was engineered to focus light from the same location as the original bulb preserving the focus and hotspot with no added glare. It produces a functional beam pattern with a stronger hotspot for added distance and visibility.
Fanless Design. The SL2 was designed as a compact fanless solution. But that doesn't mean it's low-power! At 14 watts the bulb still provides plenty of output thanks to a copper-core circuit board and a thermally-optimized full-metal housing with integrated heatsink.
The result is a highly-effective and reliable cooling system keeping the bulb running at maximum potential without the need for a fan.
Features:
- Direct plug-and-play replacement bulb.
- Available in white or selective yellow.
- Automotive-grade LEDs for superior performance.
- Fanless design provides high reliability.
- Backed by limited lifetime warranty.
- Designed and engineered in USA (Patents Pending).
Note: LED bulbs are legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. International legality varies by country.
Specs
| 9005/9011/H10 SL2 LED Bulbs | |
|---|---|
| Measured Lumens | White: 1400 (per bulb) |
| Color Temp (CCT) | 3000K, 6000K |
| Power (Watts) | 14 |
| Operating Voltage | 9-30V |
| Current (Amps @ 12.8V) | 1.1 |
| Polarity | Polarity Specific |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| LED Emitter | Multi-Die Automotive Emitters |
| Connector(s) | OEM-Size Plug and Play |
| Driver Features | Internal, Constant Current, Transient Protection |
| Driver Dimensions | 2.19" x 1.13" x 0.56" |
| Materials | Copper PCB, Die Cast A360 Aluminum |
| Cooling | Passive, heatsink |
| Compliance Ratings | SAE J575 Durability Test |
Fitment
Bulb Size: 9005/9011/H10
Electrical Compatibility: No known electrical issues
DRL Function: Operates at full brightness for DRL
