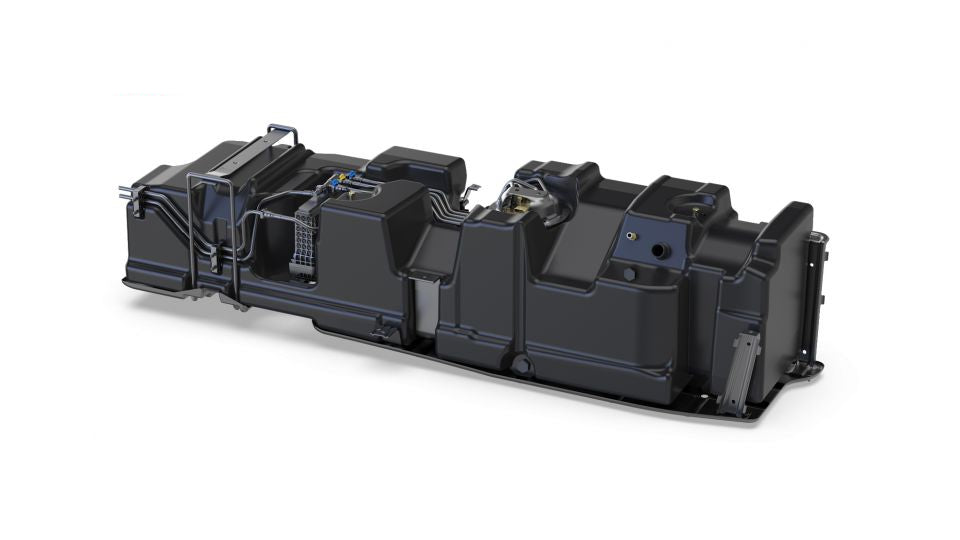

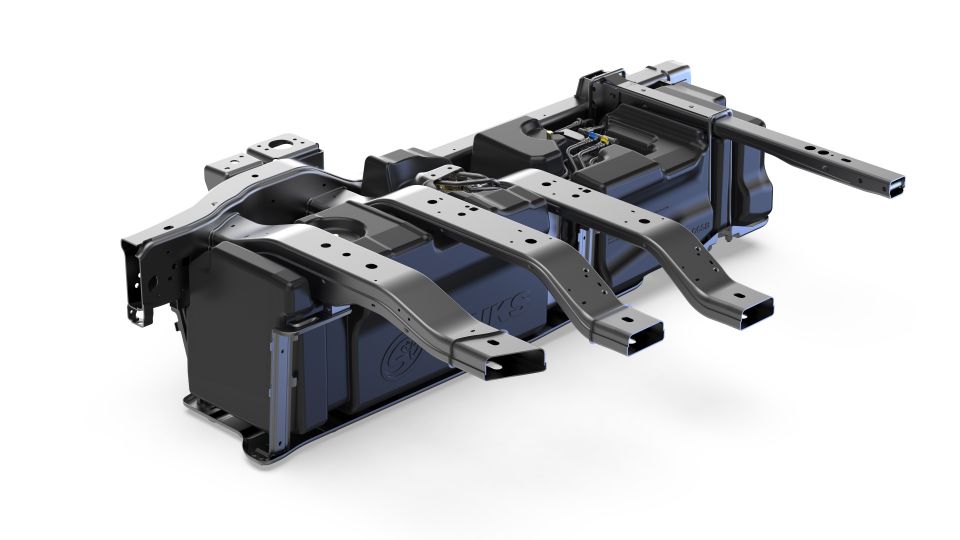

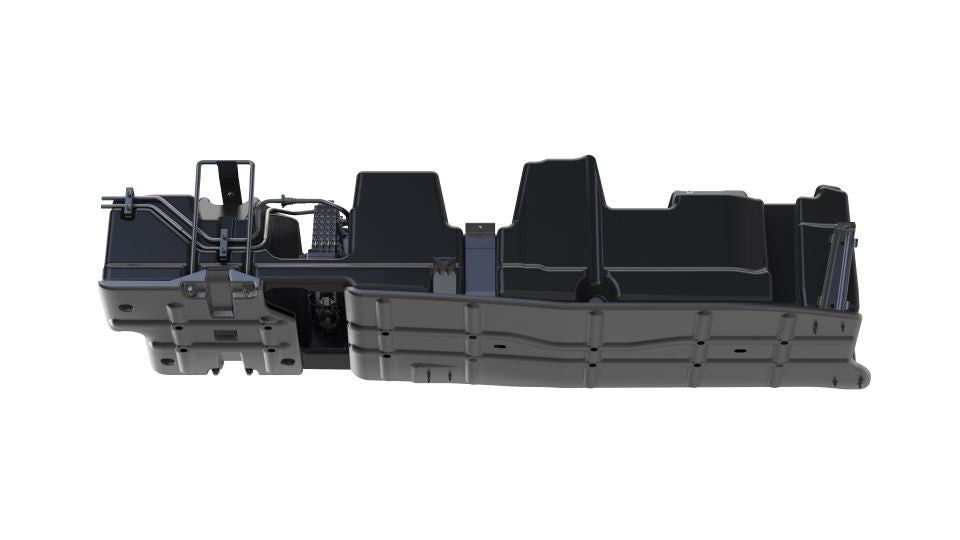

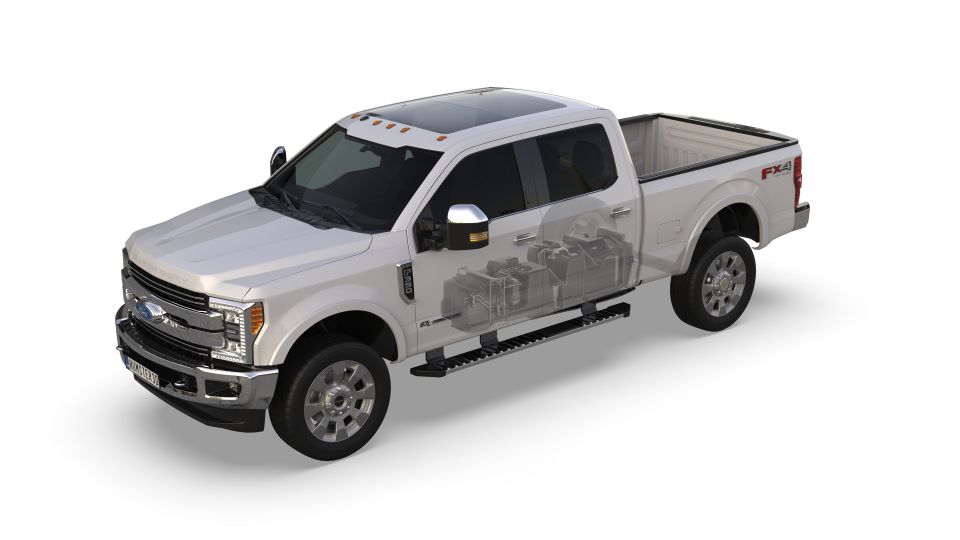

60 Gallon Replacement Fuel Tank for 2017-2024 Ford Powerstroke 6.7L Crew Cab Short Bed
60 Gallon Replacement Fuel Tank for 2017-2024 Ford Powerstroke 6.7L Crew Cab Short Bed
SKU: SKU: 10-1004
148 in stock
Couldn't load pickup availability
Product Details
Description
Stop settling for limited range and constant fuel stops. The S&B 60-Gallon Replacement Fuel Tank more than eliminates the inconvenience of the factory 34-gallon tank, giving you extended range, OEM reliability, and aftermarket flexibility—all in one rugged design.
ALMOST DOUBLES YOUR RANGE
S&B's 60-gallon fuel tank directly replaces the OEM 34-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks, allowing you to save time, go further, and get more out of your truck! Go big or go home!
EASY RECALIBRATION FOR DISTANCE TO EMPTY
We offer a free service to update the computer in your truck so the Distance to Empty (DTE) displays the accurate range. This works for 2011-2022 Ford trucks. No 2023 calibration at this time.

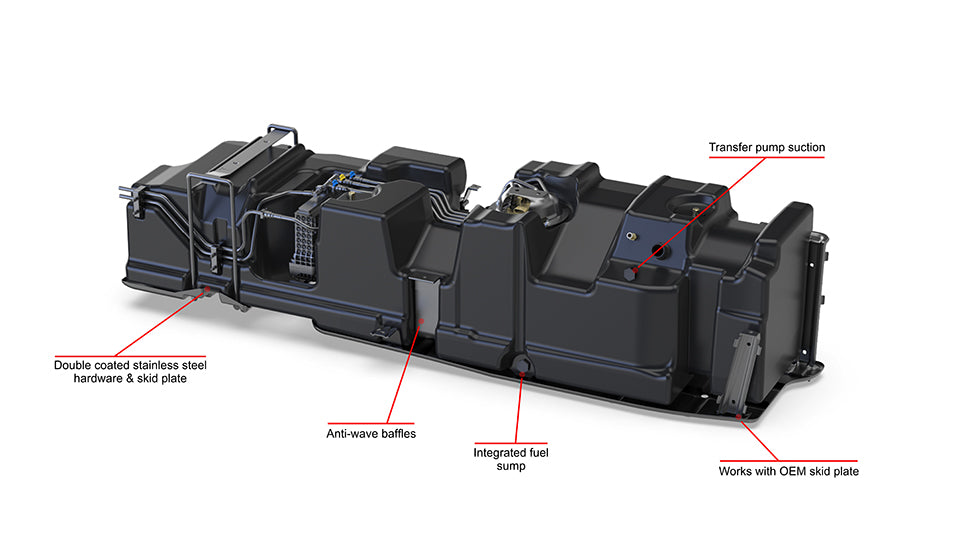

COMPATIBLE WITH THE OE SKID PLATE

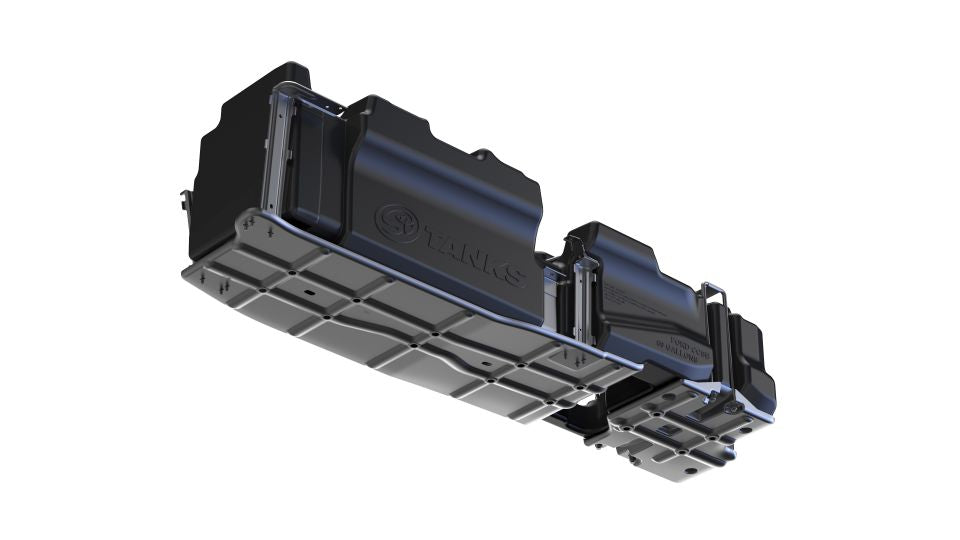

If you don't have a skid plate on your truck already, no problem! But if you do, unlike other competitor tanks, we designed the S&B Tank to allow you to reuse the factory skid plate. We also designed a smaller, factory style skid plate to cover the front of the larger S&B Tank.
AFTERMARKET LIFT PUMP
S&B Tanks work with OEM and aftermarket lift pumps. Aftermarket lift pumps (FASS & Airdog) provide more fuel to your diesel engine but face issues at a 1/4 tank fuel level. The S&B Sending Unit allows you to drive to empty with your aftermarket lift pump. Completely plug and play, with no need to modify your OEM tank or sending unit.
This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60-gallon tank with have a greater fuel reserve.
According to the Ford TSB 17-0046. If your truck has a build date prior to 3-20-17. Replace the fuel Level Sender Resistor Card Assembly with Ford part # HC3Z-9A299-N.
Specs
| Replacement Fuel Tank | |
| Compatible with Gooseneck and 5th Wheel | Yes |
| Compatible with OE Skid Plate | Yes |
| Dimensions | 76.02" x 20.69" x 19.08" |
| Drain | No |
| Embedded Fitting Thread Size | 1/2" NPT |
| Ground Clearance Compared to OE Tank | 1.75" Lower |
| Sending Unit | OEM |
| Straps Included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 60 gallons |
| Tank Type | Midship |
| Transfer Pump Ready | Yes |
| Weight (Dry) | 50 lbs |
Fitment
2017-2025 Ford F-250 6.7L Diesel
2017-2025 Ford F-350 6.7L Diesel
