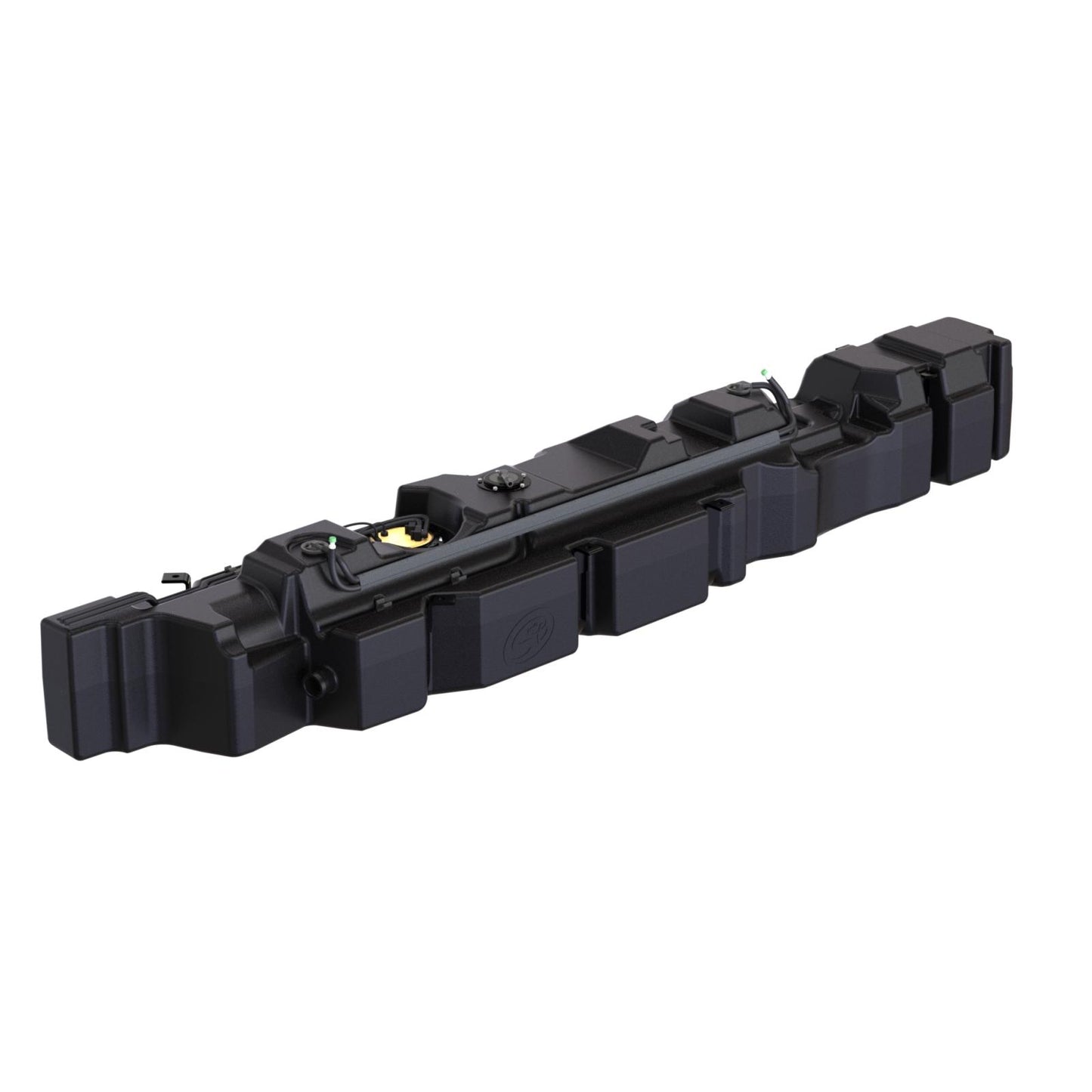

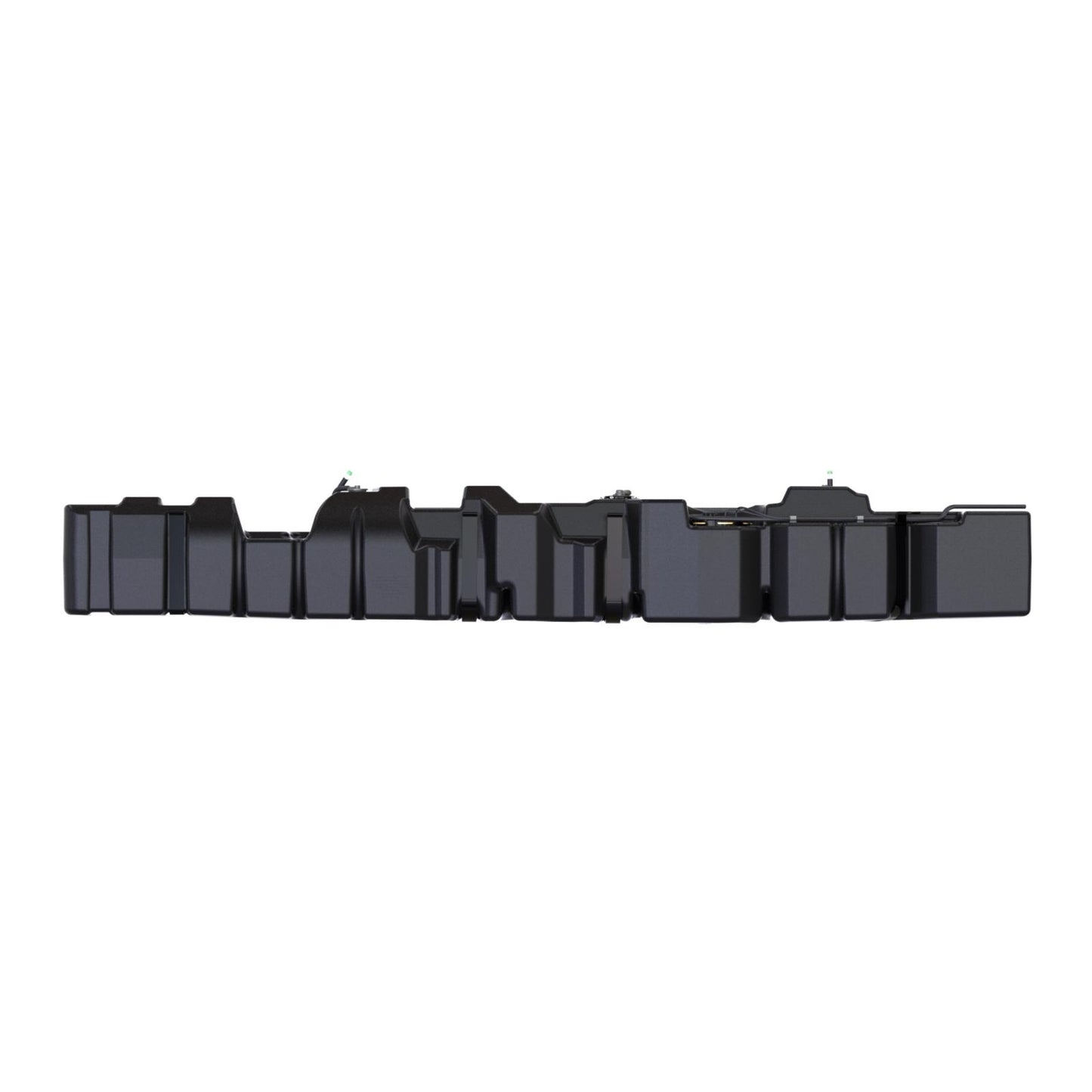

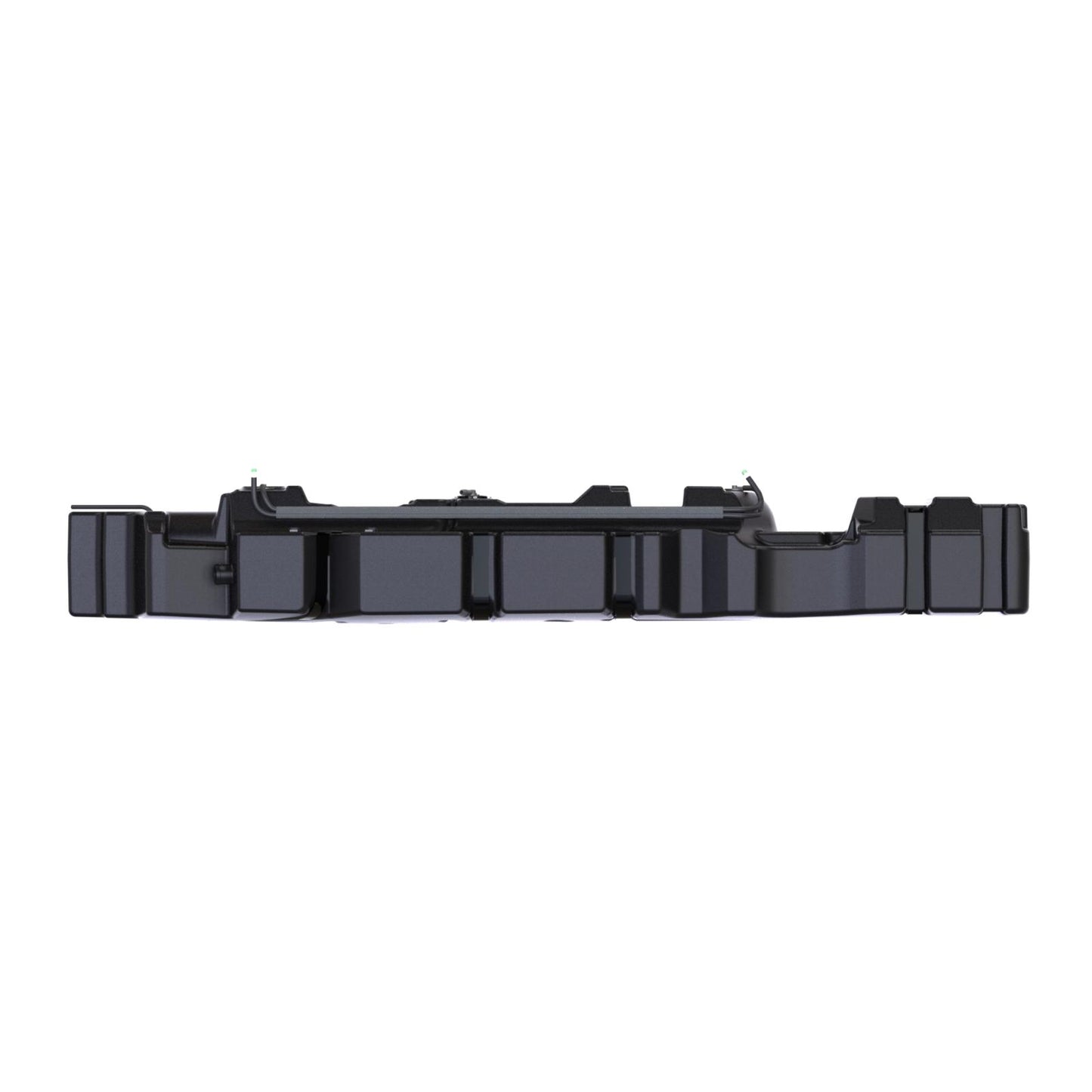

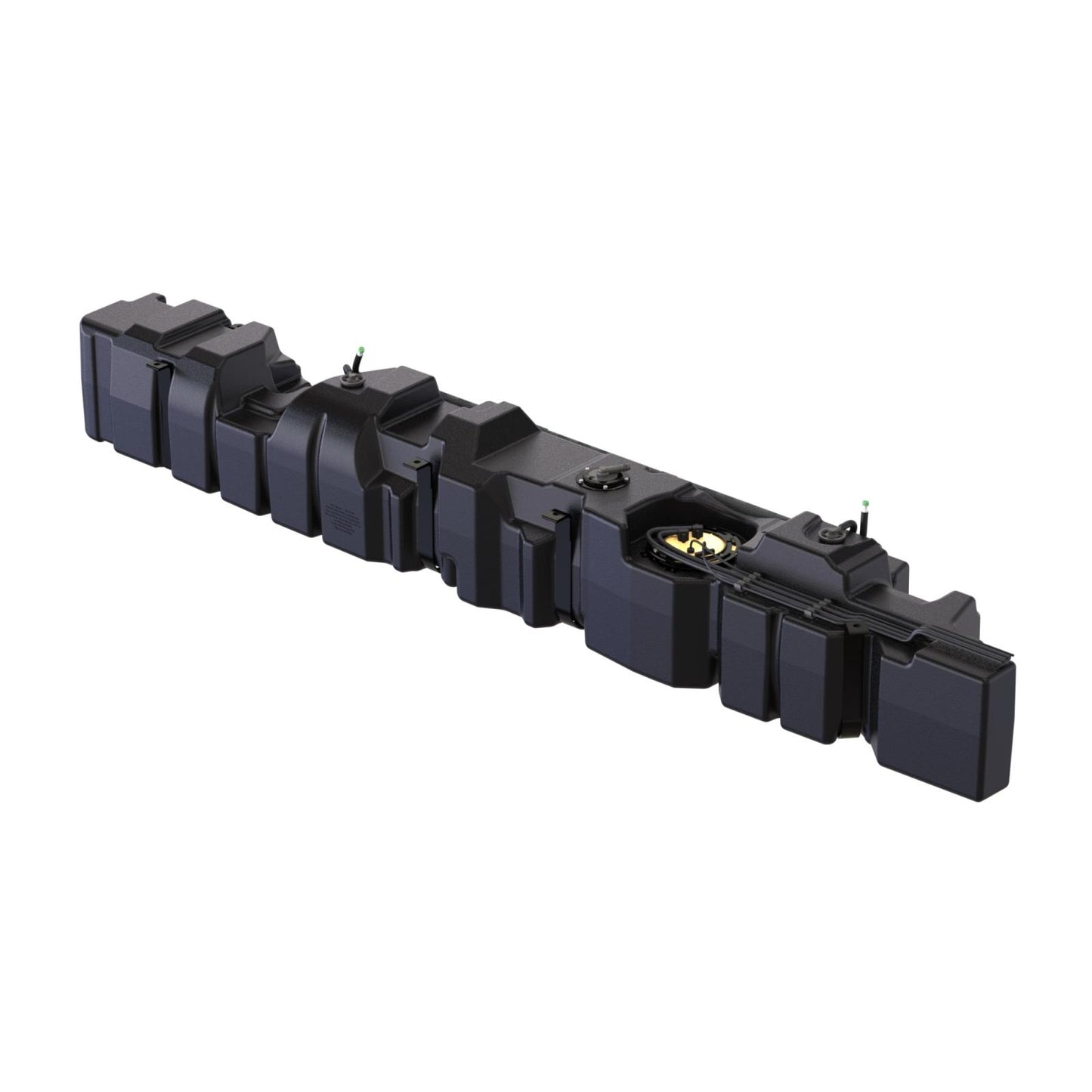

45 Gallon Replacement Fuel Tank for 2023-2024 Mercedes Sprinter 144" and 170" Wheelbase
45 Gallon Replacement Fuel Tank for 2023-2024 Mercedes Sprinter 144" and 170" Wheelbase
SKU: SKU: 10-1031
Out of stock
Product Details
Description
Get Out and Stay Out. More Time to Explore.
S&B Tanks are high-capacity direct replacements for your OEM fuel tank—designed to nearly double your fuel capacity, so you can travel further and spend less time stopping at the pump. Let us fuel your next adventure.
PLUG AND PLAY INSTALLATION
The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 40 gallon tank. The tank mounts in the stock location using the included straps. The tank occupies the space forward (13.1 inches) and rearward (3.3 inches) of the original tank.
YOUR FUEL GAUGE WORKS AS NORMAL
Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. The gauge will stay on full for the first 5-7 gallons but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (40 gallons) you will have 800 miles to empty but your vehicle will show you have 480 miles to empty.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call your Mercedes dealer to confirm if you have this option. If you don’t have it, you will need TI1349-00.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Specs
| Replacement Fuel Tank | |
| Dimensions | 98.28" x 15.41" x 14.17" |
| Drain | No |
| Ground Clearance Compared to OE Tank | 1.5" |
| OEM Capacity | 24 Gallons |
| Sending Unit | OE |
| Straps Included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 45 Gallons |
| Tank Type | Midship |
| Weight (Dry) | 45 lbs |
Fitment
2023-2025 Mercedes Sprinter 2.0L Diesel
2023-2025 Storyteller Classic Mode 4x4 3.0L Diesel
2023-2025 Storyteller Stealth Mode 4x4 3.0L Diesel
2023-2025 Storyteller Beast Mode 4x4 3.0L Diesel
2025 Winnebago Ekko 2.0L Diesel
This tank will NOT fit:
144” Dually Vans
170” Crew Vans (1 row of seats)
With plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.
