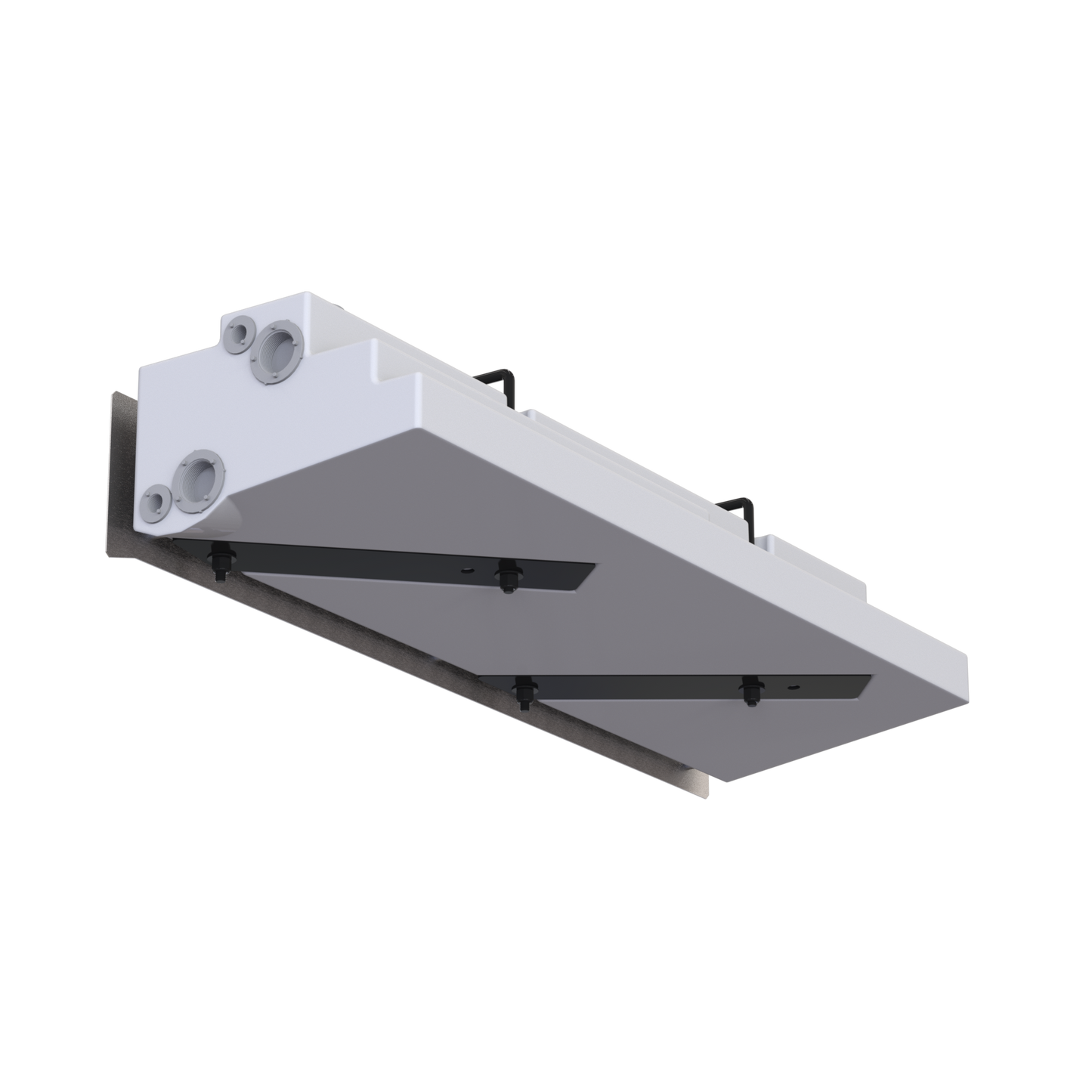

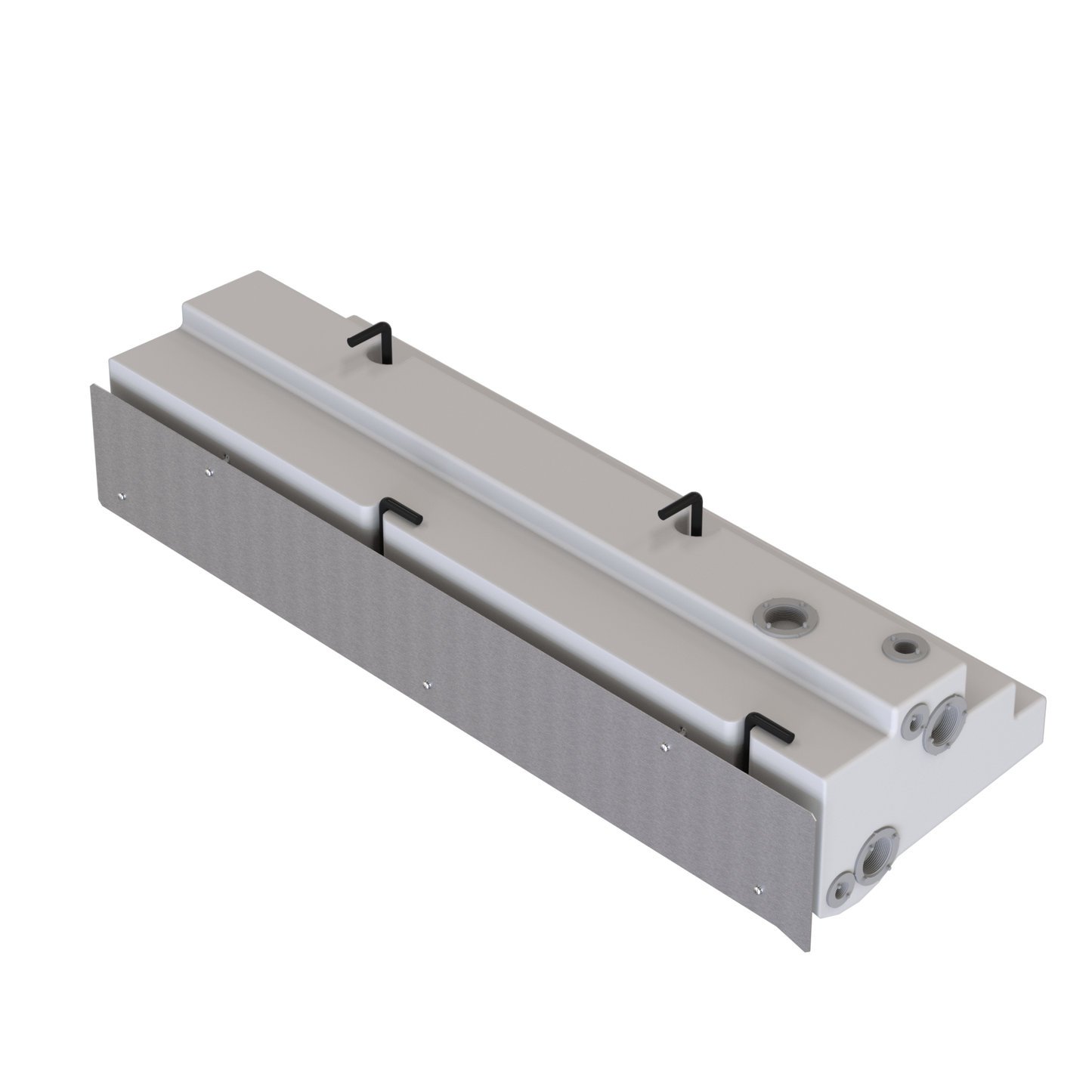

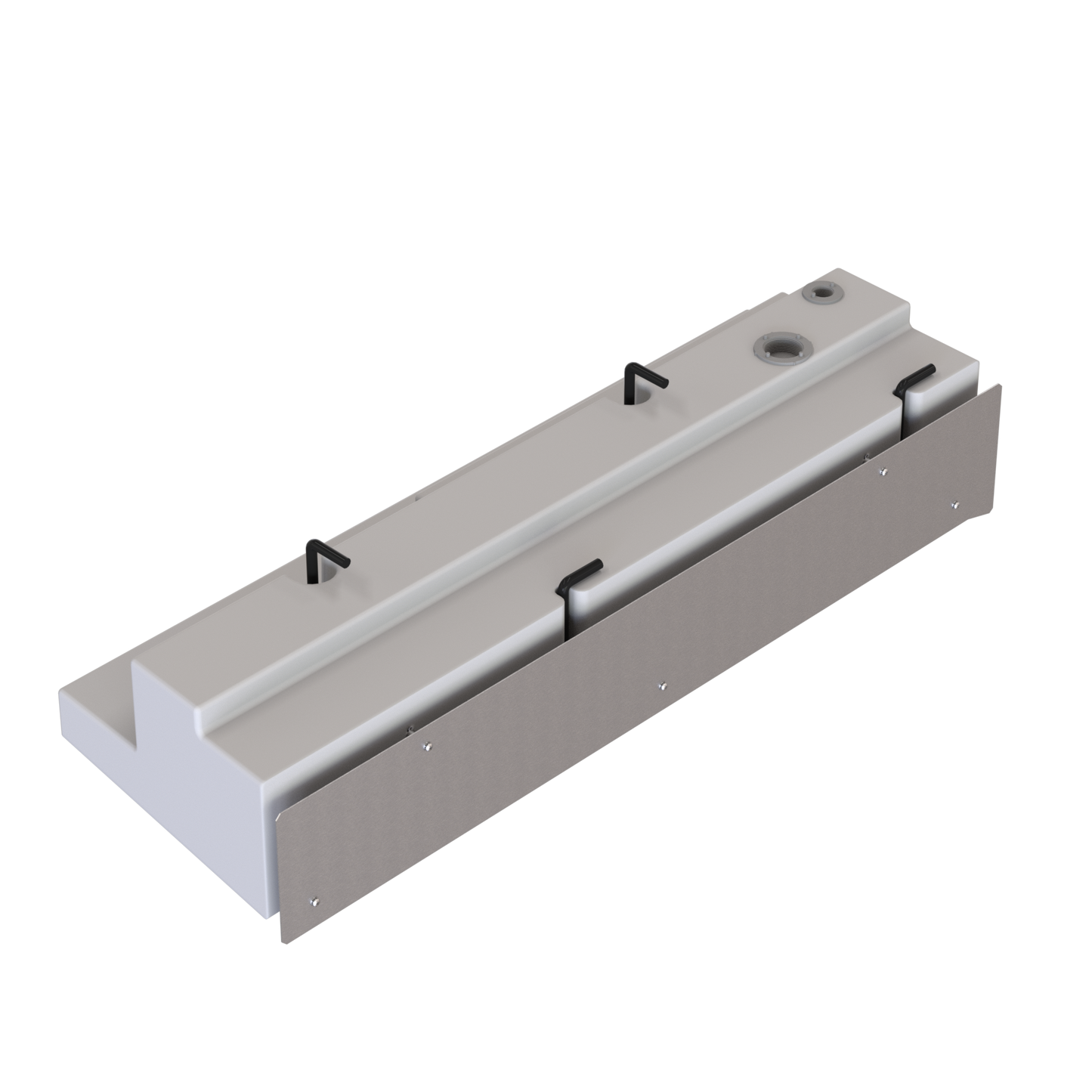

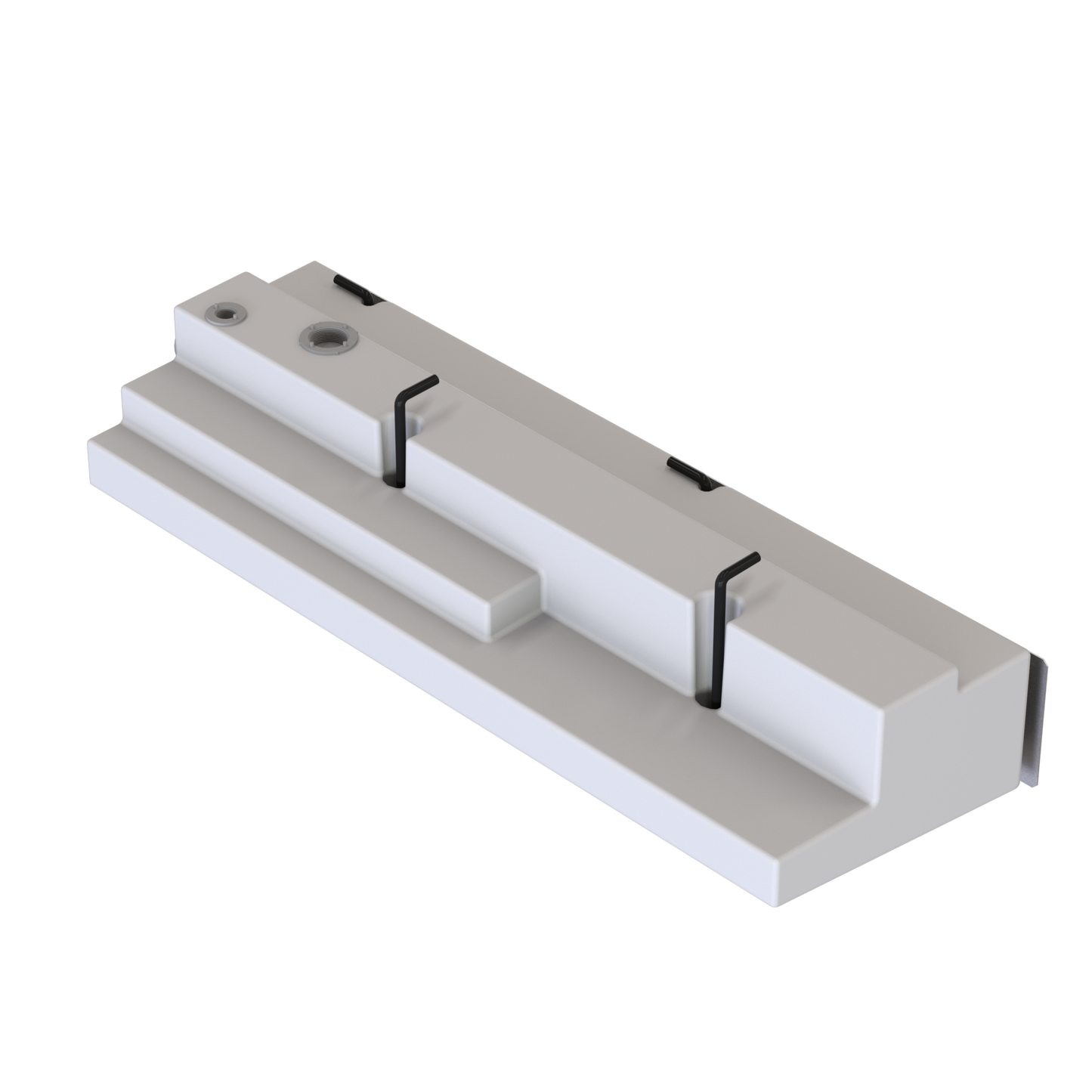

16 Gallon Passenger Side Undercarriage Fresh Water Tank 2007-24 Mercedes Sprinter 144" & 170"

Smart Storage. Safe Materials. Built for Custom Van Builds.

The S&B 16-Gallon Passenger Side Undercarriage Water Tank is engineered for builders who want to maximize onboard water capacity while maintaining interior space. Perfect for Mercedes Sprinter builds, this tank mounts securely underneath the van, providing reliable water storage without compromising your interior layout.

TEI Tested & Listed / RVIA Approved.

Note: Designed for non-pressurized systems. The tank must be vented.

16 Gallon Water Tank
KUS Level Sensor Height	6"
KUS Level Sensor Part Number	S5U-6 (Not Included)
Straps Included	YES
S&B Capacity (Approximate)	16
Tank Type	Passenger side undercarriage
TEI Listed	YES
Weight (Dry)	20 LBS
Tank Dimensions	45.33" Length x 15.5" Width x 8.31" Height
Material	BPA-Free Food Grade Polyethylene Plastic

2007-2025 Mercedes Sprinter 2.0L Diesel
2007-2025 Mercedes Sprinter 3.0L Diesel
2007-2025 Mercedes Sprinter 2.0L Diesel
2007-2025 Mercedes Sprinter 3.0L Diesel

Tank is confirmed to fit with Owl Side Steps. Will not work with AMP steps. There is .8" between the tank and body. (where the side steps mount).

Please confirm you have inboard holes for hangers before ordering. This tank will not fit gas vans or vans with a DEF tank mounted under the van or amp steps.
